Turret Punch Tool Library

Nearly 800 punch and forming tools, on the shelf and ready to run. Design a hole, slot, louver or form around a tool we already own and you skip the tooling charge and the wait for a custom punch.

Every tool below is in our Miami Gardens shop today: 618 standard shapes in 5 station sizes, plus 176 special and forming tools, from corner radii and connector cutouts to louvers, embosses, extrusions and lances. Open a section to see sizes, or the actual tool drawings.

Standard Tools Special & Forming Tools How to Use This List

618 standard tools · 176 special and forming tools · Stations .50″, 1.25″, 2.00″, 3.50″, 4.50″ · CNC turret punching on Amada equipment

Design Guide

How to Use This List

Match your feature to a tool we already have. If a hole, slot or cutout on your drawing lines up with a standard size here, it punches with existing tooling: no custom tool cost and no lead time for one.

Station is the tool size class. Smaller stations hold smaller tools. It matters to us more than to you, but it tells you roughly how large a single hit can be.

Die clearance depends on material and thickness. Where a tool has more than one clearance listed, we have dies for different gauges. We pick the right one for your material; you do not need to specify it.

Forming tools save secondary operations. Louvers, embosses, extrusions, countersinks, lances, ribs and card guides are formed right on the turret, in the same setup as the cutting, so there is no separate press operation.

Do not see it? Send the drawing anyway. Many shapes can be nibbled from standard tools, laser cut on one of our five Amada lasers, or made with a new special tool when the volume justifies it. We will tell you which is cheapest.

Standard Tools

618 Standard Punches by Shape

Sizes are punch sizes in inches. Open a shape to see every size we stock, sorted smallest to largest. Tables scroll on phones.

Round196 tools · diameters .050″ to 4.500″ · stations .50″–4.50″VIEW ▾

Tool #	Diameter	Station	Die Clearance
372	.050″	.50″	.004
373	.058″	.50″	.008
374	.062″	.50″	.008
375	.065″	.50″	.008
376	.070″	.50″	.008
377	.072″	.50″	.008
378	.078″	.50″	.008
379	.083″	.50″	.004, .008
380	.089″	.50″	.008
381	.093″	.50″	.008
382	.097″	.50″	.008
383	.098″	.50″	.008
384	.099″	.50″	.008
385	.102″	.50″	.004, .008
386	.106″	.50″	.008
387	.109″	.50″	.008
388	.111″	.50″	.008
389	.114″	.50″	.010
390	.116″	.50″	.008, .010
391	.120″	.50″	.008
392	.125″	.50″	.006, .008, .010
393	.128″	.50″	.008
394	.130″	.50″	.008
395	.132″	.50″	.008
396	.136″	.50″	.008
397	.140″	.50″	.008
398	.142″	.50″	.008
399	.144″	.50″	.008
400	.147″	.50″	.008
401	.148″	.50″	.007
402	.152″	.50″	.008
403	.156″	.50″	.008
404	.159″	.50″	.008, .010
405	.161″	.50″	.008
406	.166″	.50″	.008
407	.169″	.50″	.008
408	.172″	.50″	.008
409	.174″	.50″	.008
410	.177″	.50″	.008
411	.180″	.50″	.008
412	.182″	.50″	.008
413	.187″	.50″	.008
414	.189″	.50″	.004, .008, .010
415	.193″	.50″	.008
416	.196″	.50″	.008
417	.201″	.50″	.008, .012
418	.203″	.50″	.008
419	.208″	.50″	.008
420	.213″	.50″	.008
421	.215″	.50″	.008
422	.218″	.50″	.008
423	.222″	.50″	.008
424	.232″	.50″	.004, .008
425	.234″	.50″	.008
426	.235″	.50″	.006
427	.240″	.50″	.008
428	.243″	.50″	.008
429	.250″	.50″	.008
430	.253″	.50″	.005, .012
431	.257″	.50″	.008
432	.265″	.50″	.008
433	.272″	.50″	.008
434	.281″	.50″	.008
435	.285″	.50″	.004, .008
436	.290″	.50″	.008
437	.295″	.50″	.008
438	.299″	.50″	.008
439	.302″	.50″	.008
440	.312″	.50″	.008
441	.314″	.50″	.016
442	.316″	.50″	.020
443	.328″	.50″	.008
444	.332″	.50″	.008
445	.343″	.50″	.008
446	.344″	.50″	.008
447	.344″	.50″	.008
448	.347″	.50″	.008
449	.350″	.50″	.008
450	.359″	.50″	.008
451	.368″	.50″	.012
452	.375″	.50″	.005, .008
453	.380″	.50″	.005, .008
454	.391″	.50″	.004, .008
455	.395″	.50″	.004
456	.403″	.50″	.008
457	.406″	.50″	.008
458	.415″	.50″	.008, .018
459	.422″	.50″	.008
460	.437″	.50″	.008
461	.443″	.50″	.008
462	.447″	.50″	.006
463	.451″	.50″	.010
464	.460″	.50″	.008, .016
465	.468″	.50″	.008, .012
466	.472″	.50″	.008
467	.480″	.50″	.013
468	.485″	.50″	.008
469	.500″	.50″	.005, .008, .010
470	.512″	1.25″	.008, .014
471	.520″	1.25″	.006, .008
472	.531″	1.25″	.008
473	.540″	1.25″	.018
474	.550″	1.25″	.008
475	.554″	1.25″	.008
476	.562″	1.25″	.008
477	.575″	1.25″	.008
478	.578″	1.25″	.012
479	.593″	1.25″	.008
480	.600″	1.25″	—
481	.600″	1.25″	.008
482	.600″	1.25″	—
483	.600″	1.25″	—
484	.625″	1.25″	—
485	.627″	1.25″	.008, .012
486	.631″	1.25″	.008
487	.640″	1.25″	.008
488	.656″	1.25″	.004, .008
489	.687″	1.25″	.008
490	.703″	1.25″	.012
491	.710″	1.25″	.008
492	.725″	1.25″	.010
493	.750″	1.25″	.004, .008, .010, .018
494	.781″	1.25″	.008
495	.787″	1.25″	.008
496	.812″	1.25″	.008, .010
497	.818″	1.25″	.008
498	.830″	1.25″	.008
499	.850″	1.25″	.008, .010
500	.875″	1.25″	.008, .010
501	.878″	1.25″	.008
502	.890″	1.25″	.008
503	.905″	1.25″	.010
504	.937″	1.25″	.008, .010
505	.969″	1.25″	.008
506	1.000″	1.25″	.008, .010, .016
507	1.010″	1.25″	.008
508	1.032″	1.25″	.008
509	1.044″	1.25″	.006
510	1.062″	1.25″	.008
511	1.074″	1.25″	.006
512	1.105″	1.25″	.008
513	1.125″	1.25″	.008, .018
514	1.156″	1.25″	.008, .010, .020
515	1.178″	1.25″	.008
516	1.187″	1.25″	.004, .008
517	1.203″	1.25″	.003, .008, .018
518	1.210″	1.25″	.010
519	1.250″	1.25″	.008, .010, .016
520	1.252″	2.00″	.006
521	1.281″	2.00″	.008
522	1.312″	2.00″	.010
523	1.343″	2.00″	.008
524	1.365″	2.00″	.005
525	1.375″	2.00″	.004, .008
526	1.387″	2.00″	.012
527	1.413″	2.00″	.004
528	1.437″	2.00″	.012
529	1.500″	2.00″	.010, .016
530	1.562″	2.00″	.010
531	1.610″	2.00″	.008
532	1.625″	2.00″	.010
533	1.688″	2.00″	.008
534	1.750″	2.00″	.010
535	1.800″	2.00″	.008
536	1.812″	2.00″	.008
537	1.875″	2.00″	.010
538	1.937″	2.00″	.008
539	2.000″	2.00″	.003, .008
540	2.012″	3.50″	.008, .016
541	2.094″	3.50″	.010
542	2.125″	3.50″	.010
543	2.156″	3.50″	.008
544	2.190″	3.50″	.010
545	2.250″	3.50″	.008, .012
546	2.310″	3.50″	.010
547	2.375″	3.50″	.025
548	2.500″	3.50″	.008, .016
549	2.590″	3.50″	.008
550	2.750″	3.50″	.008
551	2.812″	3.50″	.010
552	2.862″	3.50″	.008
553	3.000″	3.50″	.008
554	3.150″	3.50″	.008
555	3.188″	3.50″	.021
556	3.375″	3.50″	.010
557	3.500″	3.50″	.008
558	3.609″	4.50″	.016
559	3.609″	4.50″	.016
560	3.609″	4.50″	.016
561	3.609″	4.50″	—
562	3.750″	4.50″	.008
563	4.112″	4.50″	.008
564	4.125″	4.50″	.010
565	4.380″	4.50″	.008
566	4.444″	4.50″	.004
567	4.500″	4.50″	.008

Obround (Slot)182 tools · smallest .030″ · stations .50″–4.50″VIEW ▾

Tool #	Width × Length	Station	Angles	Die Clearance
25	.030″ × 1.125″	1.25″	0°, 90°	.006
26	.035″ × .560″	1.25″	0°, 90°	.004
27	.035″ × .560″	1.25″	0°, 90°	.008
28	.040″ × 1.125″	1.25″	0°, 90°	.006
29	.047″ × .312″	.50″	0°, 90°	.004, .008
30	.047″ × .312″	.50″	0°, 90°	.008
31	.059″ × 1.125″	1.25″	0°, 90°	.006
32	.062″ × .190″	.50″	0°, 90°	.008
33	.062″ × .190″	.50″	0°, 90°	.004
34	.062″ × .500″	.50″	0°, 90°	.004, .008, .010
35	.062″ × .500″	.50″	0°, 90°	.008
36	.062″ × .500″	.50″	0°, 90°	.008
37	.062″ × .750″	1.25″	0°, 90°	.008
38	.062″ × .875″	1.25″	0°, 45°, 90°	.008
39	.062″ × .875″	1.25″	0°, 90°, 135°	.008
40	.062″ × 1.250″	1.25″	0°, 90°	.008
41	.064″ × .280″	.50″	0°, 90°	.008
42	.068″ × .424″	.50″	0°, 90°	.008
43	.071″ × 1.125″	1.25″	0°, 90°	.006
44	.078″ × .437″	.50″	0°, 90°	.006
45	.080″ × .630″	1.25″	0°, 90°	.008
46	.093″ × .188″	.50″	0°, 90°	.004, .008
47	.093″ × .500″	.50″	0°, 90°	.004, .008
48	.093″ × .500″	.50″	0°, 90°	.008
49	.093″ × .750″	1.25″	0°, 90°	.006, .012
50	.094″ × .172″	.50″	0°, 90°	.004, .008
51	.098″ × .250″	.50″	0°, 90°	.008
52	.100″ × .310″	.50″	0°, 90°	.008
53	.100″ × .310″	.50″	0°, 90°	.008
54	.100″ × 1.500″	2.00″	0°, 90°	.008
55	.110″ × .210″	.50″	0°, 90°	.008
56	.110″ × .840″	1.25″	0°, 30°, 90°, 150°	.012
57	.110″ × .840″	1.25″	0°, 30°, 90°, 150°	.012
58	.111″ × .154″	.50″	0°, 90°	.008
59	.118″ × .236″	.50″	0°, 90°	.006
60	.118″ × .905″	1.25″	0°, 90°	.012
61	.125″ × .175″	.50″	0°, 90°, 180°, 270°	.004, .008
62	.125″ × .218″	.50″	0°, 90°	.008
63	.125″ × .250″	.50″	0°, 90°	.008
64	.125″ × .375″	.50″	0°, 90°	.008
65	.125″ × .375″	.50″	0°, 90°	.008
66	.125″ × .500″	.50″	0°, 90°	.008
67	.125″ × .500″	.50″	0°, 90°	.008
68	.125″ × .750″	1.25″	0°, 90°	.008, .016
69	.125″ × .800″	1.25″	0°, 90°	.008
70	.125″ × .813″	1.25″	0°, 90°	.008
71	.125″ × .835″	1.25″	0°, 90°	.008
72	.125″ × 1.000″	1.25″	0°, 90°	.008
73	.125″ × 1.000″	1.25″	0°, 90°	.008
74	.125″ × 1.125″	1.25″	0°, 90°	.008
75	.125″ × 1.250″	1.25″	0°, 90°	.008
76	.125″ × 1.378″	2.00″	0°, 90°	.008
77	.125″ × 1.500″	2.00″	0°, 90°	.008
78	.125″ × 2.000″	2.00″	0°, 90°	.004, .008
79	.128″ × .145″	.50″	0°, 90°	.008
80	.128″ × .156″	.50″	0°, 90°	.008
81	.128″ × .188″	.50″	0°, 90°	.008
82	.128″ × .250″	.50″	0°, 90°	.008
83	.129″ × .440″	.50″	0°, 90°	.008
84	.130″ × .180″	.50″	0°, 90°	.008
85	.130″ × .307″	.50″	0°, 90°	.008
86	.132″ × .310″	.50″	0°, 90°	.008
87	.136″ × .180″	.50″	0°, 90°	.002, .008
88	.137″ × 1.000″	1.25″	0°, 90°	.008
89	.140″ × .244″	.50″	0°, 90°	.002, .008
90	.140″ × .280″	.50″	0°, 90°	.004, .008
91	.140″ × .310″	.50″	0°, 90°	.004, .008
92	.141″ × .203″	.50″	0°, 90°	.008
93	.145″ × .463″	.50″	0°, 90°	.008
94	.156″ × .185″	.50″	0°, 90°	.008
95	.156″ × .203″	.50″	0°, 90°	.008
96	.156″ × .218″	.50″	0°, 90°	.008
97	.156″ × .230″	.50″	0°, 90°	.008
98	.156″ × .250″	.50″	0°, 90°	.008
99	.156″ × .312″	.50″	0°, 90°	.008
100	.156″ × .312″	.50″	0°, 90°	.008
101	.156″ × .375″	.50″	0°, 90°	.008
102	.156″ × .630″	.50″	0°, 90°	.008
103	.156″ × .700″	.50″	0°, 90°	.008
104	.156″ × 1.000″	1.25″	0°, 90°	.008
105	.157″ × .472″	.50″	0°, 90°	.008
106	.166″ × .188″	.50″	0°, 90°	.008
107	.169″ × .220″	.50″	0°, 90°	.010
108	.169″ × .325″	.50″	0°, 90°	.008
109	.172″ × .250″	.50″	0°, 90°	.008, .010
110	.172″ × .612″	1.25″	0°, 90°	.020
111	.177″ × .312″	.50″	0°, 90°	.008
112	.177″ × .312″	.50″	0°, 90°	.008
113	.177″ × .354″	.50″	0°, 90°	.008
114	.180″ × .330″	.50″	0°, 90°	.008
115	.181″ × .500″	.50″	0°, 90°	.004
116	.187″ × .250″	.50″	0°, 90°	.008, .020
117	.187″ × .312″	.50″	0°, 90°	.008
118	.187″ × .312″	.50″	0°, 90°	.008
119	.187″ × .312″	.50″	0°, 90°	.008
120	.187″ × .375″	.50″	0°, 90°	.008
121	.187″ × .375″	.50″	0°, 90°	.008
122	.187″ × .468″	.50″	0°, 90°	.004, .008
123	.187″ × .500″	.50″	0°, 90°	.008
124	.187″ × .500″	.50″	0°, 90°	.008
125	.187″ × .500″	.50″	0°, 90°	.008
126	.187″ × .750″	1.25″	0°, 90°	.006
127	.187″ × .875″	1.25″	0°, 90°	.008
128	.187″ × 1.000″	1.25″	0°, 90°	.008
129	.187″ × 1.000″	1.25″	0°, 90°	.008
130	.187″ × 1.180″	1.25″	0°, 90°	.008
131	.187″ × 2.500″	3.50″	0°, 90°, 180°, 270°	.008
132	.190″ × .281″	.50″	0°, 90°	.008
133	.196″ × .393″	.50″	0°, 90°	.010
134	.196″ × .413″	.50″	0°, 90°	.006, .010
135	.196″ × .500″	.50″	0°, 90°	.008
136	.197″ × .315″	.50″	0°, 90°	.008, .012
137	.197″ × .572″	1.25″	0°, 90°	.010
138	.197″ × 1.125″	1.25″	0°, 90°	.008
139	.198″ × .750″	1.25″	0°, 90°	.008
140	.203″ × .375″	.50″	0°, 90°	.008, .012
141	.203″ × .437″	.50″	0°, 90°	.008
142	.203″ × 1.000″	1.25″	0°, 90°	.008
143	.213″ × 1.000″	1.25″	0°, 90°	.008
144	.216″ × .875″	1.25″	0°, 90°	.018
145	.218″ × .278″	.50″	0°, 90°	.008
146	.218″ × .300″	.50″	0°, 90°	.008, .012
147	.218″ × .375″	.50″	0°, 90°	.008
148	.218″ × 1.000″	1.25″	0°, 90°	.008
149	.219″ × .344″	.50″	0°, 90°	.008
150	.225″ × .625″	1.25″	0°, 90°	.008
151	.230″ × 2.000″	2.00″	0°, 90°	.008, .012
152	.236″ × .275″	.50″	0°, 90°	.006
153	.236″ × .314″	.50″	0°, 90°	.008
154	.236″ × .500″	.50″	0°, 90°	.008
155	.236″ × .984″	1.25″	0°, 90°	.008
156	.250″ × .375″	.50″	0°, 90°	.008
157	.250″ × .375″	.50″	0°, 90°	.008
158	.250″ × .420″	.50″	0°, 90°	.010
159	.250″ × .500″	.50″	0°, 90°	.008, .010
160	.250″ × .500″	1.25″	0°, 90°	.008, .020
161	.250″ × .750″	1.25″	0°, 90°	.010, .016
162	.250″ × 1.000″	1.25″	0°, 90°	.008
163	.250″ × 1.000″	1.25″	0°, 90°	.008
164	.250″ × 1.250″	1.25″	0°, 90°	.008, .018
165	.252″ × .338″	.50″	0°, 90°	.010
166	.256″ × .925″	1.25″	0°, 90°	.008
167	.256″ × 1.112″	1.25″	0°, 90°	.008
168	.265″ × .380″	.50″	0°, 90°	.008
169	.265″ × .875″	1.25″	0°, 90°	.018
170	.270″ × .440″	.50″	0°, 90°	.008
171	.270″ × .500″	.50″	0°, 90°	.006
172	.270″ × .750″	1.25″	0°, 90°	.008, .012
173	.270″ × 1.625″	2.00″	0°, 90°	.010, .018
174	.278″ × .406″	.50″	0°, 90°	.010
175	.281″ × .380″	.50″	0°, 90°	.006
176	.281″ × .484″	.50″	0°, 90°	.010
177	.281″ × .484″	.50″	0°, 90°	.010
178	.281″ × 1.000″	1.25″	0°, 90°	.008, .018
179	.295″ × 1.000″	1.25″	0°, 90°	.008, .012
180	.312″ × .385″	.50″	0°, 90°	.008, .012
181	.312″ × .500″	.50″	0°, 90°	.008, .016
182	.312″ × .500″	.50″	0°, 90°	.008
183	.343″ × .500″	1.25″	0°, 90°	.008, .018
184	.356″ × 1.000″	1.25″	0°, 90°	.008, .012
185	.375″ × .500″	1.25″	0°, 90°	.010, .020
186	.375″ × .750″	1.25″	0°, 90°	.008
187	.375″ × .750″	1.25″	0°, 90°	.008, .016
188	.375″ × .750″	1.25″	0°, 90°	.008
189	.400″ × .750″	1.25″	0°, 90°	.008
190	.406″ × .750″	1.25″	0°, 90°	.008, .018
191	.440″ × 1.000″	1.25″	0°, 90°	.010
192	.500″ × .770″	1.25″	0°, 90°	.008
193	.500″ × 1.000″	1.25″	0°, 90°	.008, .018
194	.510″ × .835″	1.25″	0°, 90°	.010
195	.512″ × 1.102″	1.25″	0°, 90°	.008
196	.550″ × 1.000″	1.25″	0°, 90°	.015
197	.560″ × .750″	1.25″	0°, 90°	.008
198	.600″ × 2.828″	3.50″	0°, 90°, 180°, 270°	.008, .012
199	.625″ × 1.250″	1.25″	0°, 90°	.006
200	.630″ × 2.000″	2.00″	0°, 90°	.004, .008
201	.656″ × 3.000″	3.50″	0°, 90°	.008, .012
202	.730″ × 1.970″	2.00″	0°, 90°	.004
203	.760″ × 1.800″	2.00″	0°, 90°	.010
204	.875″ × 1.510″	2.00″	0°, 90°	.008
205	1.000″ × 1.250″	1.25″	0°, 90°	.010
206	1.500″ × 4.500″	4.50″	0°, 90°	.008

Rectangle165 tools · smallest .040″ · stations .50″–4.50″VIEW ▾

Tool #	Width × Length	Station	Angles	Die Clearance
207	.040″ × .100″	.50″	0°, 90°	.004, .008
208	.040″ × .207″	.50″	0°, 90°	.008
209	.040″ × .250″	.50″	0°, 90°	.004, .008
210	.040″ × .250″	.50″	0°, 90°	.004, .008
211	.040″ × .312″	.50″	0°, 90°	—
212	.050″ × .186″	.50″	0°, 90°	.004, .008
213	.050″ × .312″	.50″	0°, 90°	—
214	.050″ × .380″	.50″	0°, 90°	.008
215	.054″ × .250″	.50″	0°, 90°	.008
216	.054″ × .250″	.50″	0°, 90°	.004, .008
217	.054″ × .250″	.50″	0°, 90°	.004, .008
218	.054″ × .375″	.50″	0°, 90°	.004, .008
219	.060″ × .394″	.50″	0°, 90°	.004, .008
220	.060″ × .394″	.50″	0°, 90°	.008
221	.060″ × .394″	.50″	0°, 90°	.008, .010
222	.063″ × .250″	.50″	0°, 90°	.008
223	.063″ × .250″	.50″	0°, 90°	.008
224	.063″ × .500″	1.25″	0°, 90°	.008, .010
225	.063″ × .500″	1.25″	0°, 90°	.004, .008
226	.063″ × .500″	1.25″	0°, 90°	.004
227	.063″ × .500″	1.25″	0°, 45°, 90°, 135°	.004, .010
228	.063″ × .500″	1.25″	0°, 45°, 90°, 135°	.008, .018
229	.070″ × .115″	.50″	0°, 90°	.004
230	.070″ × .115″	.50″	0°, 90°	.004, .008
231	.070″ × .375″	.50″	0°, 90°	.008
232	.070″ × .375″	.50″	0°, 90°	.004
233	.078″ × .500″	1.25″	0°, 90°	.012
234	.079″ × .394″	.50″	0°, 90°	.008
235	.079″ × 1.000″	1.25″	0°, 90°	.008
236	.079″ × 1.000″	1.25″	0°, 90°	.008
237	.080″ × .256″	.50″	0°, 90°	.008
238	.087″ × .610″	1.25″	0°, 90°	.008, .010
239	.093″ × .500″	1.25″	0°, 90°	.008
240	.093″ × .500″	1.25″	0°, 90°	.008
241	.093″ × .500″	1.25″	0°, 90°	.008
242	.093″ × .500″	1.25″	0°, 90°	.008, .018
243	.093″ × .750″	1.25″	0°, 90°	.004, .008
244	.093″ × .750″	1.25″	0°, 90°	.004, .008
245	.093″ × .750″	1.25″	0°, 90°	.008
246	.093″ × .750″	1.25″	0°, 90°	.008, .015
247	.093″ × 1.125″	1.25″	0°, 90°	.008
248	.100″ × .140″	.50″	0°, 90°	.008
249	.100″ × .216″	.50″	0°, 90°	.004
250	.100″ × .250″	.50″	0°, 90°	.008
251	.100″ × .273″	.50″	0°, 90°	.010
252	.100″ × .273″	.50″	0°, 90°	.010
253	.100″ × .300″	.50″	0°, 90°	.008
254	.100″ × .390″	.50″	0°, 90°	.012
255	.100″ × .610″	1.25″	0°, 90°	.010
256	.100″ × .992″	1.25″	0°, 90°	.018
257	.100″ × 1.000″	1.25″	0°, 90°	.008
258	.100″ × 1.000″	1.25″	0°, 45°, 90°, 135°	.004, .018
259	.100″ × 1.000″	1.25″	0°, 45°, 90°, 135°	.008, .010
260	.100″ × 1.000″	1.25″	0°, 90°	.008
261	.100″ × 1.750″	2.00″	0°, 90°	.008
262	.100″ × 1.750″	2.00″	0°, 90°	.008
263	.100″ × 1.750″	2.00″	0°, 90°	.004, .008, .010, .012
264	.100″ × 1.750″	2.00″	0°, 90°	.008, .010, .012
265	.100″ × 1.875″	2.00″	0°, 90°	.008
266	.100″ × 1.875″	2.00″	0°, 90°	.008
267	.100″ × 1.875″	2.00″	0°, 90°	.004, .008
268	.100″ × 1.875″	2.00″	0°, 90°	.010
269	.106″ × .240″	.50″	0°, 90°	.004, .008
270	.110″ × .420″	.50″	0°, 90°	.008
271	.115″ × .265″	.50″	0°, 90°	.008
272	.125″ × .180″	.50″	0°, 90°	.008
273	.125″ × .180″	.50″	0°, 90°	.008, .018
274	.125″ × .250″	.50″	0°, 90°	.008
275	.125″ × .250″	.50″	0°, 90°	.008, .012
276	.125″ × .312″	.50″	0°, 90°	.008
277	.125″ × .312″	.50″	0°, 90°	.008
278	.125″ × .500″	1.25″	0°, 90°	.008
279	.125″ × .500″	1.25″	0°, 90°	.008, .016
280	.125″ × .750″	1.25″	0°, 90°	.008, .012
281	.125″ × 1.000″	1.25″	0°, 90°	.004
282	.125″ × 1.000″	1.25″	0°, 90°	.008, .010
283	.125″ × 1.000″	1.25″	0°, 90°	.008, .010
284	.125″ × 1.125″	1.25″	0°, 90°	.008
285	.125″ × 1.180″	1.25″	0°, 90°	.004, .008
286	.125″ × 1.180″	1.25″	0°, 90°	.004, .008
287	.125″ × 1.180″	1.25″	0°, 90°	.008
288	.125″ × 1.180″	1.25″	0°, 90°	.016
289	.125″ × 3.000″	3.50″	0°, 90°	.004, .008
290	.125″ × 3.000″	3.50″	0°, 90°	.004, .008
291	.125″ × 3.000″	3.50″	0°, 90°	.008, .012
292	.125″ × 3.000″	3.50″	0°, 90°	.008, .018
293	.140″ × .280″	.50″	0°, 90°	.008
294	.140″ × .430″	.50″	0°, 90°	.008
295	.140″ × .500″	1.25″	0°, 90°	.004, .008, .016
296	.140″ × 1.000″	1.25″	0°, 90°	.004, .008
297	.150″ × .500″	1.25″	0°, 90°	.004, .008
298	.156″ × .325″	.50″	0°, 90°	.008
299	.156″ × 1.750″	2.00″	0°, 90°	.010, .018
300	.156″ × 1.750″	2.00″	0°, 90°	.010, .018
301	.156″ × 4.000″	4.50″	0°, 90°	.008, .016
302	.167″ × .470″	.50″	0°, 90°	.010
303	.187″ × .500″	1.25″	0°, 90°	.004, .008
304	.187″ × .500″	1.25″	0°, 90°	.008
305	.187″ × .625″	1.25″	0°, 90°	.008, .018
306	.187″ × .650″	1.25″	0°, 90°	.008
307	.187″ × .875″	1.25″	0°, 90°	.008, .018
308	.187″ × 1.250″	2.00″	0°, 90°	.008, .018
309	.189″ × .250″	.50″	0°, 90°	.008
310	.197″ × .472″	.50″	0°, 90°	.008, .016
311	.197″ × .797″	1.25″	0°, 90°	.008, .018
312	.200″ × .700″	1.25″	0°, 90°	.008
313	.218″ × 1.000″	1.25″	0°, 90°	.008
314	.220″ × .278″	.50″	0°, 90°	.015
315	.238″ × .590″	1.25″	0°, 90°	.030
316	.250″ × .420″	.50″	0°, 90°	.008
317	.250″ × .500″	1.25″	0°, 90°	.008
318	.250″ × .500″	1.25″	0°, 90°	.012
319	.250″ × 1.000″	1.25″	0°, 90°	.008
320	.250″ × 1.000″	1.25″	0°, 90°	.008, .010
321	.250″ × 1.500″	2.00″	0°, 90°	.008
322	.250″ × 1.500″	2.00″	0°, 90°	.008
323	.250″ × 1.500″	2.00″	0°, 90°	.008, .018, .025
324	.250″ × 3.000″	3.50″	0°, 90°	.004, .010, .012
325	.250″ × 3.000″	3.50″	0°, 90°	.010, .012, .018
326	.290″ × .341″	.50″	0°, 90°, 270°, 180°	.006
327	.294″ × .894″	1.25″	0°, 90°	.008
328	.308″ × .803″	1.25″	0°, 90°	.004, .008
329	.340″ × .520″	1.25″	0°, 90°, 180°, 270°	.008
330	.350″ × .450″	1.25″	0°, 90°	.008
331	.356″ × .550″	1.25″	0°, 90°	.010
332	.375″ × .875″	1.25″	0°, 90°	.008
333	.375″ × 1.000″	1.25″	0°, 90°	.008
334	.375″ × 1.327″	2.00″	0°, 90°	.008
335	.375″ × 1.625″	2.00″	0°, 90°	.006
336	.380″ × .420″	1.25″	0°, 90°	.008
337	.390″ × .590″	1.25″	0°, 90°	—
338	.394″ × .500″	1.25″	0°, 90°	.008
339	.400″ × 1.000″	1.25″	0°, 90°	.008
340	.417″ × 1.216″	2.00″	0°, 90°	.008
341	.420″ × 2.100″	3.50″	0°, 90°, 180°, 270°	.008
342	.440″ × .940″	1.25″	0°, 90°	.012
343	.445″ × .779″	1.25″	0°, 90°	.002
344	.468″ × .750″	1.25″	0°, 90°	.008
345	.470″ × .590″	1.25″	0°, 90°	.008
346	.480″ × .911″	1.25″	0°, 90°	.008
347	.486″ × 1.214″	2.00″	0°, 90°	.014
348	.488″ × 1.216″	2.00″	0°, 90°	.012
349	.494″ × .832″	1.25″	0°, 90°	.004, .008
350	.500″ × 1.000″	1.25″	0°, 90°	.008
351	.500″ × 1.000″	1.25″	0°, 90°	.010
352	.500″ × 1.500″	2.00″	0°, 90°	.004, .008, .012
353	.520″ × .670″	1.25″	0°, 90°	.008
354	.520″ × 2.250″	3.50″	0°, 90°	.008
355	.540″ × 1.175″	2.00″	0°, 90°	.010
356	.570″ × .800″	1.25″	0°, 30°, 90°	.012
357	.570″ × 1.054″	1.25″	0°, 90°, 150°	.012
358	.583″ × .655″	1.25″	0°, 90°	.004, .008
359	.583″ × .825″	1.25″	0°, 90°	.004, .008
360	.640″ × .670″	1.25″	0°, 90°	.008
361	.650″ × .760″	1.25″	0°, 90°	.012
362	.681″ × .803″	1.25″	0°, 90°	.004, .008
363	.750″ × 1.000″	1.25″	0°, 90°	.004, .008
364	.750″ × 1.000″	2.00″	0°, 90°	.008
365	.750″ × 3.250″	3.50″	0°, 90°	.004, .008
366	.976″ × 1.232″	2.00″	0°, 90°	.008
367	.976″ × 2.889″	3.50″	0°, 90°	.008
368	.992″ × 1.017″	2.00″	0°, 90°	.008
369	1.000″ × 1.250″	2.00″	0°, 90°	.012
370	1.141″ × 2.780″	3.50″	0°, 90°	.012
371	1.625″ × 4.016″	4.50″	0°, 90°	.012

Square34 tools · smallest .087″ · stations .50″–3.50″VIEW ▾

Tool #	Size	Station	Angles	Die Clearance
585	.087″	.50″	0°, 45°	.008
586	.125″	.50″	0°, 45°	.008, .012
587	.140″	.50″	0°, 45°	.008
588	.172″	.50″	0°, 45°	.008, .018
589	.188″	.50″	0°, 45°	.004, .008
590	.196″	.50″	0°, 45°	.008
591	.200″	.50″	0°, 45°	.004, .008
592	.218″	.50″	0°, 45°	.008
593	.236″	.50″	0°, 45°	.006, .008, .014, .016
594	.250″	.50″	0°, 45°	.008
595	.250″	.50″	0°, 45°	.008, .012
596	.250″	.50″	0°, 45°	.008, .012
597	.260″	.50″	0°, 45°	.008
598	.281″	.50″	0°, 45°	.008
599	.312″	.50″	0°, 90°	.008, .016
600	.375″	1.25″	0°, 45°	.004, .008
601	.375″	1.25″	0°, 45°	.008
602	.500″	1.25″	0°, 45°	.004
603	.500″	1.25″	0°, 45°	.008
604	.500″	1.25″	0°, 45°	.008, .015
605	.531″	1.25″	0°, 45°	.008
606	.625″	1.25″	0°, 45°	.008, .018
607	.643″	1.25″	0°, 90°	.008
608	.700″	1.25″	0°, 45°	.004, .008
609	.750″	1.25″	0°, 45°	.008, .010, .018, .020
610	.875″	1.25″	0°, 45°	.008
611	.875″	1.25″	0°, 45°	.008, .014
612	1.000″	2.00″	0°, 45°	.008
613	1.000″	2.00″	0°, 45°	.010
614	1.200″	2.00″	0°, 45°	.006, .018
615	1.250″	2.00″	0°, 45°	.010
616	1.500″	3.50″	0°, 45°	.008
617	2.000″	3.50″	0°, 45°	.008
618	2.000″	3.50″	0°, 45°	.008, .018

Double-D24 tools · smallest .125″ · stations .50″–2.00″VIEW ▾

Tool #	Across Flats × Diameter	Station	Angles	Die Clearance
1	.125″ × .173″	.50″	0°, 90°	.004, .008
2	.206″ × .250″	.50″	0°, 90°	.004, .008
3	.213″ × .257″	1.25″	0°, 90°	.008
4	.260″ × .310″	.50″	0°, 90°	.008, .010
5	.316″ × .385″	.50″	0°, 90°, 180°, 270°	.008
6	.335″ × .375″	.50″	0°, 90°	.008, .018
7	.380″ × .443″	.50″	0°, 90°	.010
8	.380″ × .471″	.50″	0°, 90°	.008, .010
9	.424″ × .476″	1.25″	0°, 90°	.012
10	.456″ × .500″	.50″	0°, 90°	.008
11	.531″ × .562″	1.25″	0°, 90°	.008
12	.550″ × .625″	1.25″	0°, 90°	.008
13	.570″ × .625″	1.25″	0°, 90°	.008
14	.575″ × .640″	1.25″	0°, 90°	.008
15	.584″ × .638″	1.25″	0°, 90°	.008
16	.630″ × .750″	1.25″	0°, 90°	.008
17	.635″ × .765″	1.25″	0°, 90°	.008
18	.670″ × .750″	1.25″	0°, 90°	.008
19	.681″ × .764″	1.25″	0°, 90°	.004
20	.750″ × .800″	1.25″	0°, 90°	.008
21	.770″ × .875″	1.25″	0°, 90°	.008
22	.770″ × .875″	1.25″	0°, 90°	.008
23	.978″ × 1.035″	1.25″	0°, 90°	.010
24	1.125″ × 1.340″	2.00″	0°, 90°	.008

Single-D17 tools · smallest .226″ · stations .50″–2.00″VIEW ▾

Tool #	Across Flat × Diameter	Station	Angles	Die Clearance
568	.226″ × .250″	1.25″	0°, 90°, 180°, 270°	.008
569	.292″ × .316″	.50″	0°, 90°, 180°, 270°	.008
570	.343″ × .375″	.50″	0°, 90°, 180°, 270°	.008
571	.355″ × .390″	.50″	0°, 90°, 180°, 270°	.012
572	.468″ × .500″	.50″	0°, 90°, 180°, 270°	.008
573	.478″ × .506″	1.25″	0°, 90°, 180°, 270°	.008
574	.546″ × .570″	1.25″	0°, 90°, 180°, 270°	.008
575	.555″ × .580″	1.25″	0°, 90°, 180°, 270°	.008
576	.595″ × .635″	1.25″	0°, 90°, 180°, 270°	.008
577	.670″ × .700″	1.25″	0°, 90°, 180°, 270°	.010
578	.700″ × .736″	1.25″	0°, 90°, 180°, 270°	.008
579	.704″ × .769″	1.25″	0°, 90°, 180°, 270°	.008
580	.710″ × .760″	1.25″	0°, 90°, 180°, 270°	.008
581	.728″ × .760″	1.25″	0°, 90°, 180°, 270°	.008
582	.910″ × 1.000″	1.25″	0°, 90°, 180°, 270°	.010
583	.950″ × 1.032″	1.25″	0°, 90°, 180°, 270°	.008
584	1.670″ × 1.740″	2.00″	0°, 90°, 180°, 270°	.010

Special & Forming Tools

Special Shapes and Forming Tools

These are the tools that set a turret shop apart: shaped punches built for specific features and forming tools that raise, lance or extrude the metal. Each section includes the original tool drawings with dimensions.

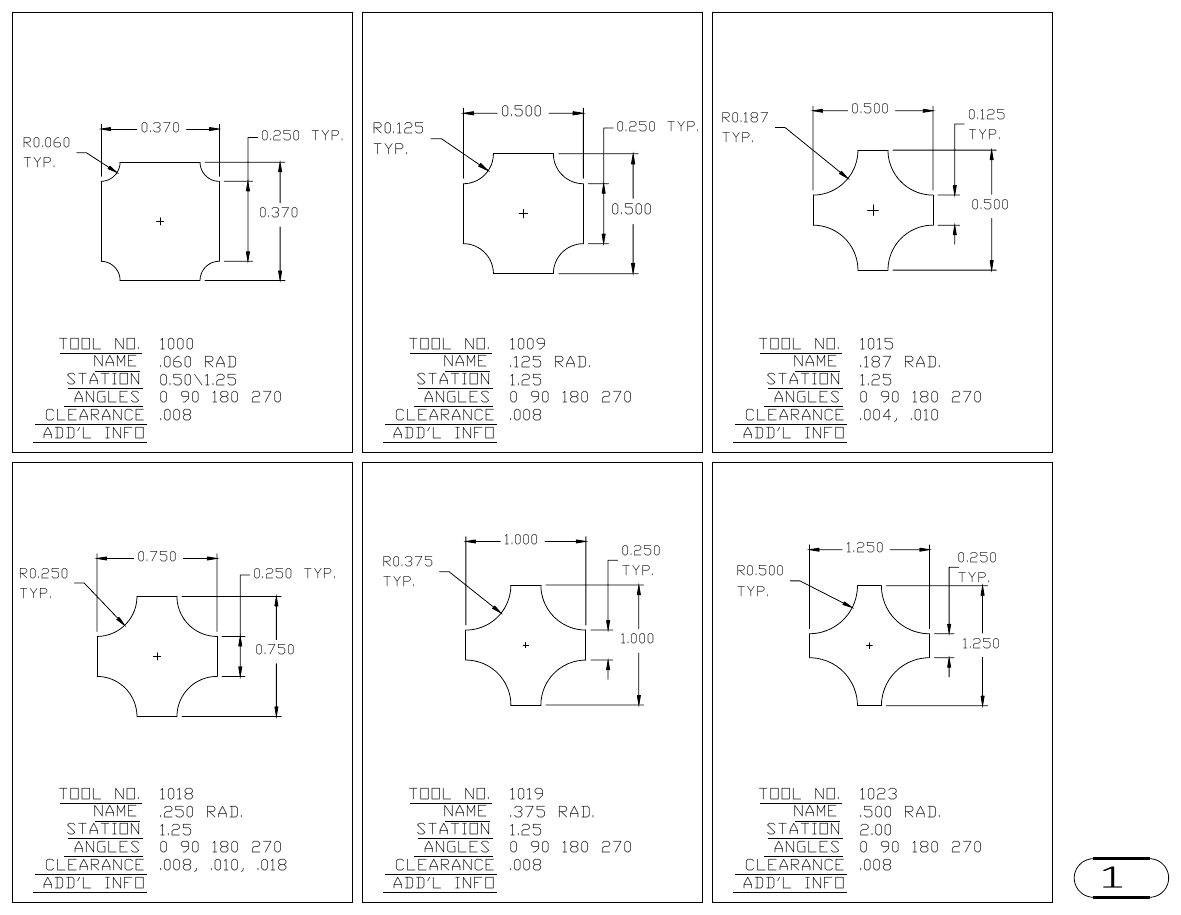

4-Corner Radius6 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1000	.060 RAD	0.50 / 1.25	.008
1009	.125 RAD.	1.25	.008
1015	.187 RAD.	1.25	.004, .010
1018	.250 RAD.	1.25	.008, .010, .018
1019	.375 RAD.	1.25	.008
1023	.500 RAD.	2.00	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

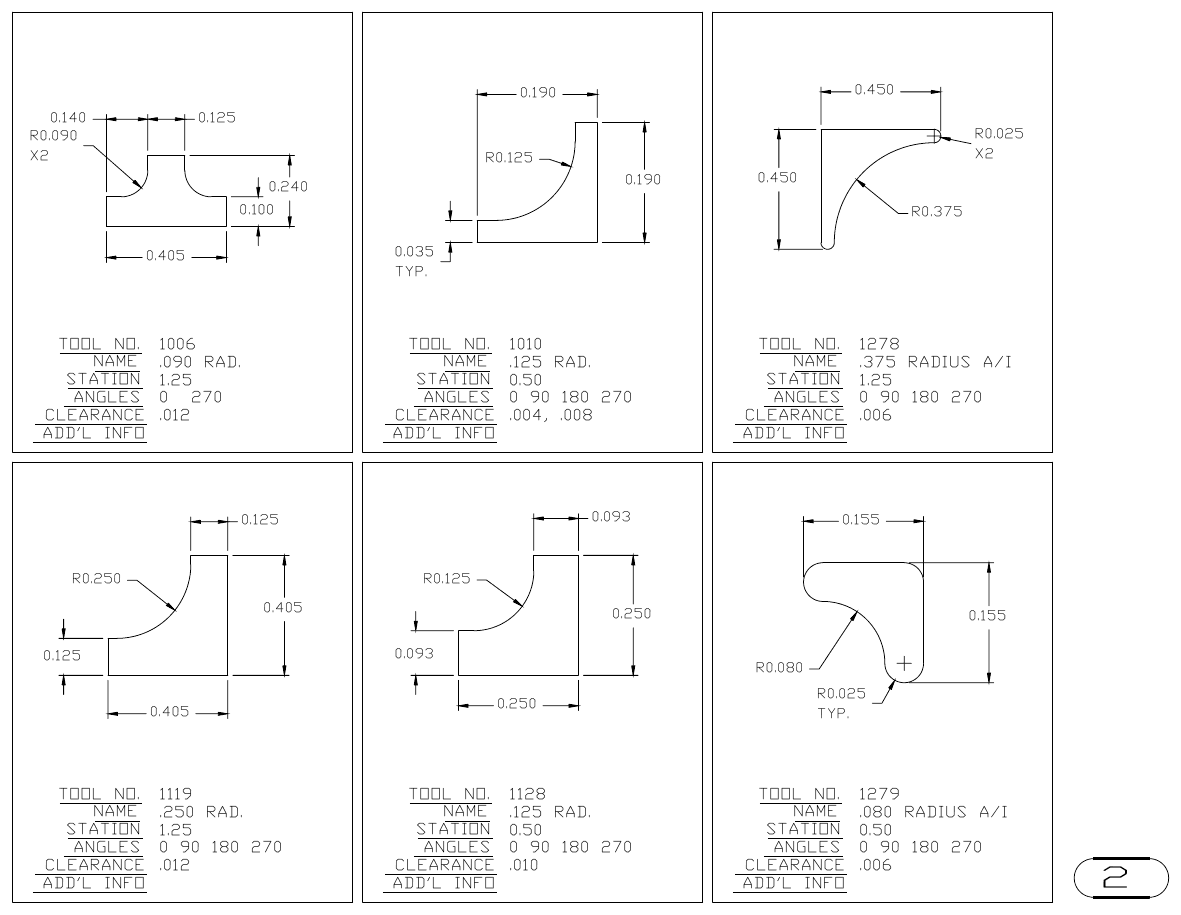

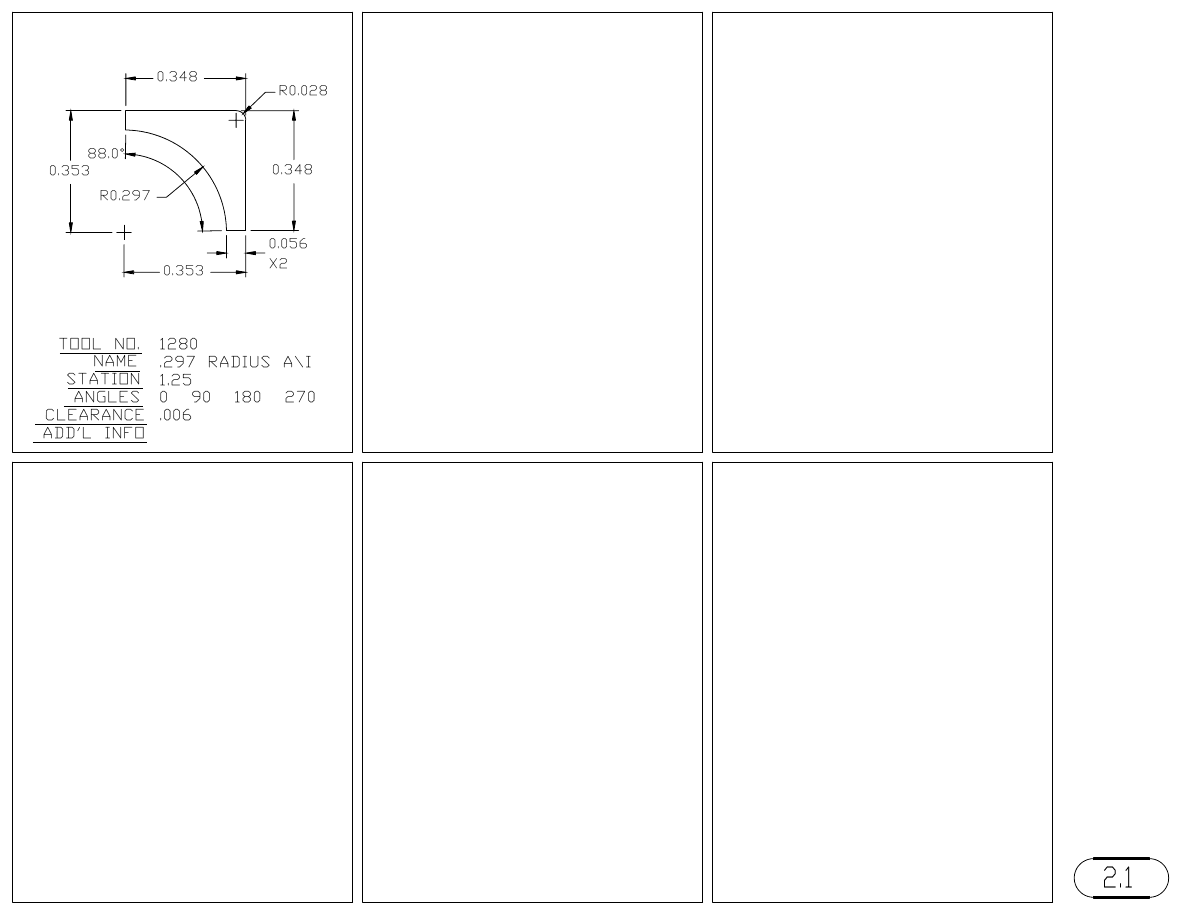

1- and 2-Corner Radius7 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1006	.090 RAD.	1.25	.012
1010	.125 RAD.	0.50	.004, .008
1278	.375 RADIUS A/I	1.25	.006
1119	.250 RAD.	1.25	.012
1128	.125 RAD.	0.50	.010
1279	.080 RADIUS A/I	0.50	.006
1280	.297 RADIUS A\I	1.25	.006

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

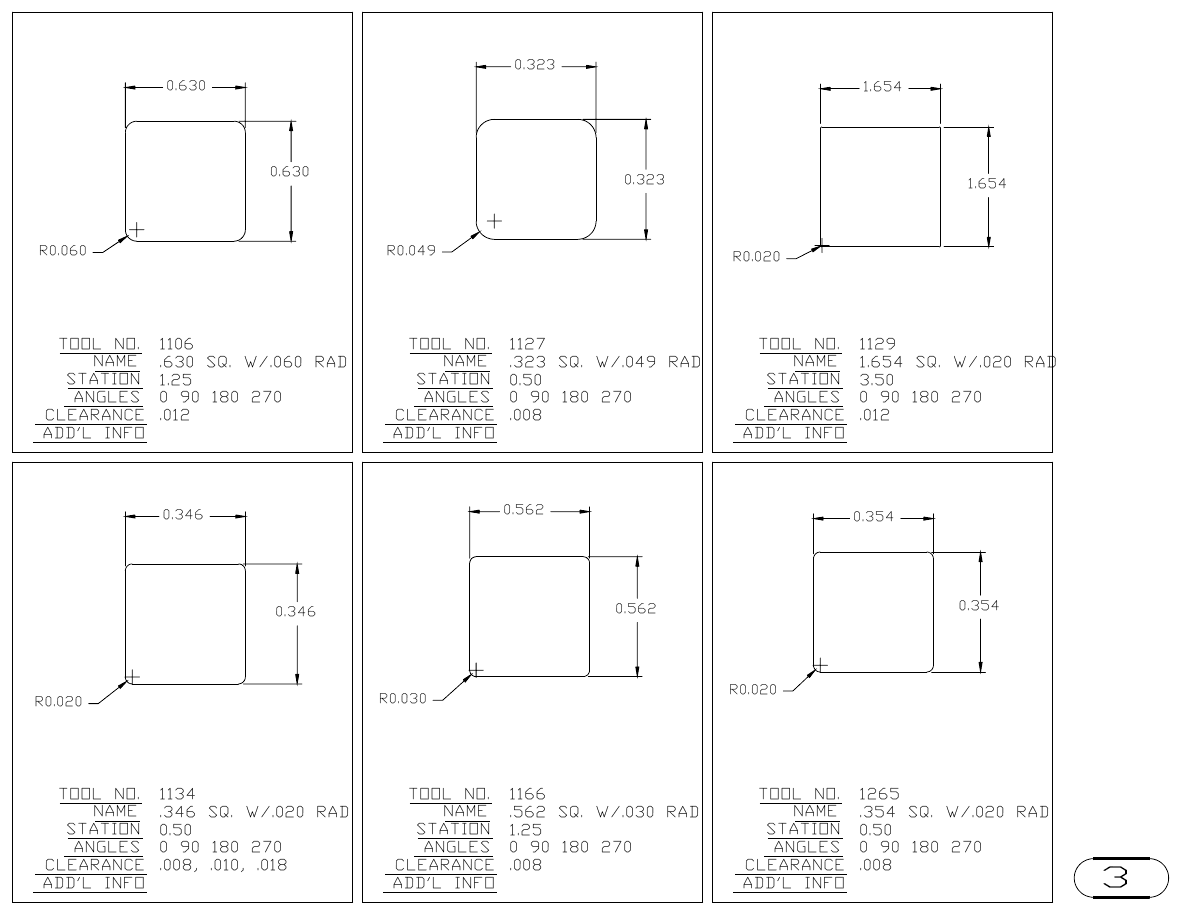

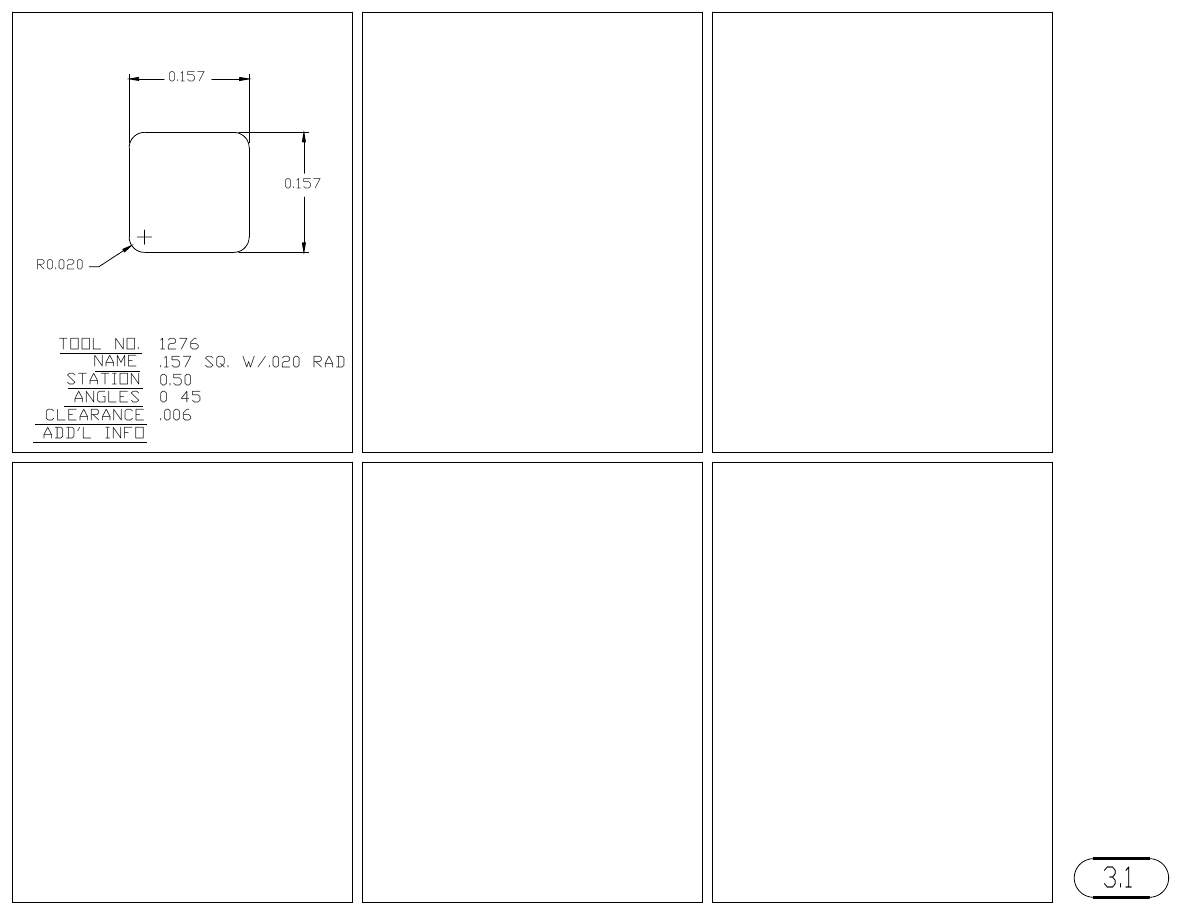

Square with Radius Corners7 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1106	.630 SQ. W/.060 RAD	1.25	.012
1127	.323 SQ. W/.049 RAD	0.50	.008
1129	1.654 SQ. W/.020 RAD	3.50	.012
1134	.346 SQ. W/.020 RAD	0.50	.008, .010, .018
1166	.562 SQ. W/.030 RAD	1.25	.008
1265	.354 SQ. W/.020 RAD	0.50	.008
1276	.157 SQ. W/.020 RAD	0.50	.006

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

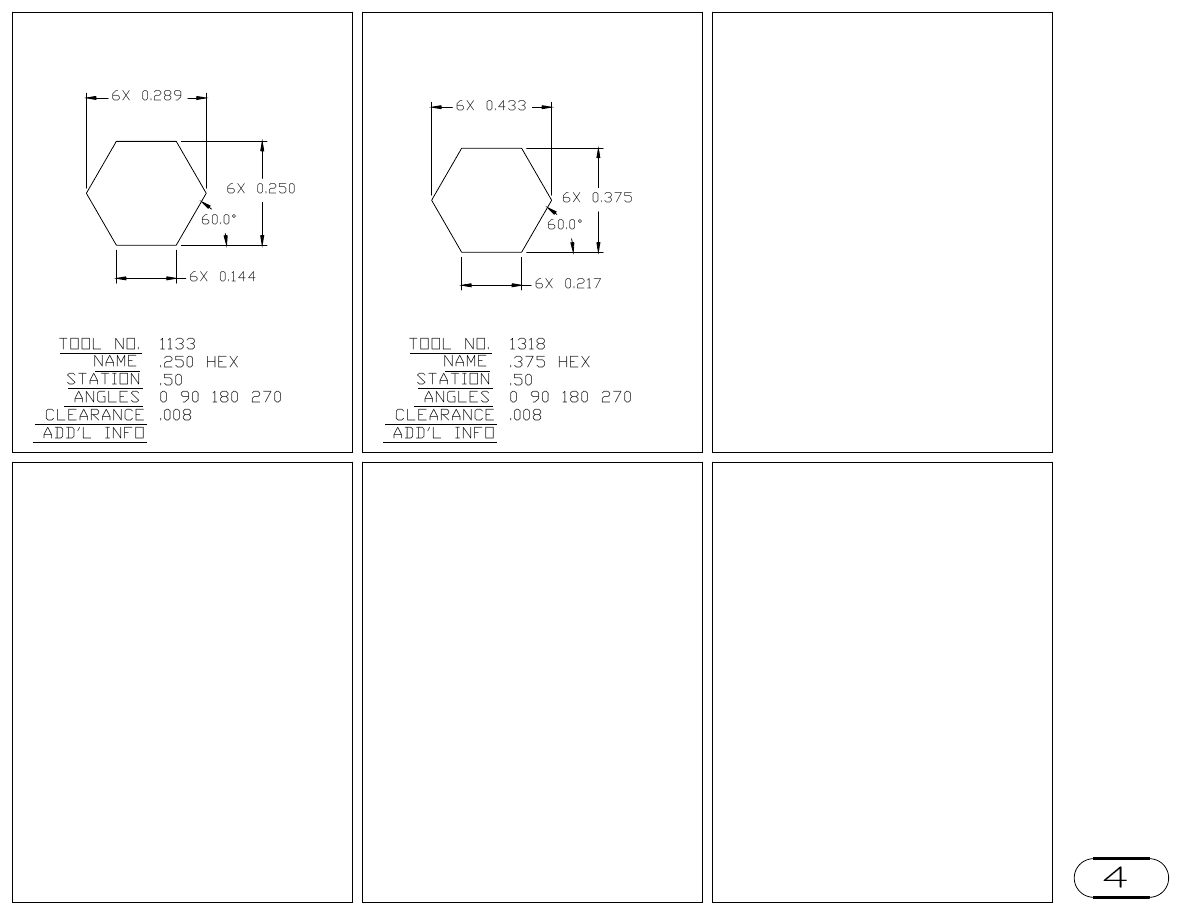

Hexagon2 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1133	.250 HEX	.50	.008
1318	.375 HEX	.50	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

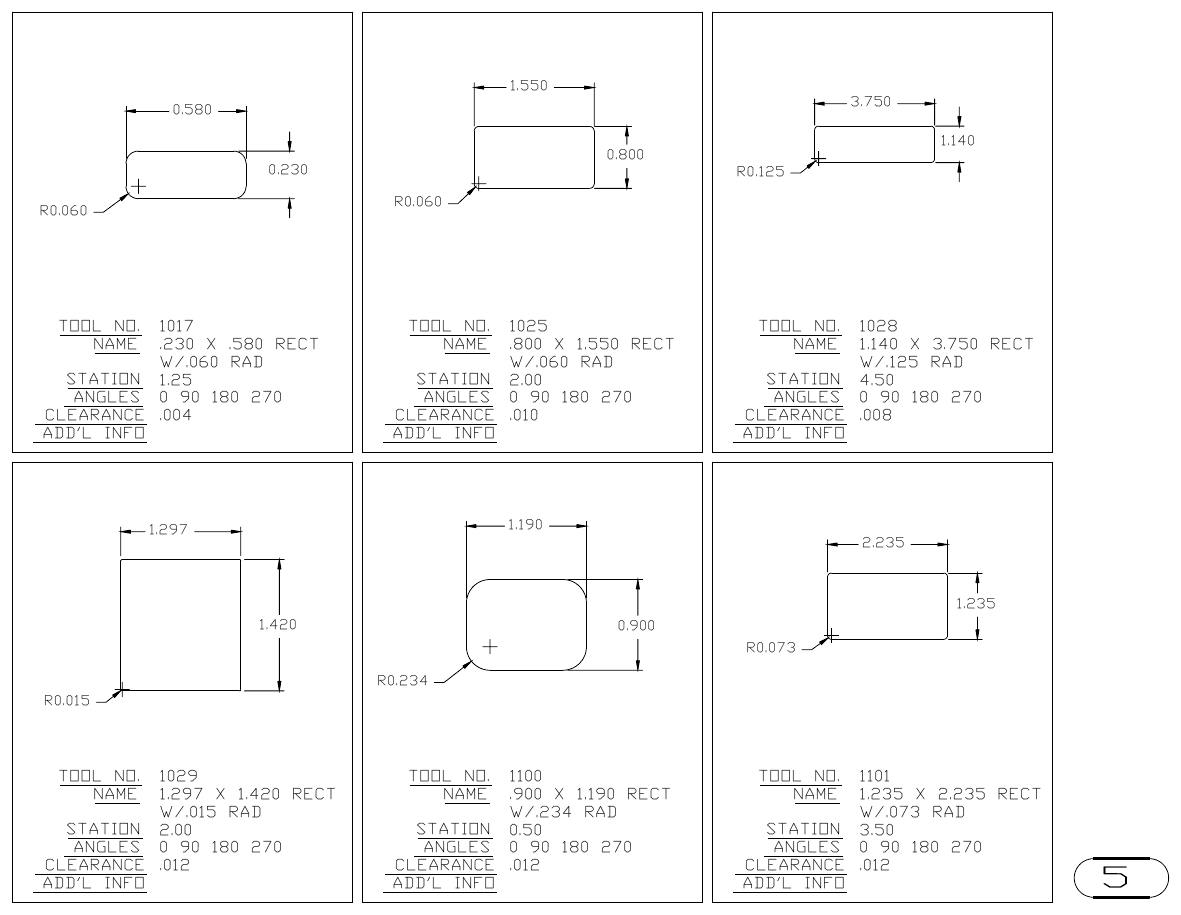

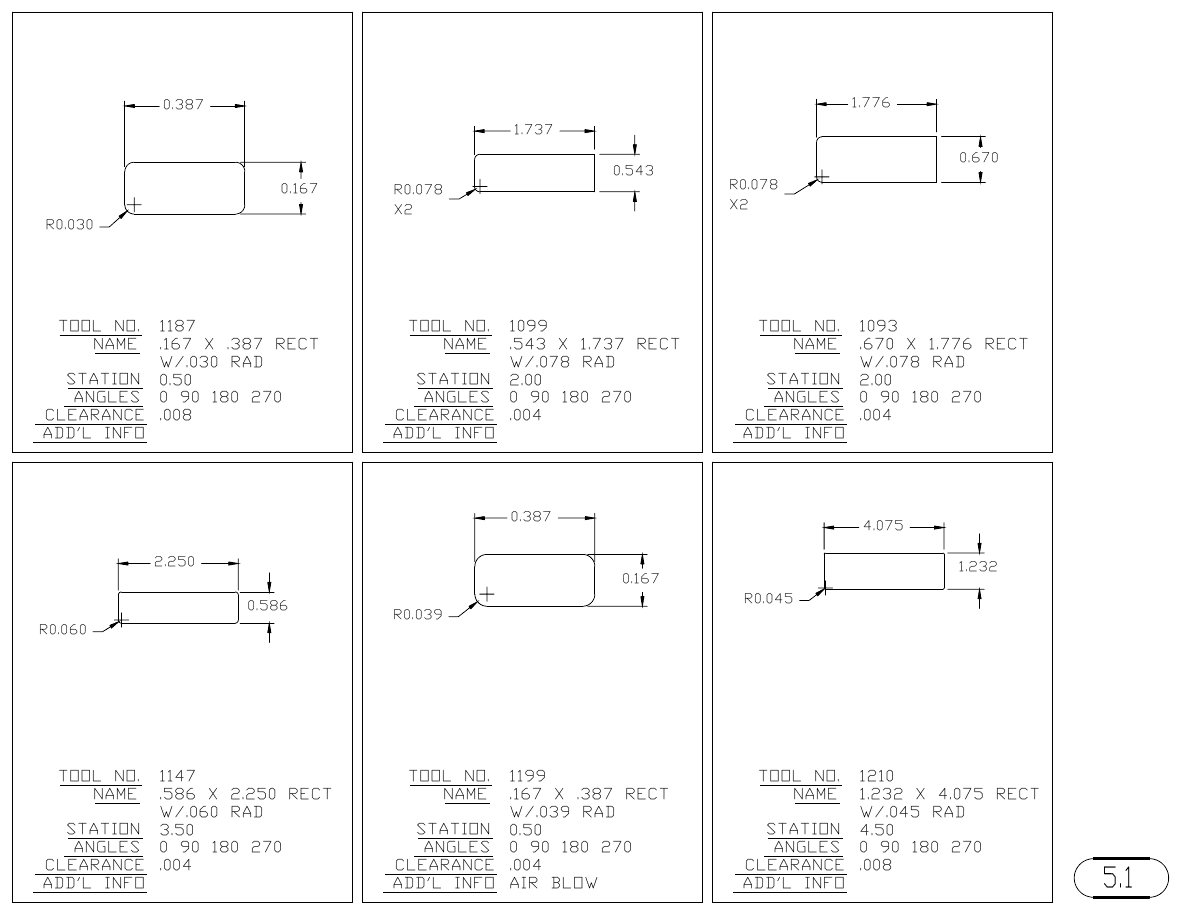

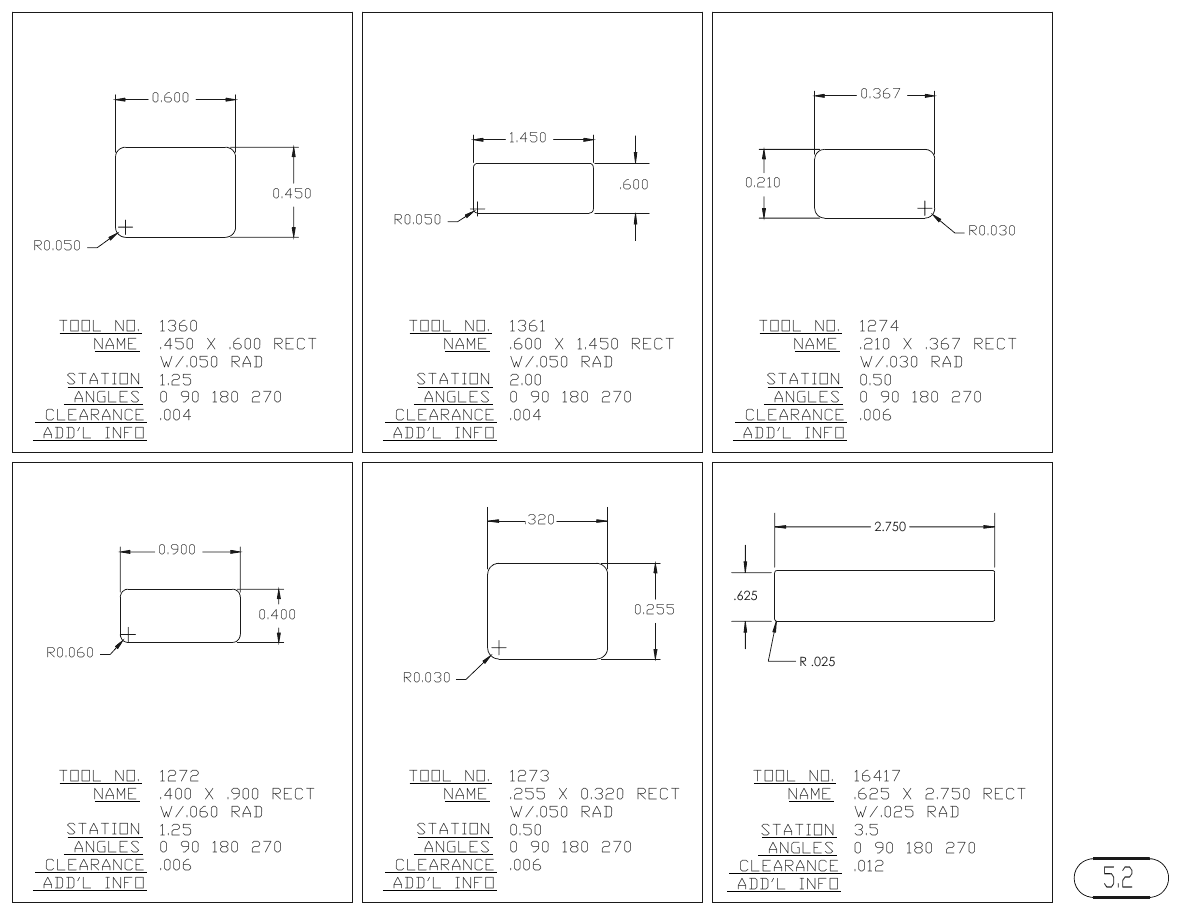

Rectangle with Radius Corners19 tools · 4 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1017	.230 X .580 RECT	1.25	.004
1025	.800 X 1.550 RECT	2.00	.010
1028	1.140 X 3.750 RECT	4.50	.008
1029	1.297 X 1.420 RECT	2.00	.012
1100	.900 X 1.190 RECT	0.50	.012
1101	1.235 X 2.235 RECT	3.50	.012
1187	.167 X .387 RECT	0.50	.008
1099	.543 X 1.737 RECT	2.00	.004
1093	.670 X 1.776 RECT	2.00	.004
1147	.586 X 2.250 RECT	3.50	.004
1199	.167 X .387 RECT	0.50	.004
1210	1.232 X 4.075 RECT	4.50	.008
1360	.450 X .600 RECT	1.25	.004
1361	.600 X 1.450 RECT	2.00	.004
1274	.210 X .367 RECT	0.50	.006
1272	.400 X .900 RECT	1.25	.006
1273	.255 X 0.320 RECT	0.50	.006
16417	.625 X 2.750 RECT	3.5	.012

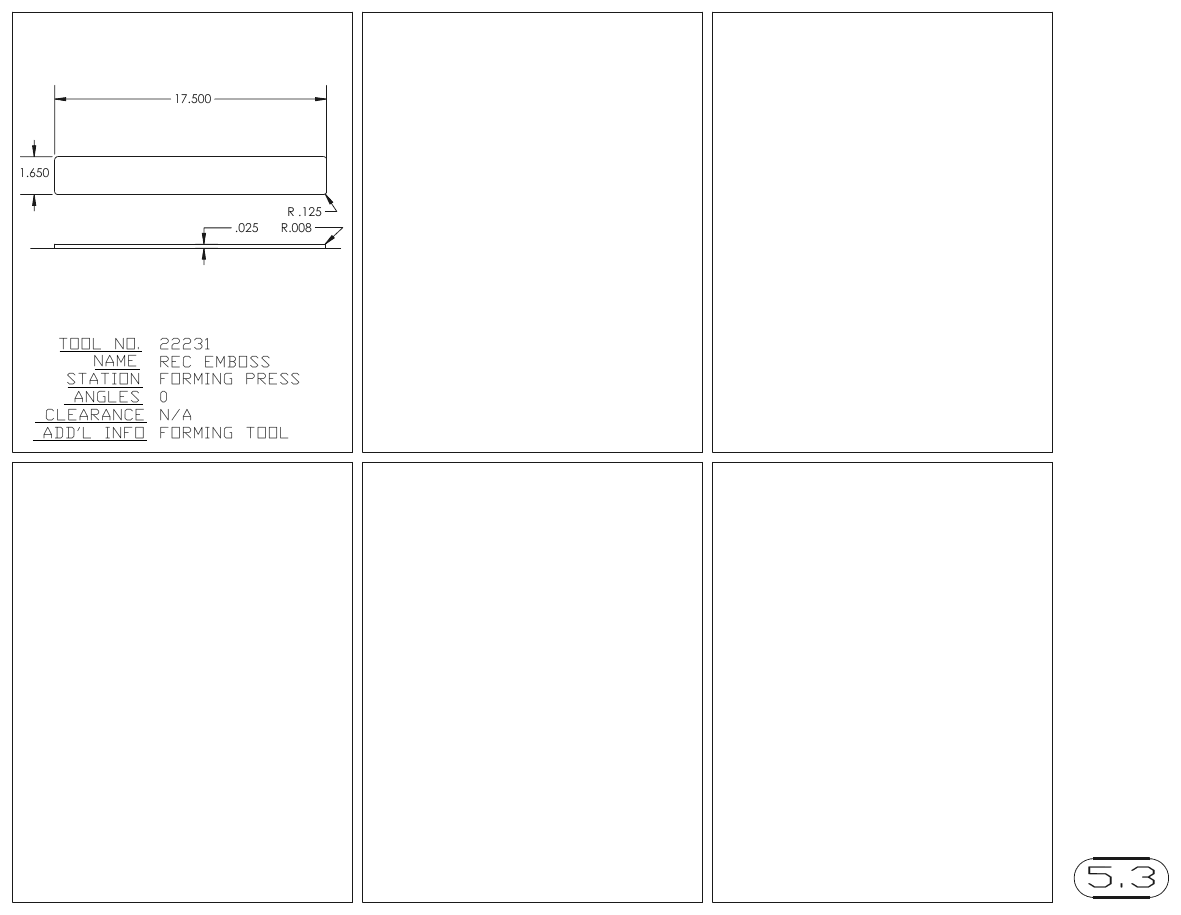

22231	REC EMBOSS	FORMING PRESS	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

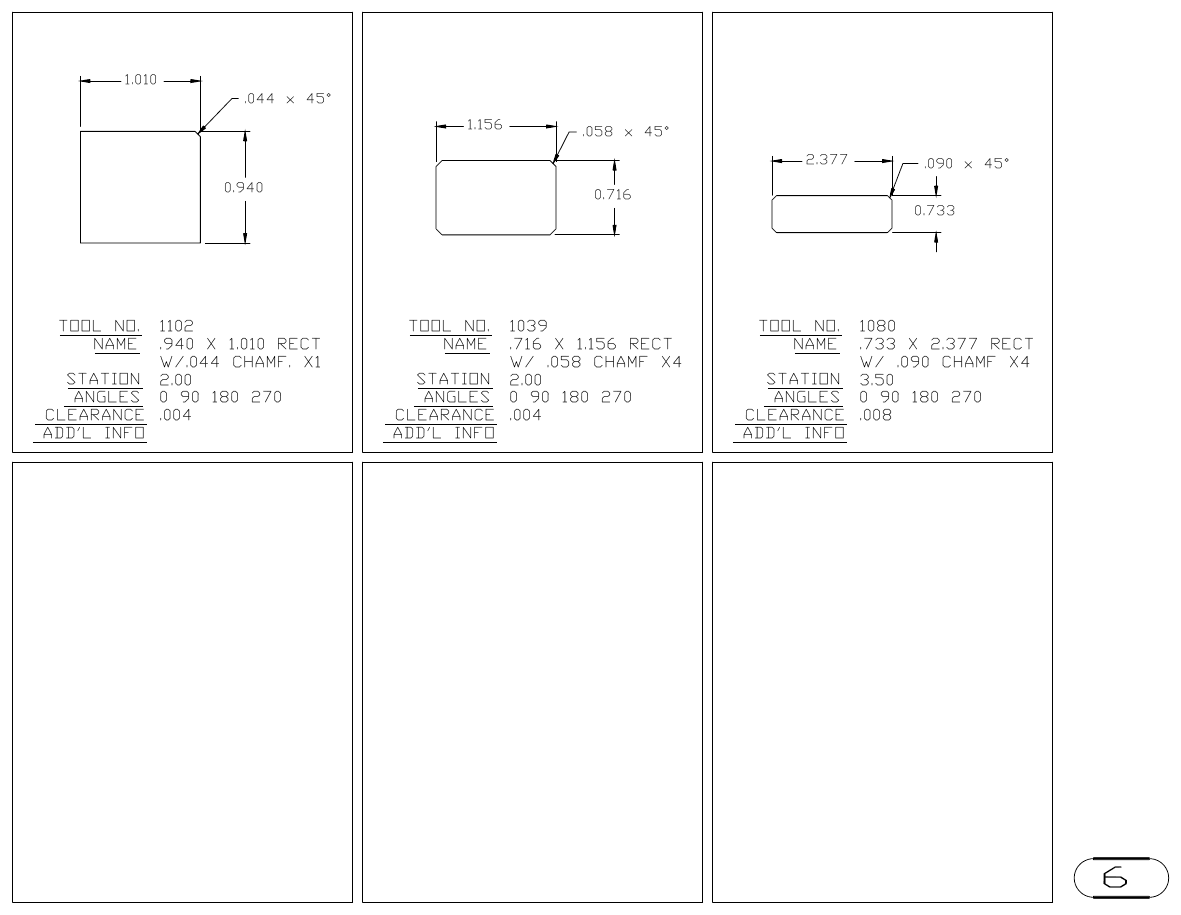

Rectangle with Chamfered Corners3 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1102	.940 X 1.010 RECT	2.00	.004
1039	.716 X 1.156 RECT	2.00	.004
1080	.733 X 2.377 RECT	3.50	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

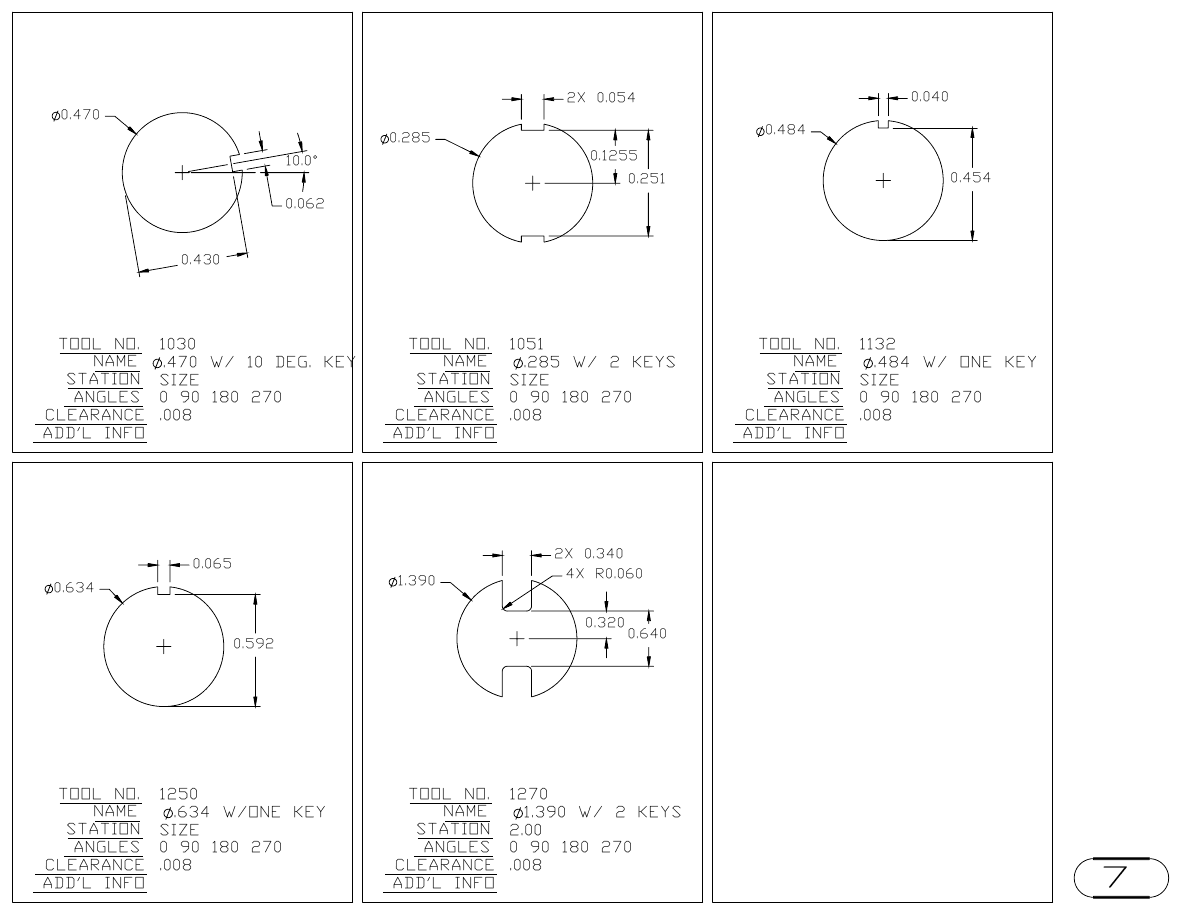

Round with Keyway5 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1030	.470 W/ 10 DEG. KEY	SIZE	.008
1051	.285 W/ 2 KEYS	SIZE	.008
1132	.484 W/ ONE KEY	SIZE	.008
1250	.634 W/ONE KEY	SIZE	.008
1270	1.390 W/ 2 KEYS	2.00	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

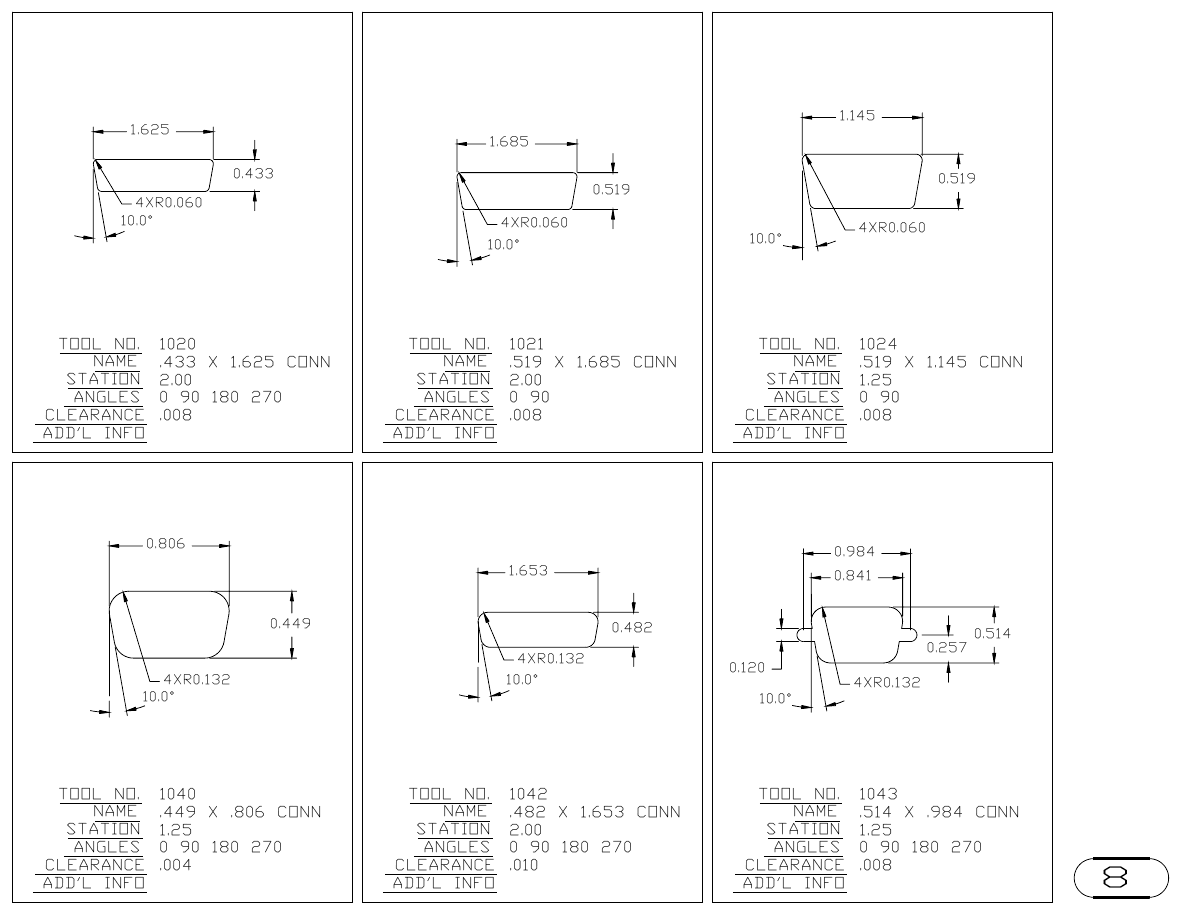

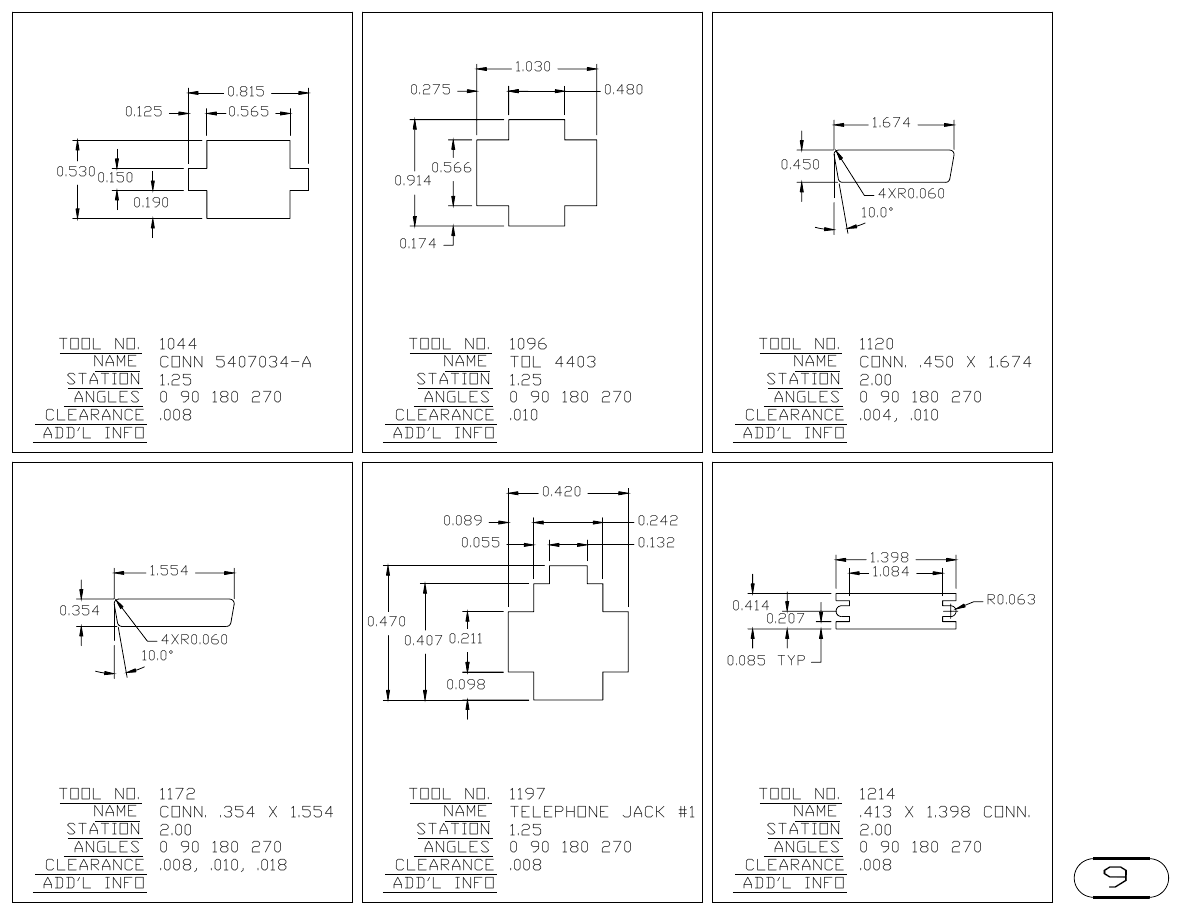

Connector Cutouts12 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1020	.433 X 1.625 CONN	2.00	.008
1021	.519 X 1.685 CONN	2.00	.008
1024	.519 X 1.145 CONN	1.25	.008
1040	.449 X .806 CONN	1.25	.004
1042	.482 X 1.653 CONN	2.00	.010
1043	.514 X .984 CONN	1.25	.008
1044	CONN 5407034-A	1.25	.008
1096	TOL 4403	1.25	.010
1120	CONN. .450 X 1.674	2.00	.004, .010
1172	CONN. .354 X 1.554	2.00	.008, .010, .018
1197	TELEPHONE JACK #1	1.25	.008
1214	.413 X 1.398 CONN.	2.00	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

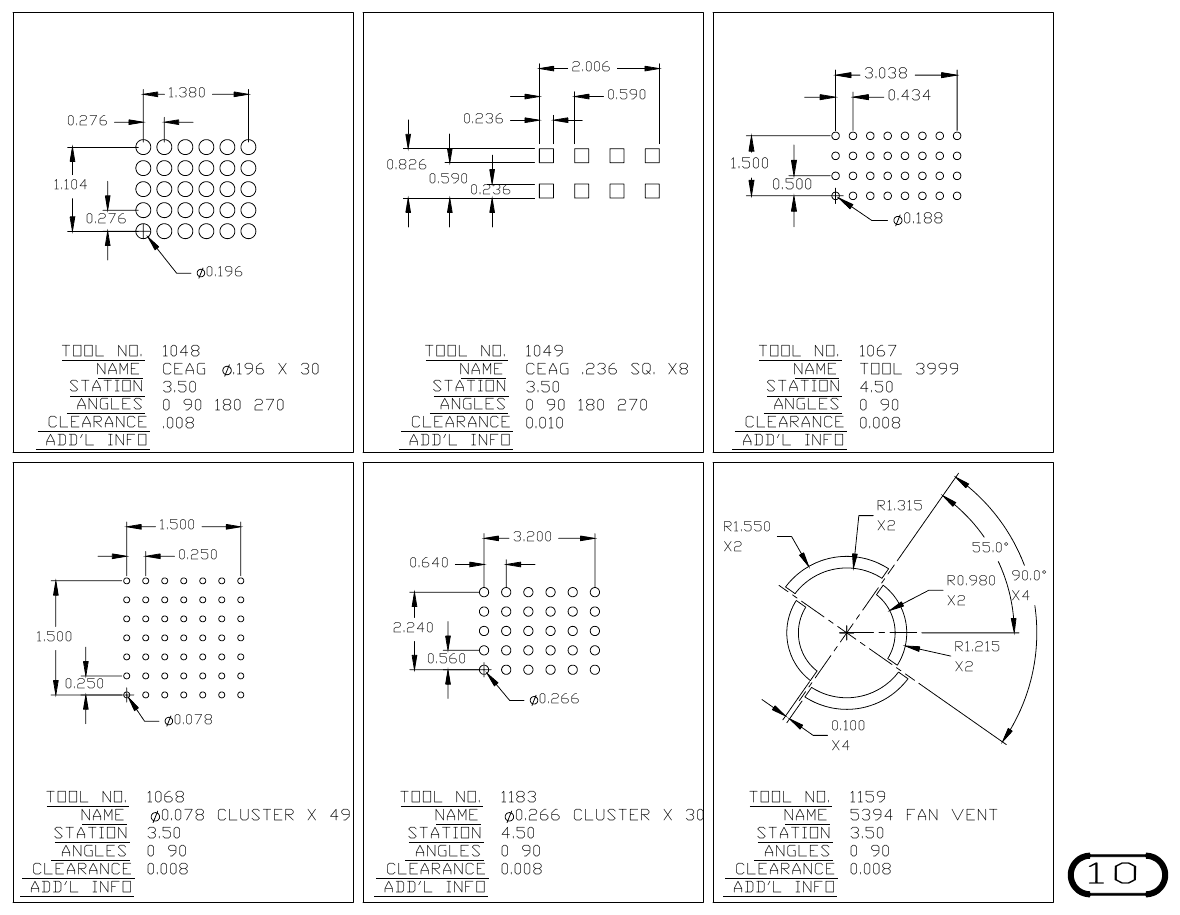

Clusters and Vent Patterns6 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1048	CEAG .196 X 30	3.50	.008
1049	CEAG .236 SQ. X8	3.50	0.010
1067	TOOL 3999	4.50	0.008
1068	0.078 CLUSTER X 49	3.50	0.008
1183	0.266 CLUSTER X 30	4.50	0.008
1159	5394 FAN VENT	3.50	0.008 10

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

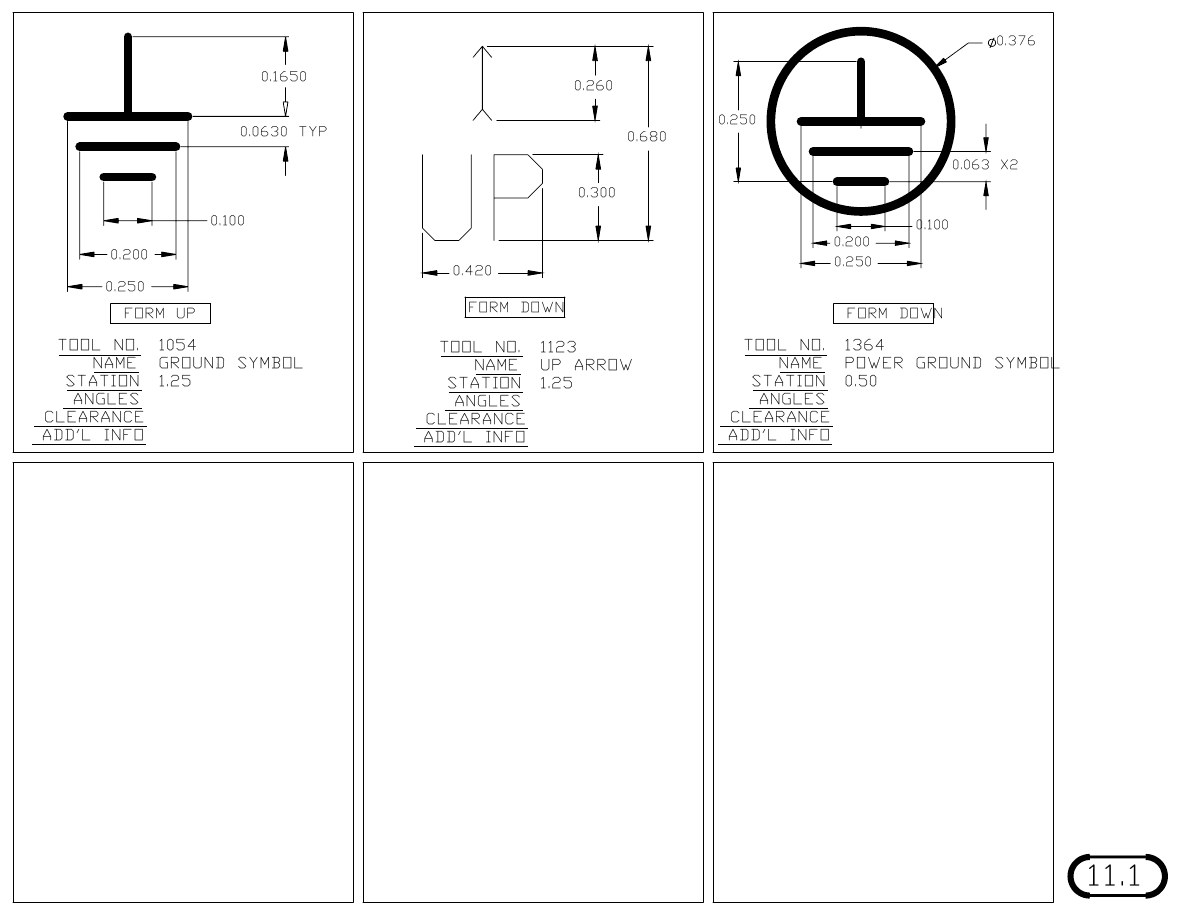

Letters and Symbols3 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1054	GROUND SYMBOL	1.25	—
1123	UP ARROW	1.25	—
1364	POWER GROUND SYMBOL	0.50	—

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

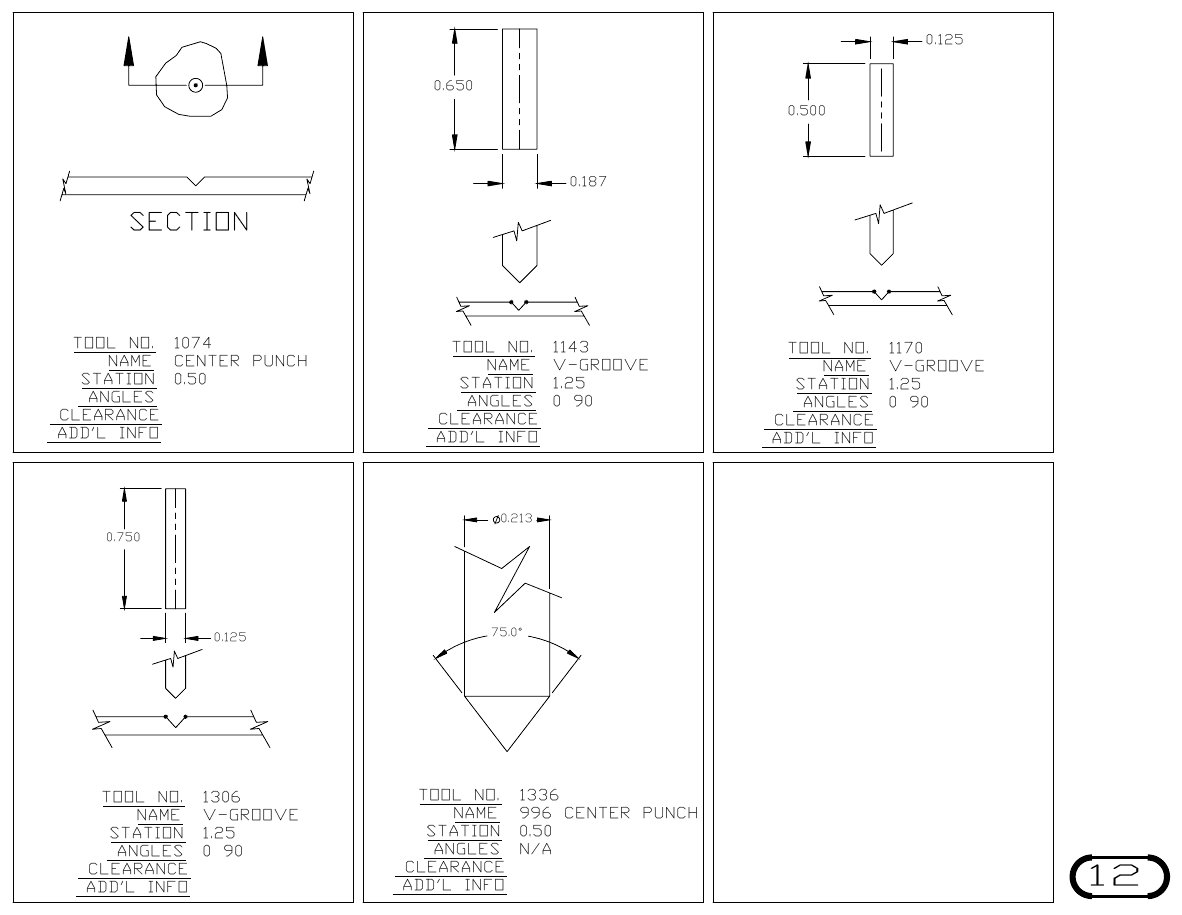

Center Punch and V-Groove5 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1074	CENTER PUNCH	0.50	—
1143	V-GROOVE	1.25	—
1170	V-GROOVE	1.25	—
1306	V-GROOVE	1.25	—
1336	996 CENTER PUNCH	0.50	12

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

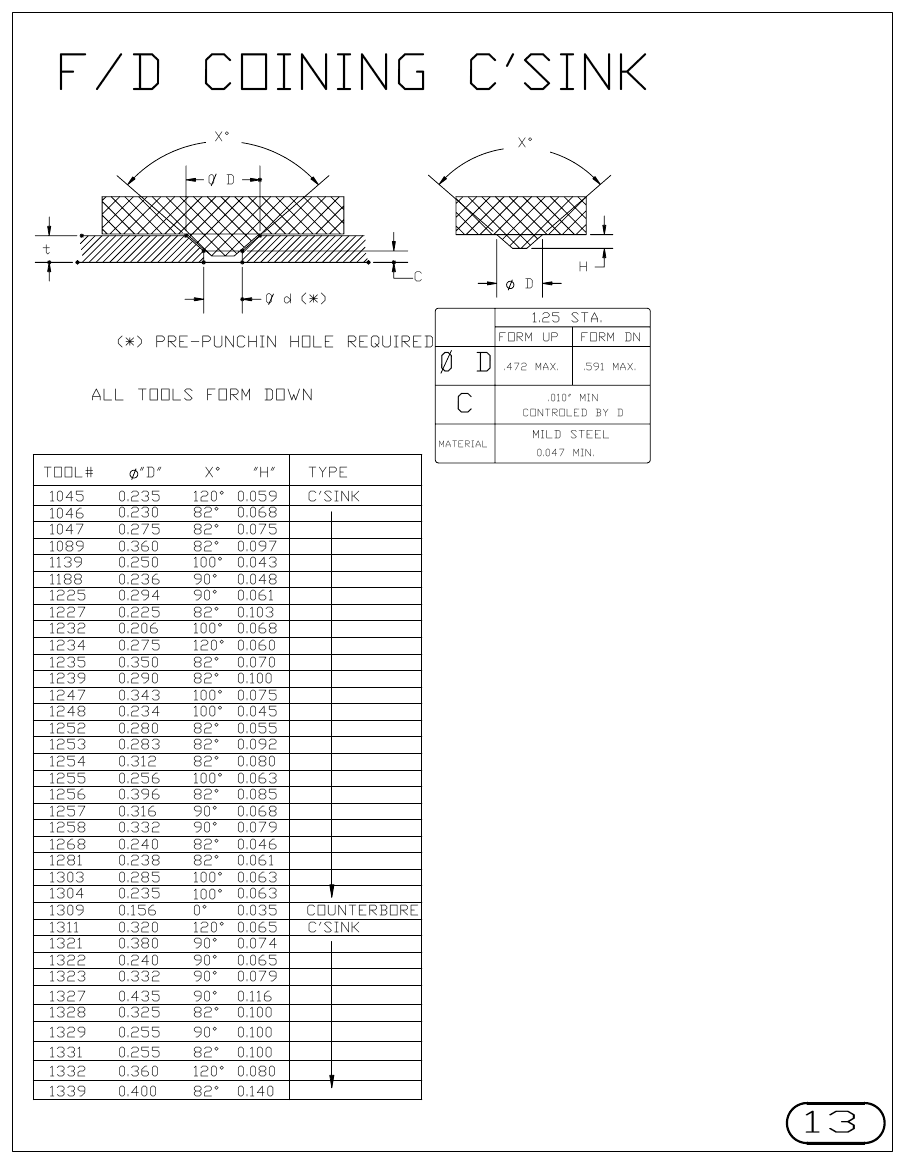

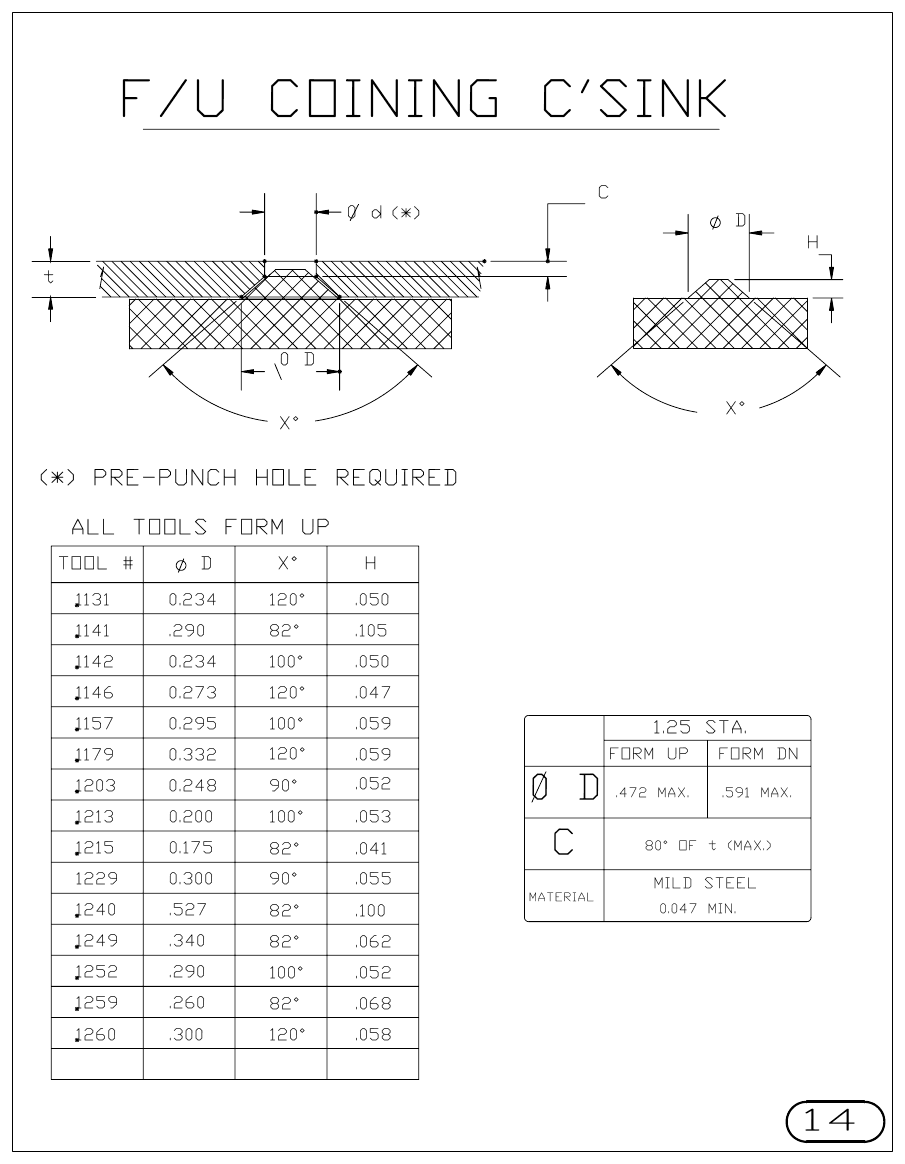

Coining Countersink, Form DownSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

Coining Countersink, Form UpSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

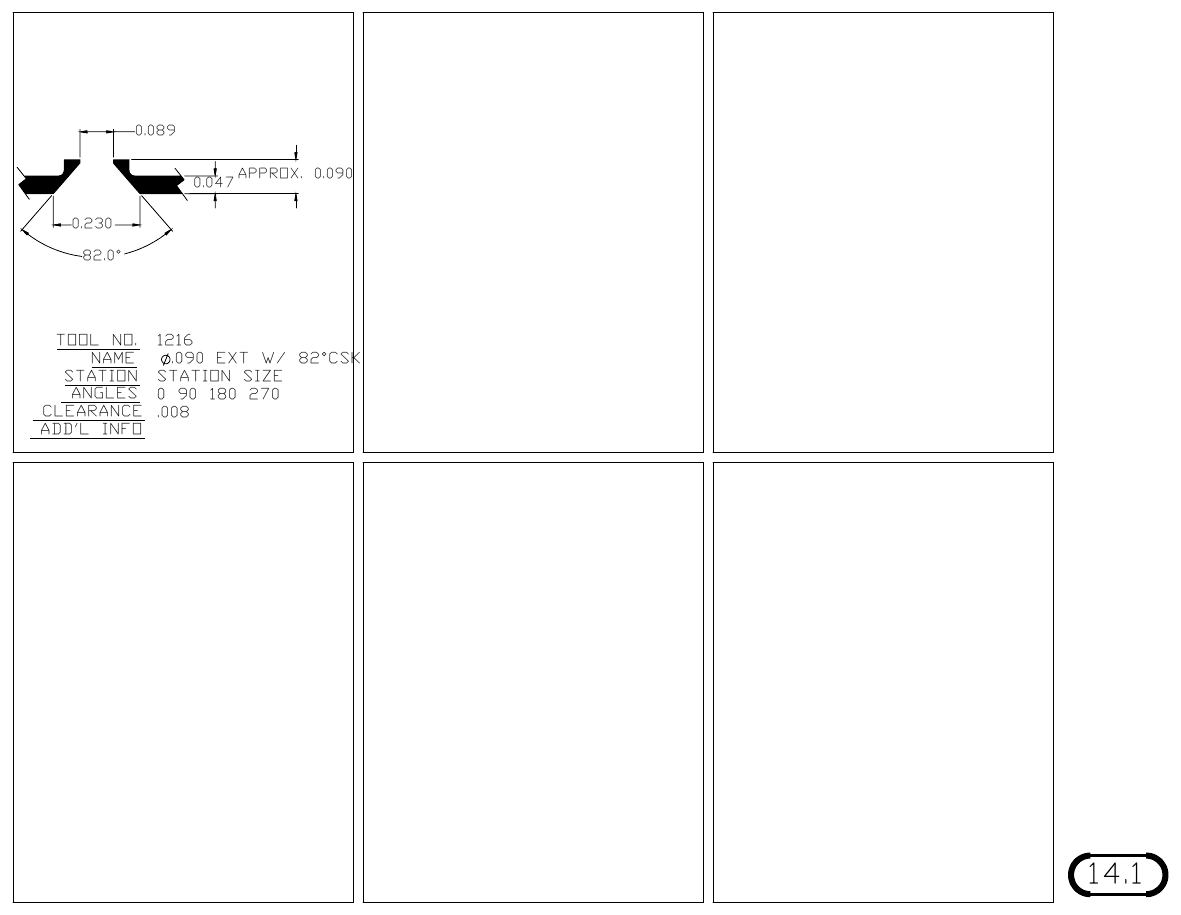

Extrusion Countersink1 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1216	.090 EXT W/ 82°CSK	—	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

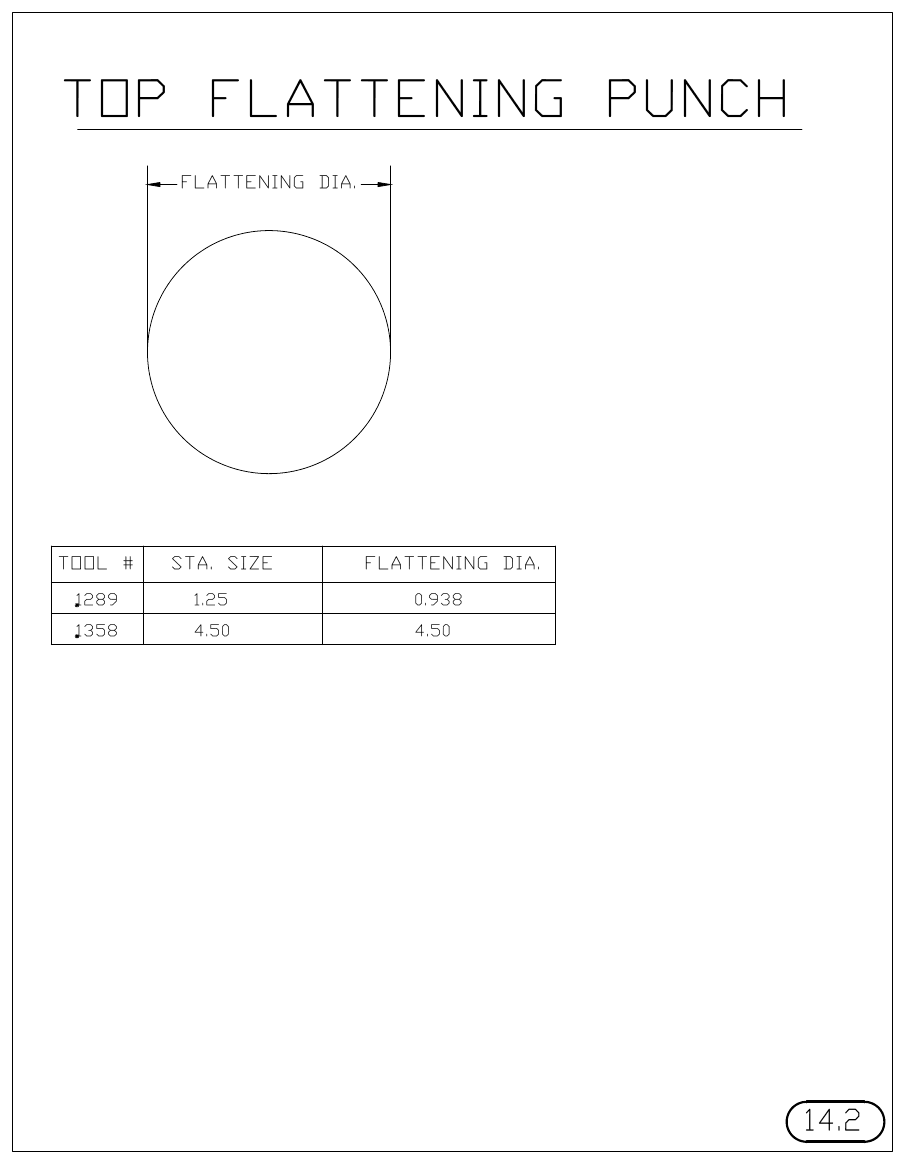

Top FlatteningSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

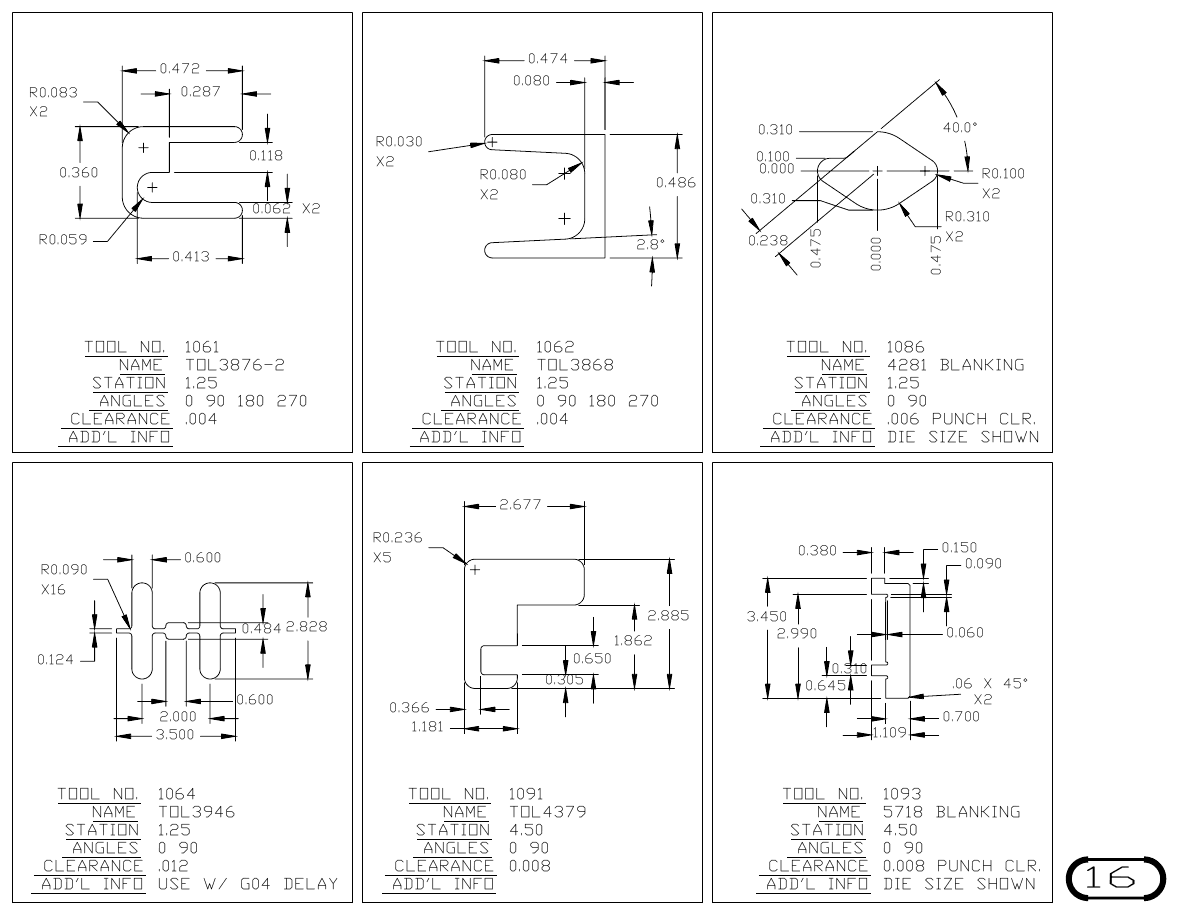

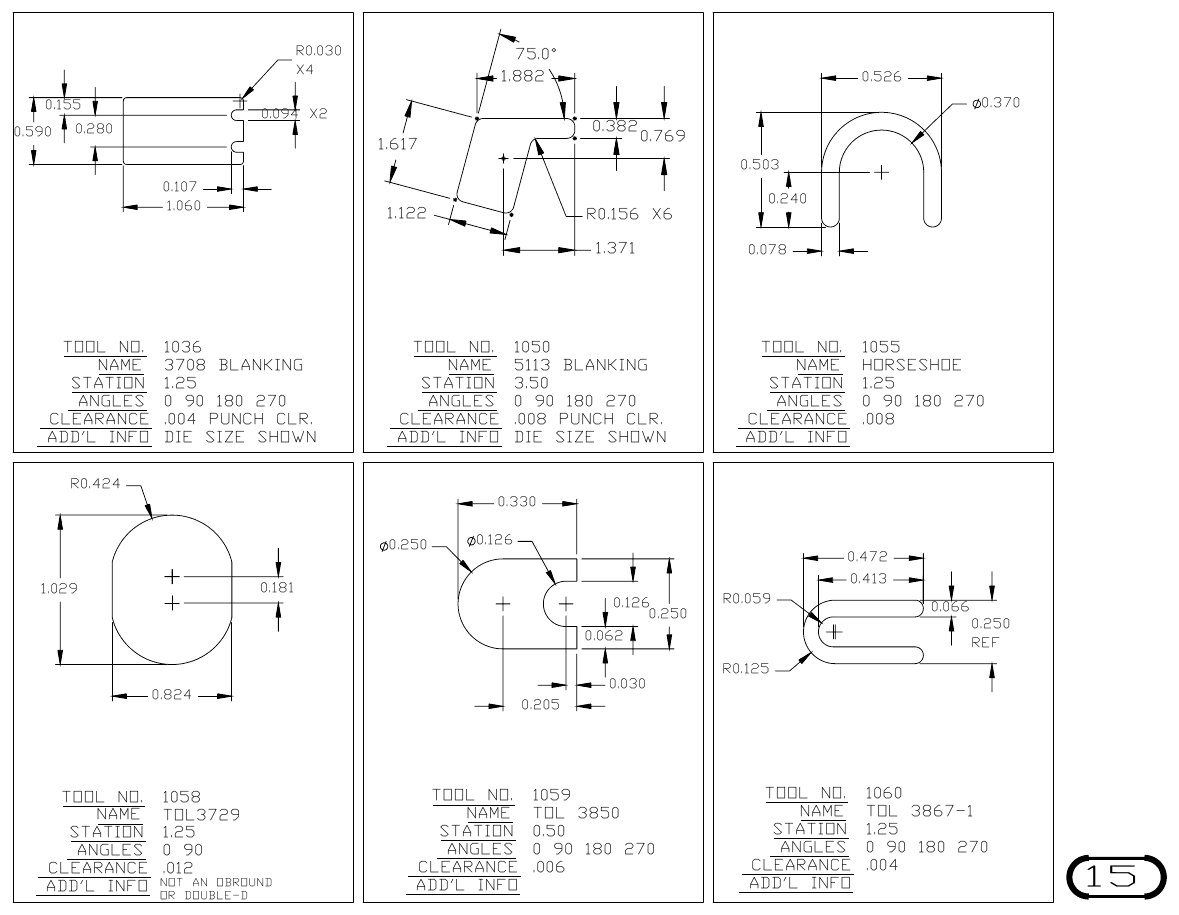

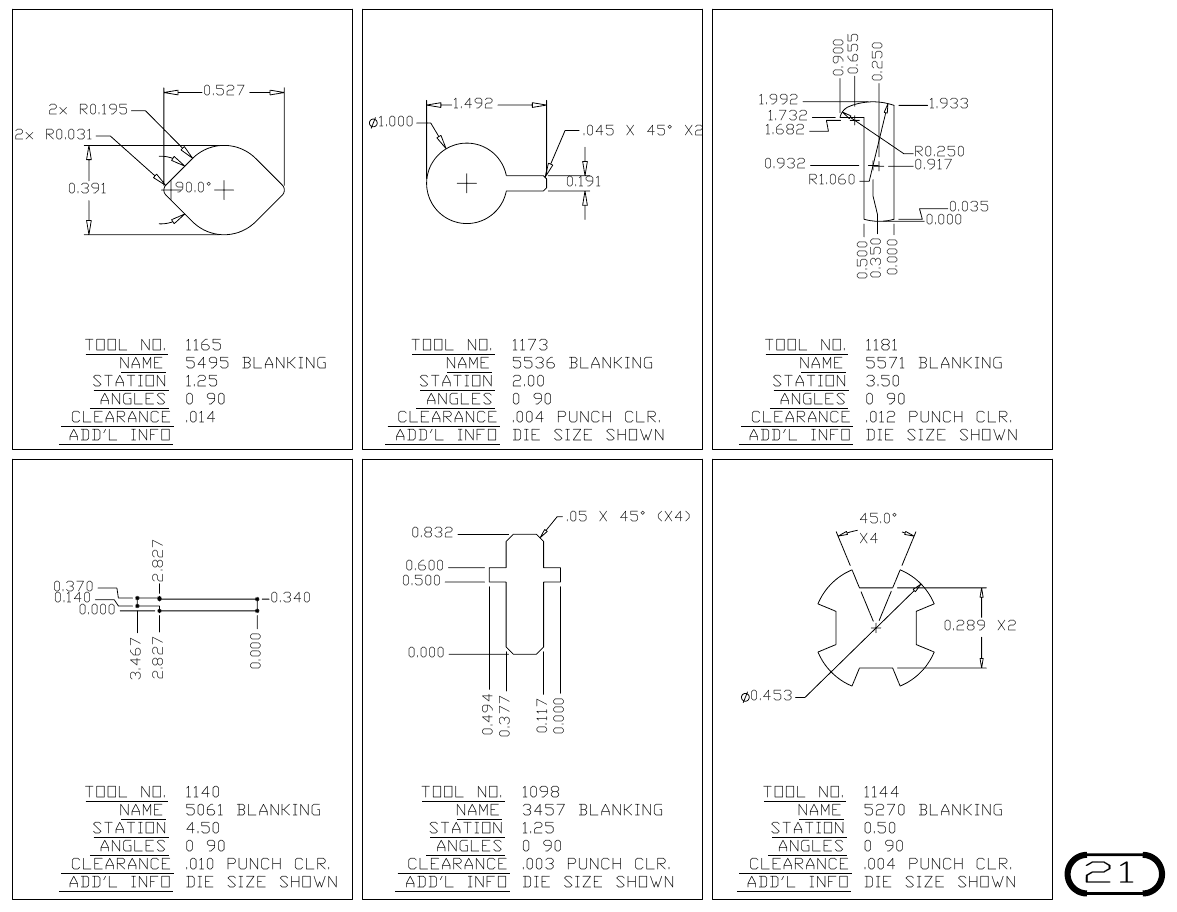

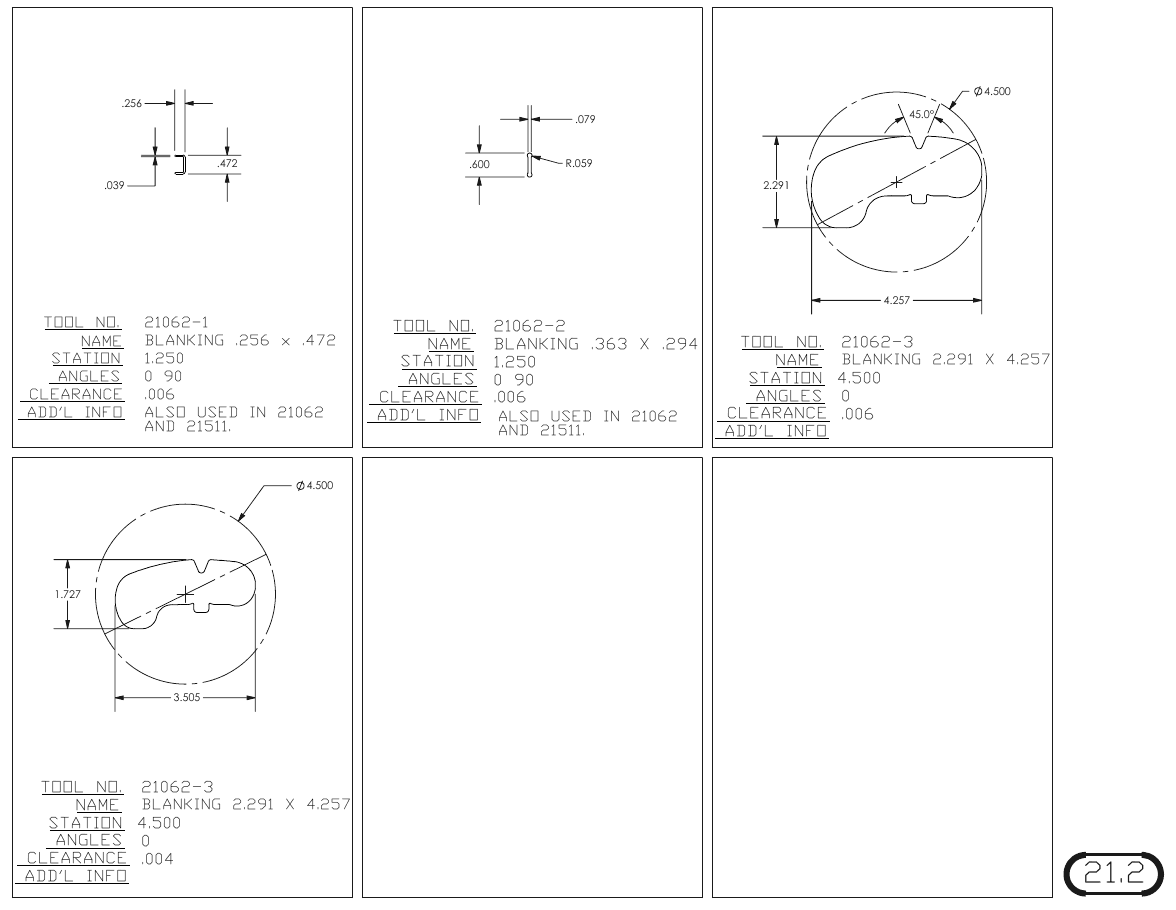

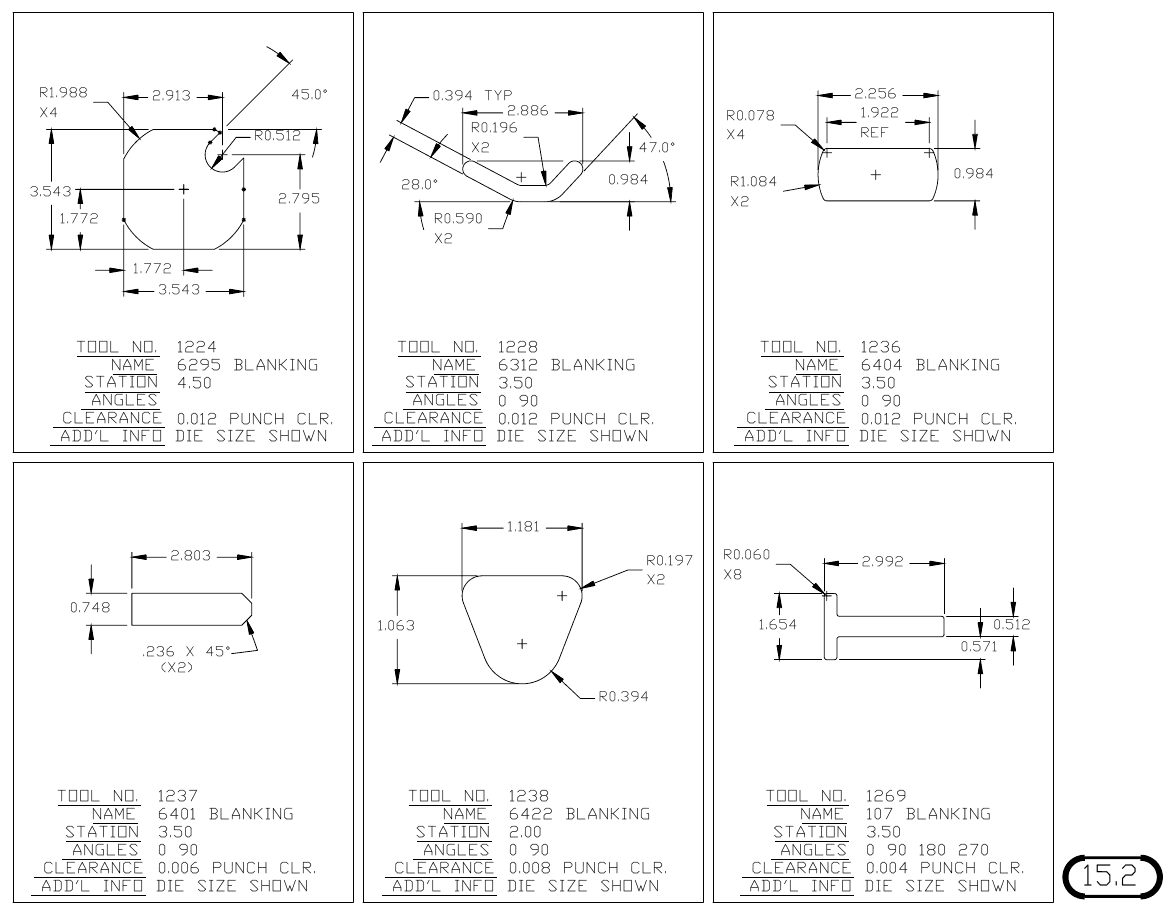

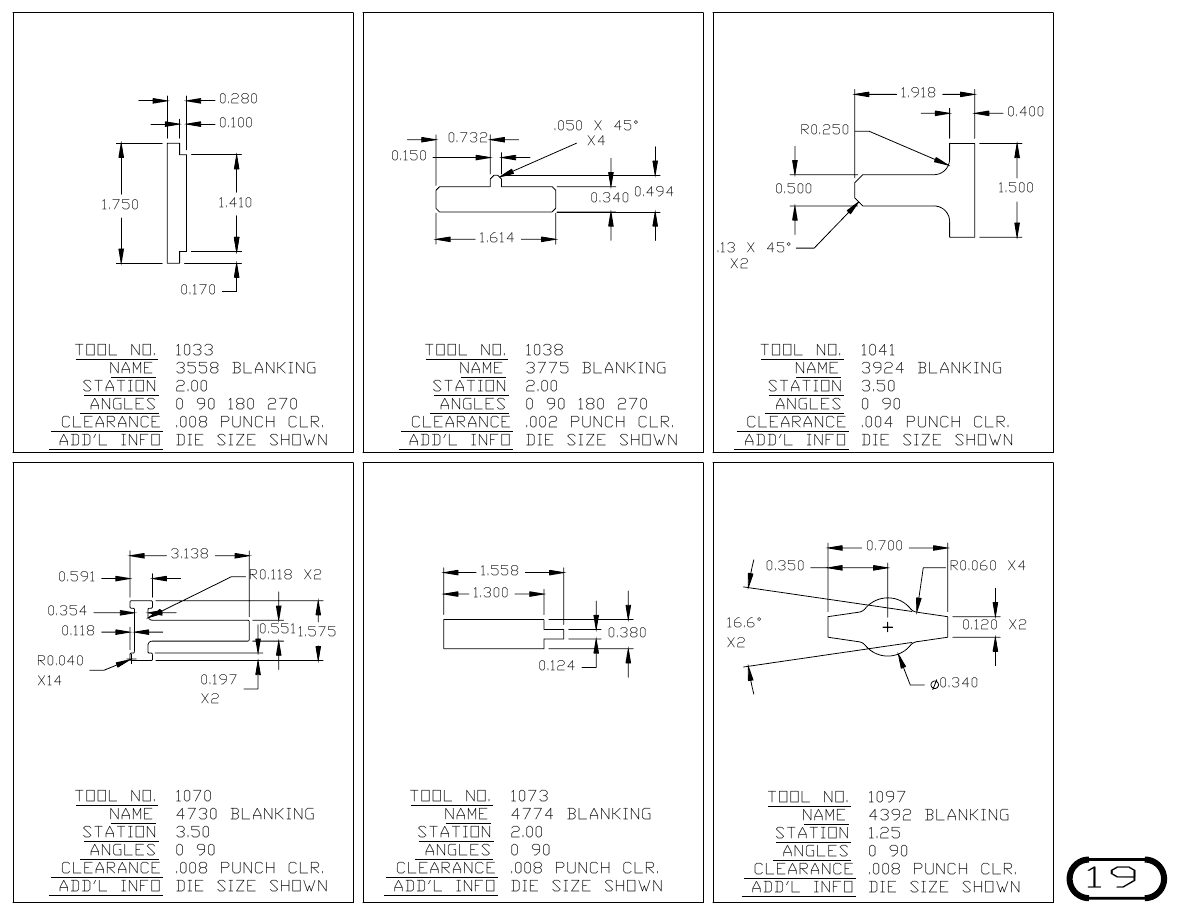

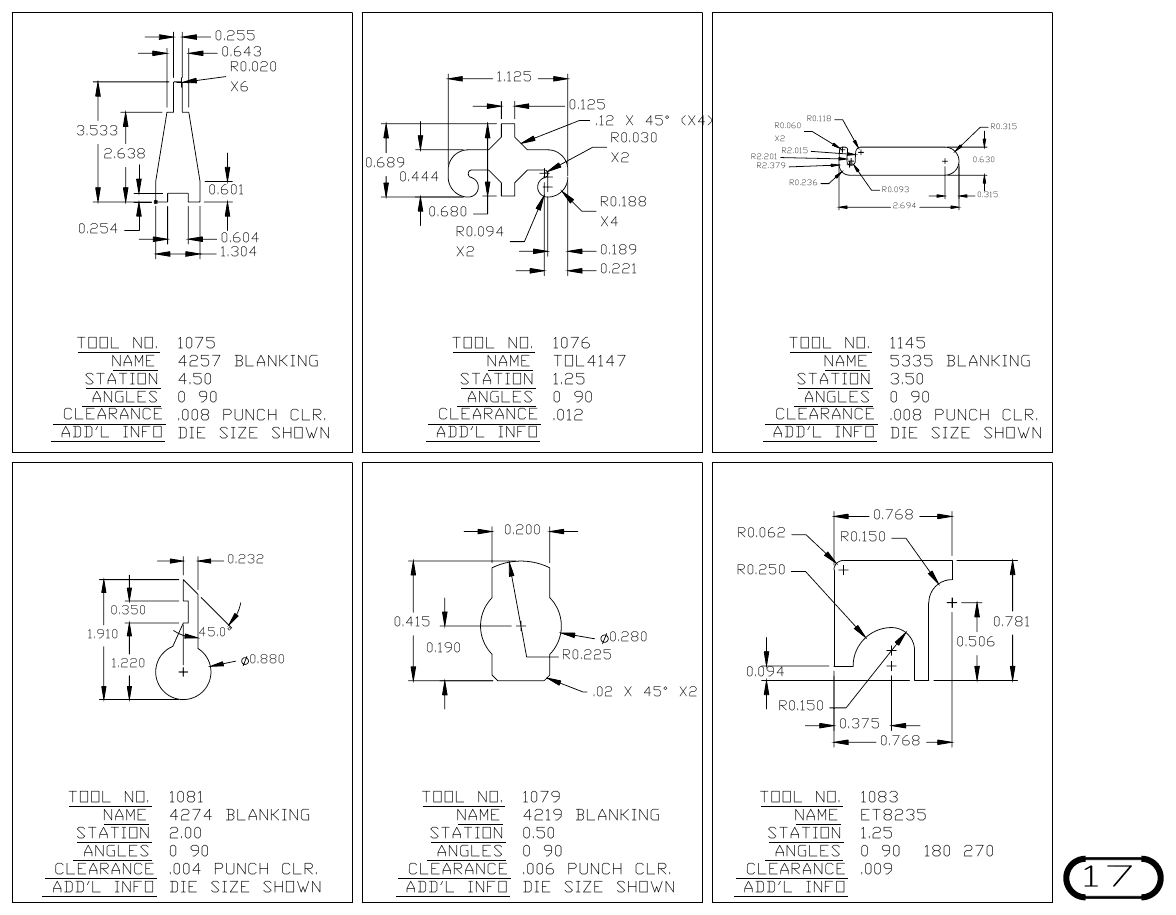

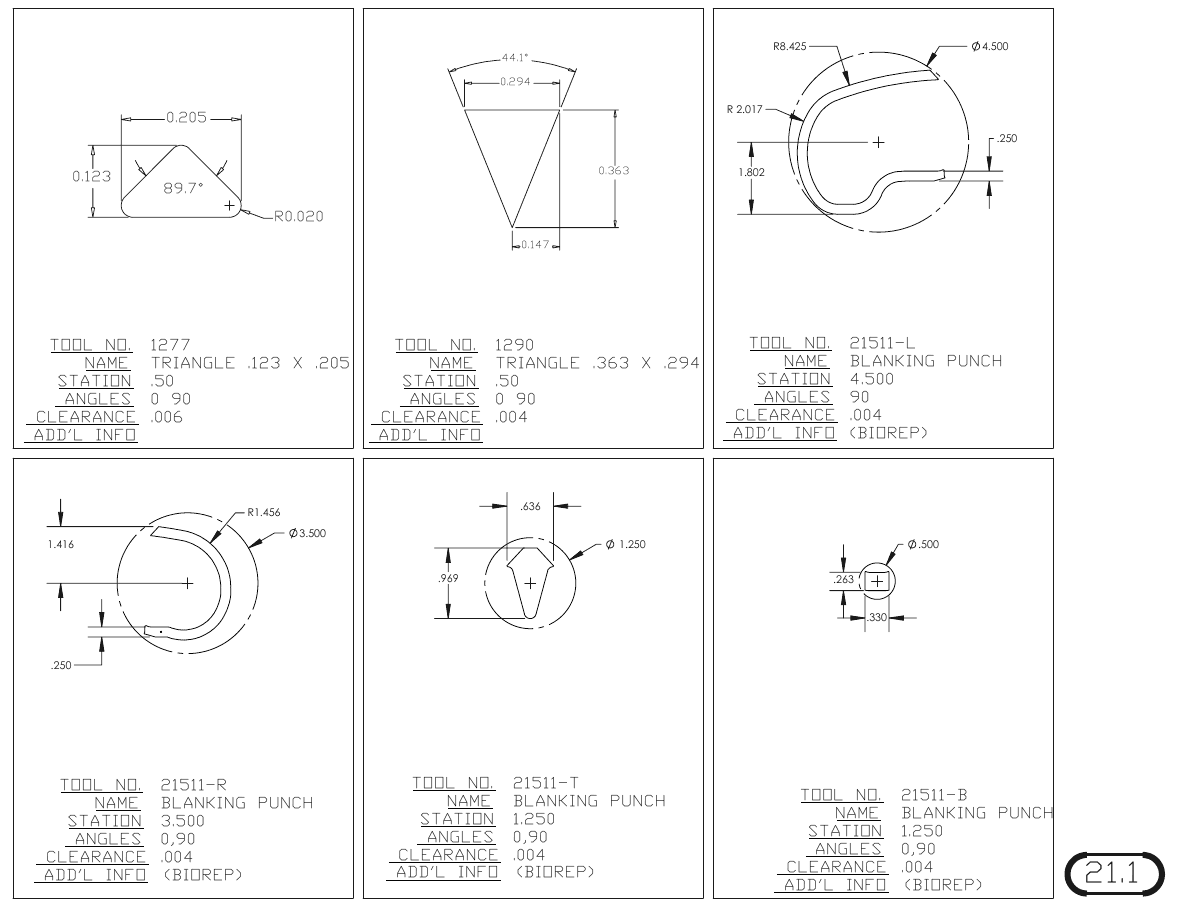

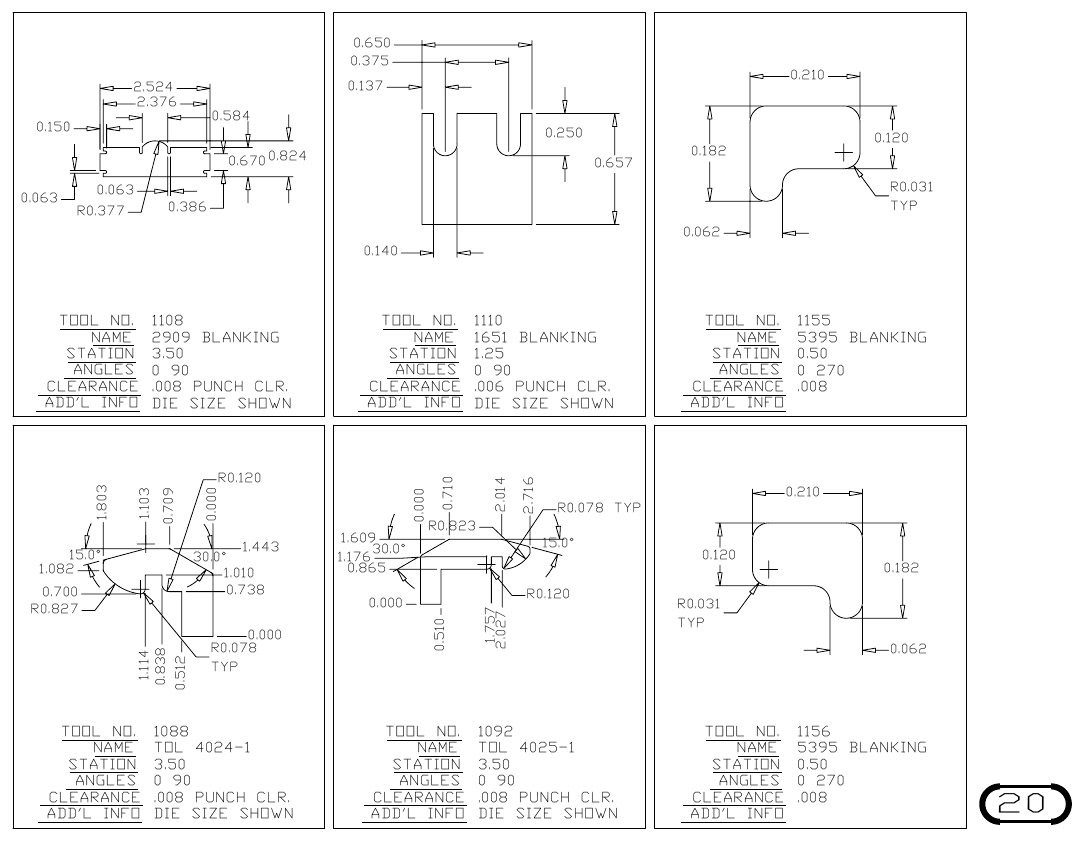

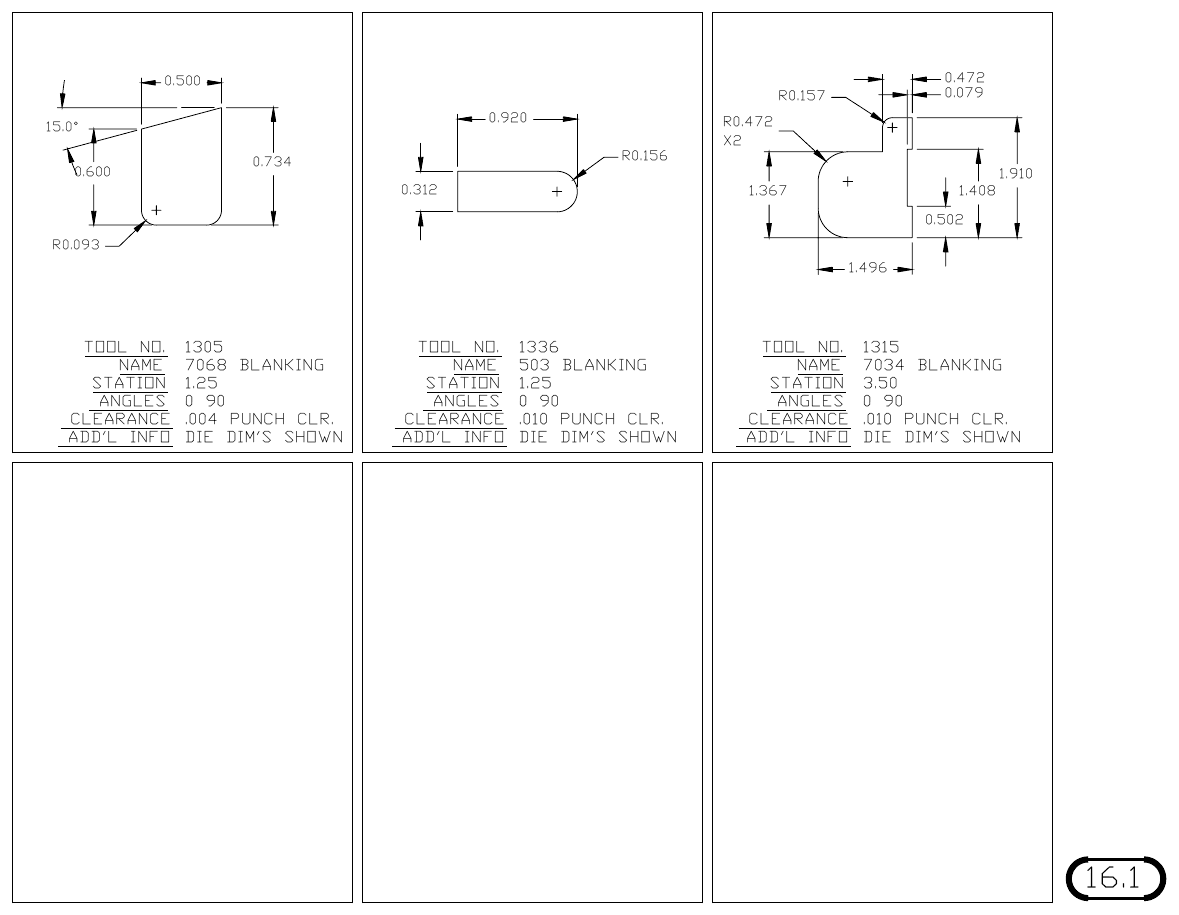

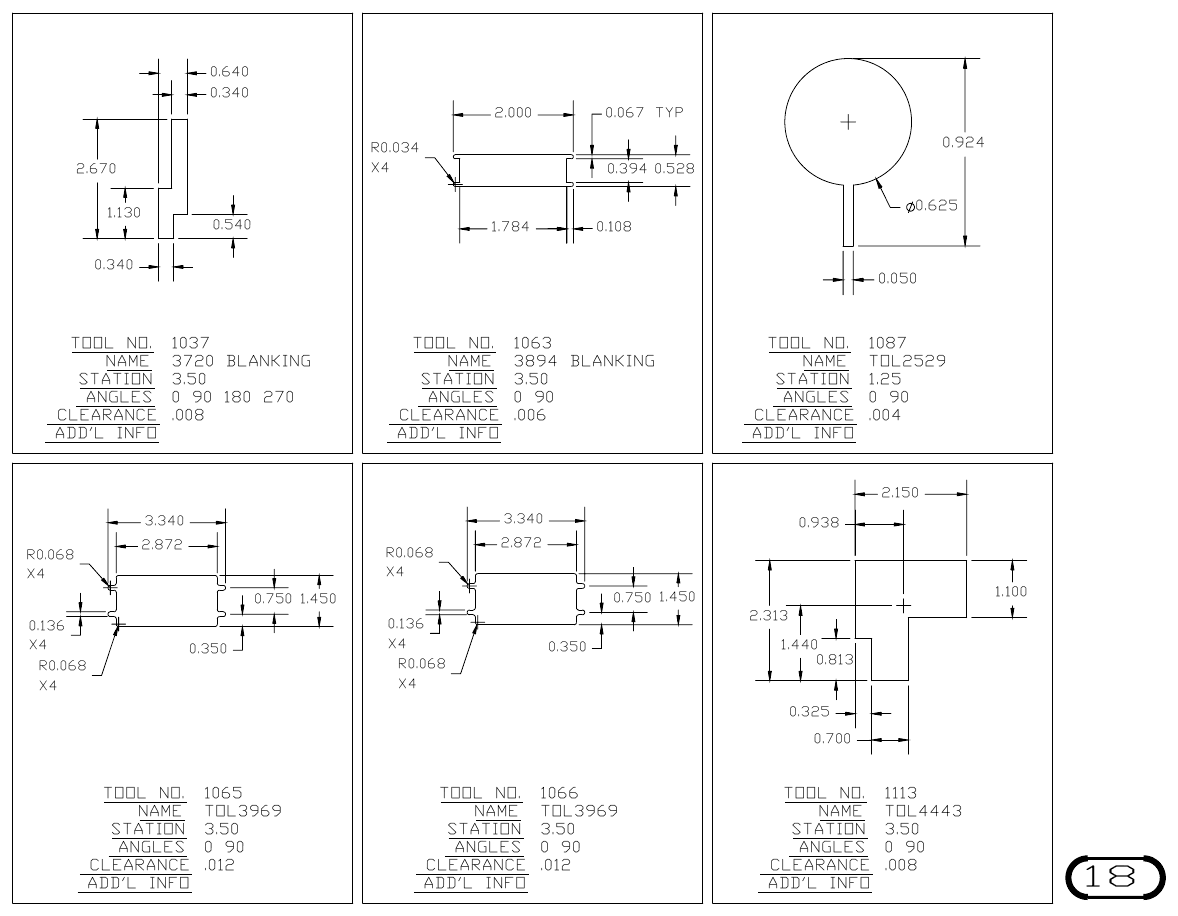

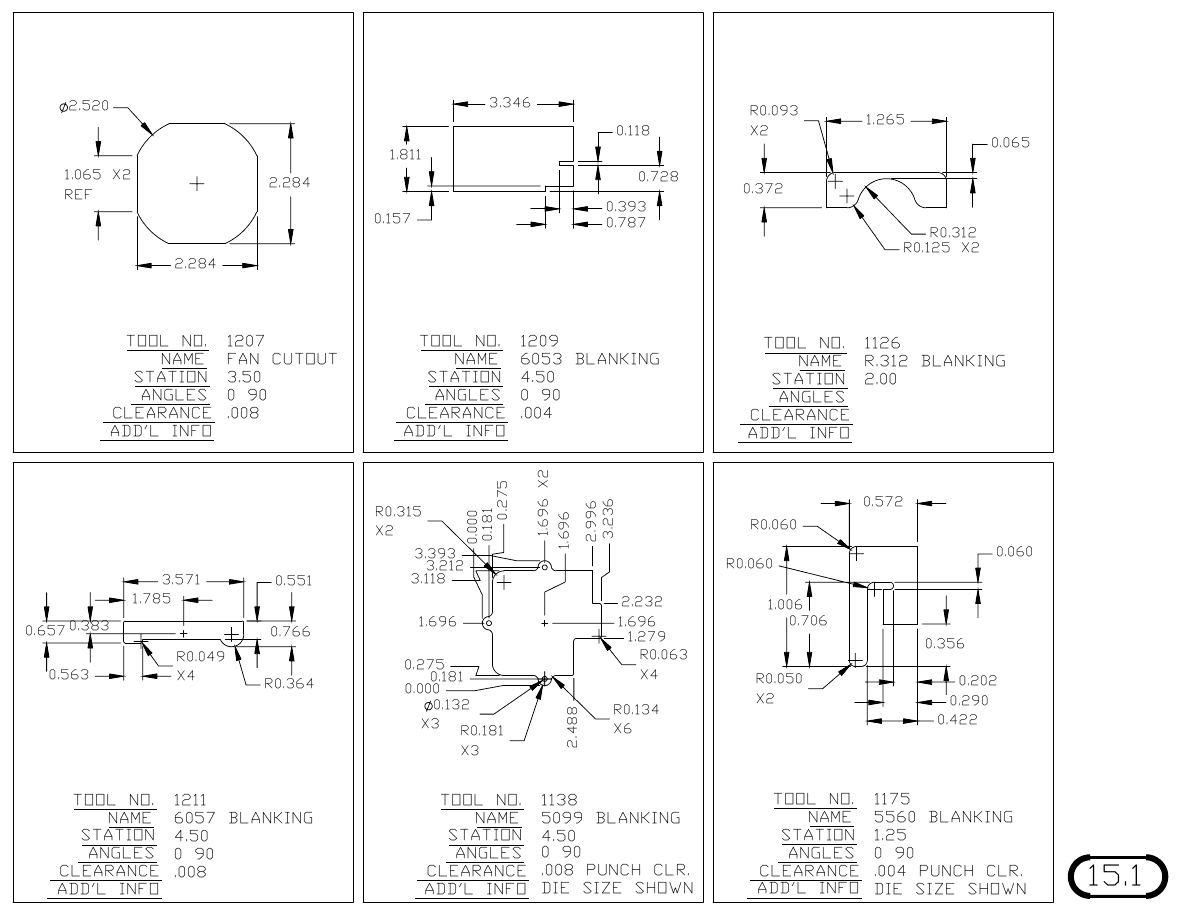

Custom Blanking Shapes and Triangles66 tools · 12 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1036	3708 BLANKING	1.25	.004 PUNCH CLR.
1050	5113 BLANKING	3.50	.008 PUNCH CLR.
1055	HORSESHOE	1.25	.008
1058	TOL3729	1.25	.012
1059	TOL 3850	0.50	.006
1060	TOL 3867-1	1.25	.004 15
1207	FAN CUTOUT	3.50	.008
1209	6053 BLANKING	4.50	.004
1126	R.312 BLANKING	2.00	—
1211	6057 BLANKING	4.50	.008
1138	5099 BLANKING	4.50	.008 PUNCH CLR.
1175	5560 BLANKING	1.25	.004 PUNCH CLR. 15.1
1224	6295 BLANKING	4.50	0.012 PUNCH CLR.
1228	6312 BLANKING	3.50	0.012 PUNCH CLR.
1236	6404 BLANKING	3.50	0.012 PUNCH CLR.
1237	6401 BLANKING	3.50	0.006 PUNCH CLR.
1238	6422 BLANKING	2.00	0.008 PUNCH CLR.
1269	107 BLANKING	3.50	0.004 PUNCH CLR. 15.2
1061	TOL3876-2	1.25	.004
1062	TOL3868	1.25	.004
1086	4281 BLANKING	1.25	.006 PUNCH CLR.
1064	TOL3946	1.25	.012
1091	TOL4379	4.50	0.008
1093	5718 BLANKING	4.50	0.008 PUNCH CLR.
1305	7068 BLANKING	1.25	.004 PUNCH CLR.
1336	503 BLANKING	1.25	.010 PUNCH CLR.
1315	7034 BLANKING	3.50	.010 PUNCH CLR.
1075	4257 BLANKING	4.50	.008 PUNCH CLR.
1076	TOL4147	1.25	.012
1145	5335 BLANKING	3.50	.008 PUNCH CLR.
1081	4274 BLANKING	2.00	.004 PUNCH CLR.
1079	4219 BLANKING	0.50	.006 PUNCH CLR.
1083	ET8235	1.25	.009 17
1037	3720 BLANKING	3.50	.008
1063	3894 BLANKING	3.50	.006
1087	TOL2529	1.25	.004
1065	TOL3969	3.50	.012
1066	TOL3969	3.50	.012
1113	TOL4443	3.50	.008
1033	3558 BLANKING	2.00	.008 PUNCH CLR.
1038	3775 BLANKING	2.00	.002 PUNCH CLR.
1041	3924 BLANKING	3.50	.004 PUNCH CLR.
1070	4730 BLANKING	3.50	.008 PUNCH CLR.
1073	4774 BLANKING	2.00	.008 PUNCH CLR.
1097	4392 BLANKING	1.25	.008 PUNCH CLR. 19
1108	2909 BLANKING	3.50	.008 PUNCH CLR.
1110	1651 BLANKING	1.25	.006 PUNCH CLR.
1155	5395 BLANKING	0.50	.008
1088	TOL 4024-1	3.50	.008 PUNCH CLR.
1092	TOL 4025-1	3.50	.008 PUNCH CLR.
1156	5395 BLANKING	0.50	.008 20
1165	5495 BLANKING	1.25	.014
1173	5536 BLANKING	2.00	.004 PUNCH CLR.
1181	5571 BLANKING	3.50	.012 PUNCH CLR.
1140	5061 BLANKING	4.50	.010 PUNCH CLR.
1098	3457 BLANKING	1.25	.003 PUNCH CLR.
1144	5270 BLANKING	0.50	.004 PUNCH CLR. 21
1277	TRIANGLE .123 X .205	.50	.006
1290	TRIANGLE .363 X .294	.50	.004
21511-L	BLANKING PUNCH	4.500	.004
21511-R	BLANKING PUNCH	1.250	—
21511-T	—	—	—
21511-B	BLANKING PUNCH	1.250	—
21062-1	BLANKING .256 x .472	1.250	.006
21062-2	BLANKING .363 X .294	1.250 NAME BLANKING 2.291 X 4.257	.006 ANGLES 0
21062-3	BLANKING 2.291 X 4.257	4.500	.004

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

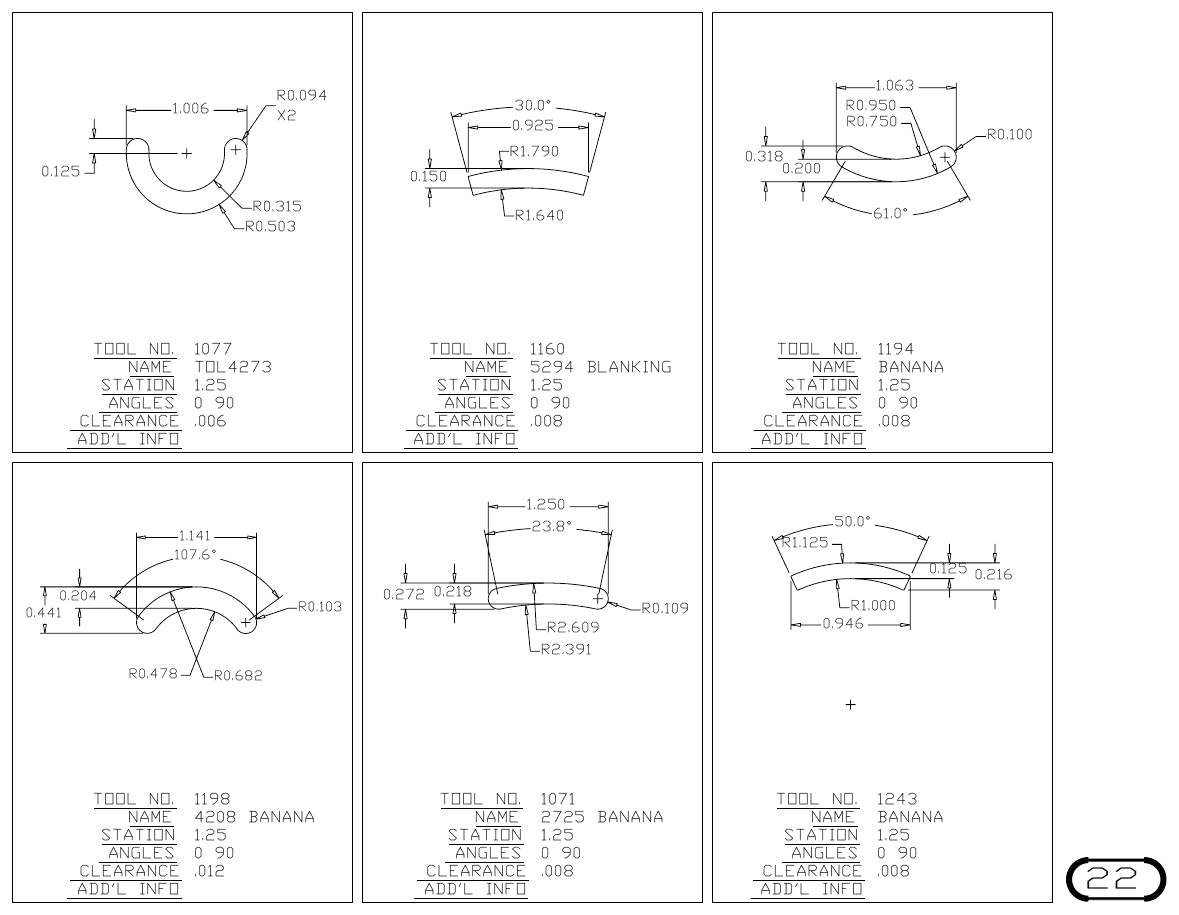

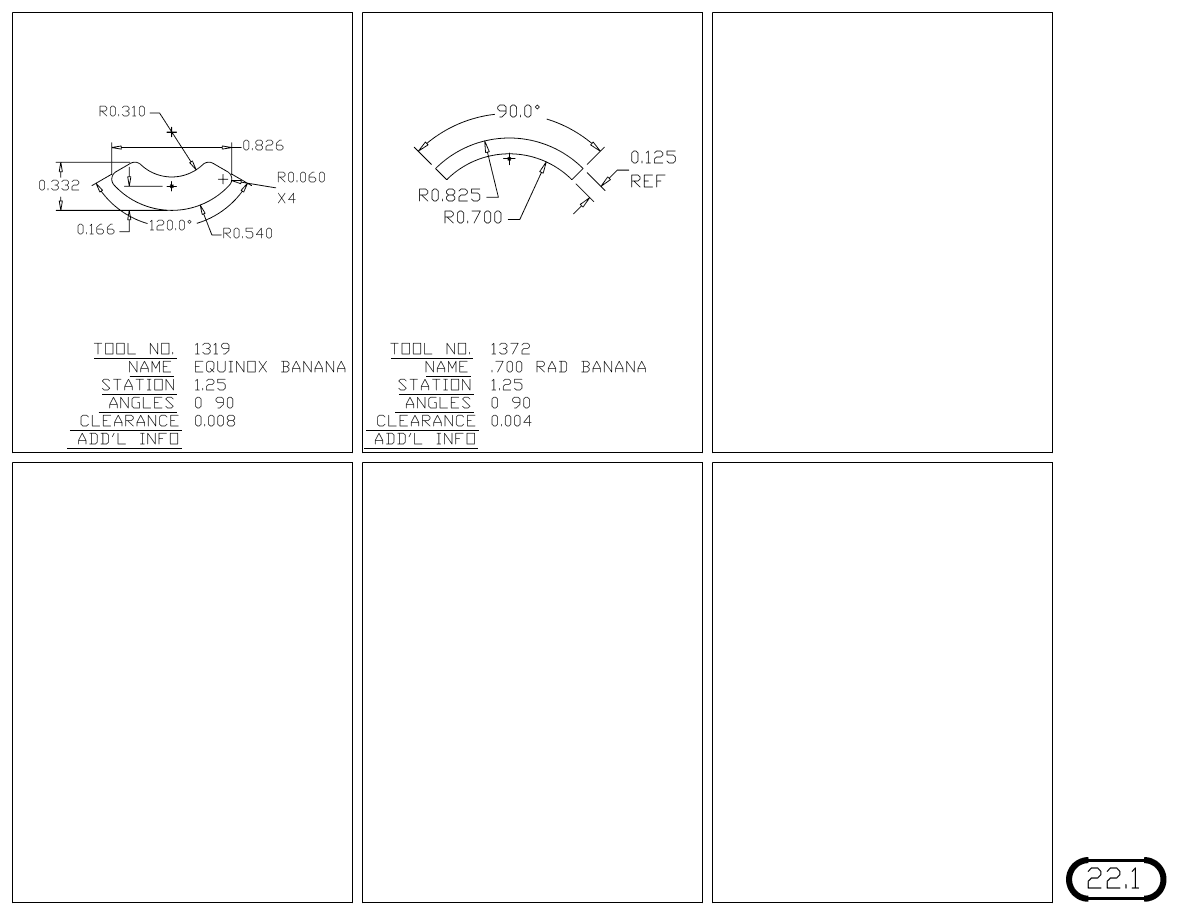

Banana Punch8 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1077	TOL4273	1.25	.006
1160	5294 BLANKING	1.25	.008
1194	BANANA	1.25	.008
1198	4208 BANANA	1.25	.012
1071	2725 BANANA	1.25	.008
1243	BANANA	1.25	.008 22
1319	EQUINOX BANANA	1.25	0.008
1372	.700 RAD BANANA	1.25	0.004

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

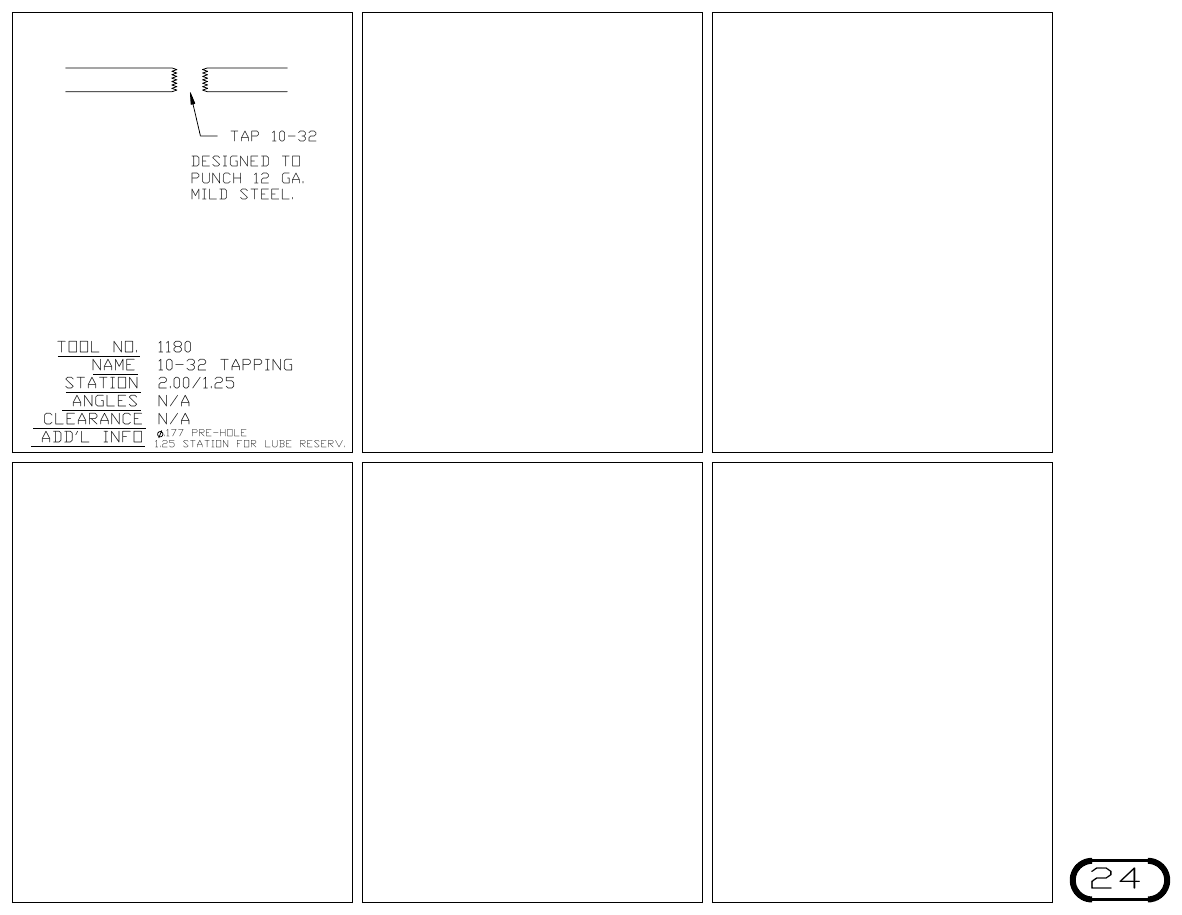

Tapping1 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1180	10-32 TAPPING	2.00/1.25	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

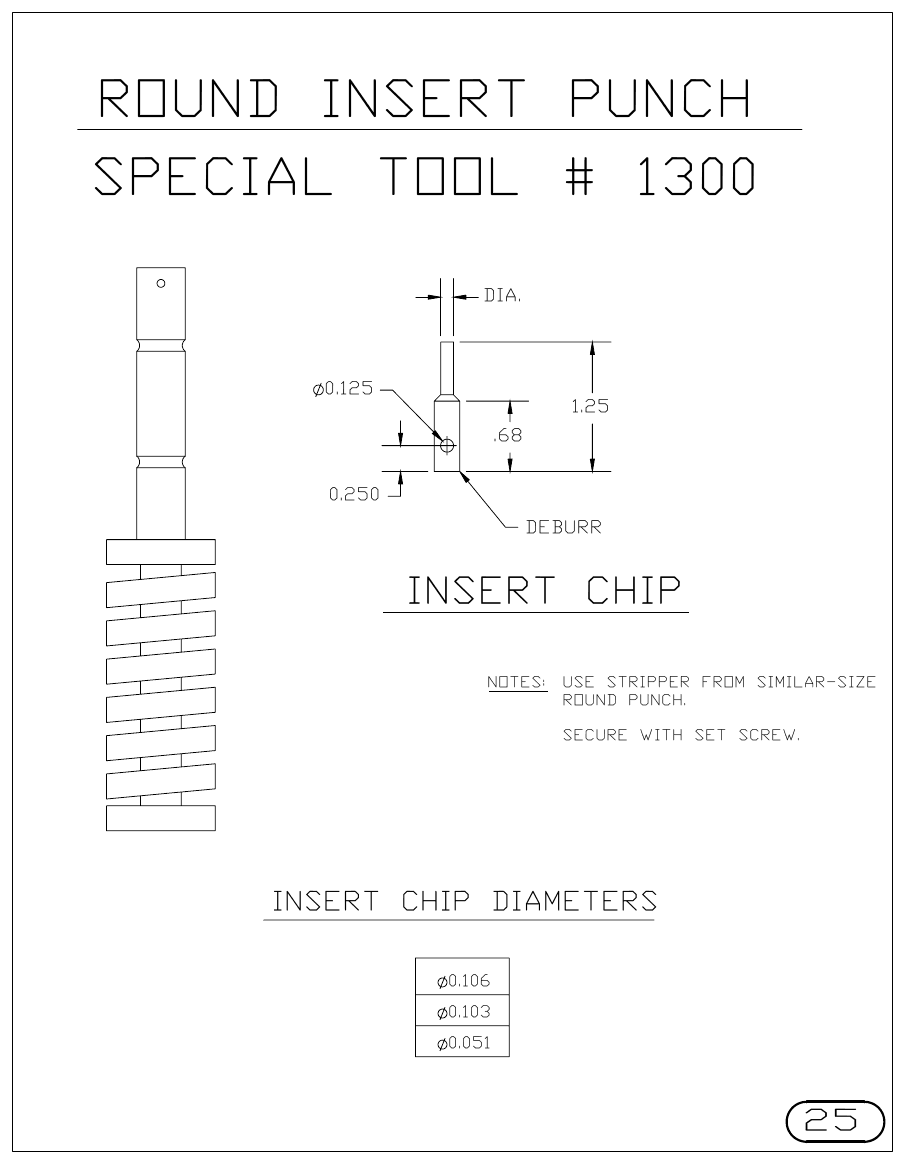

Round Insert PunchSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

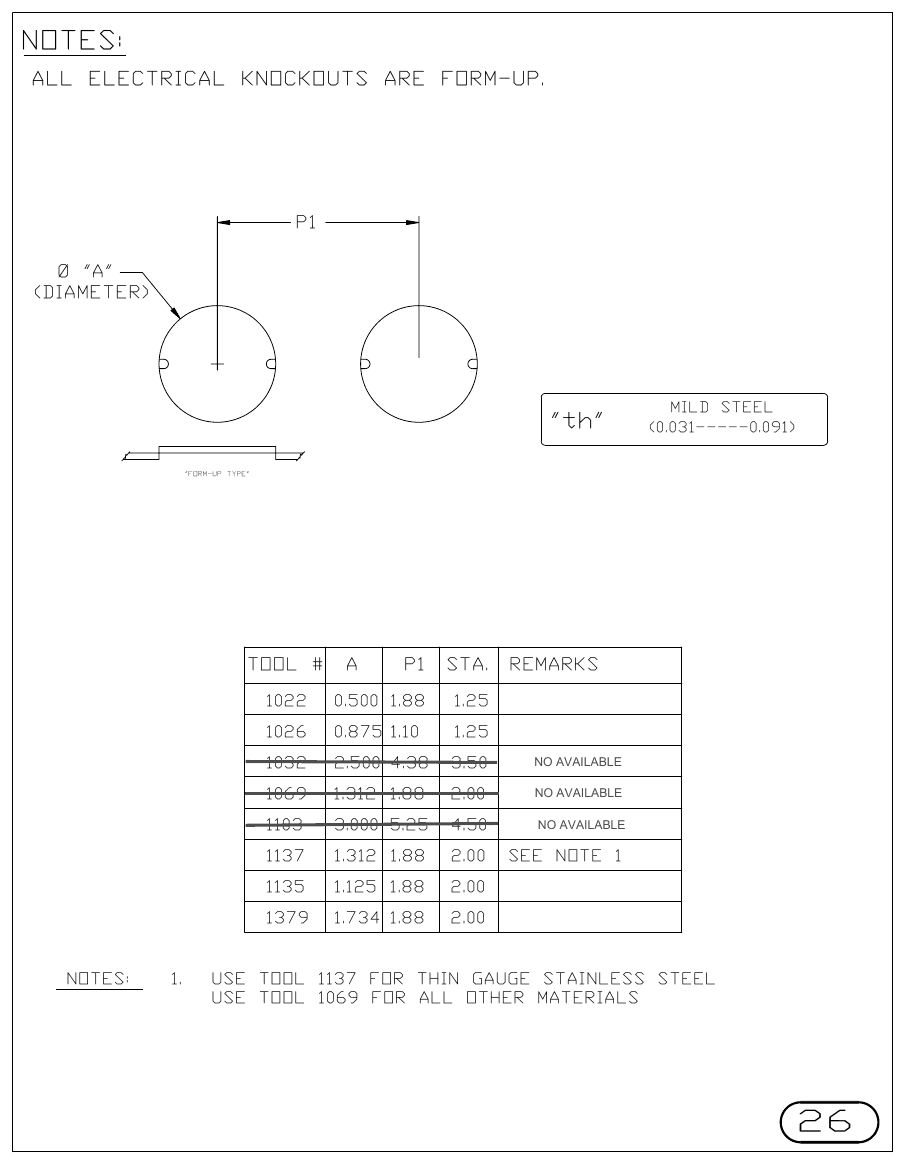

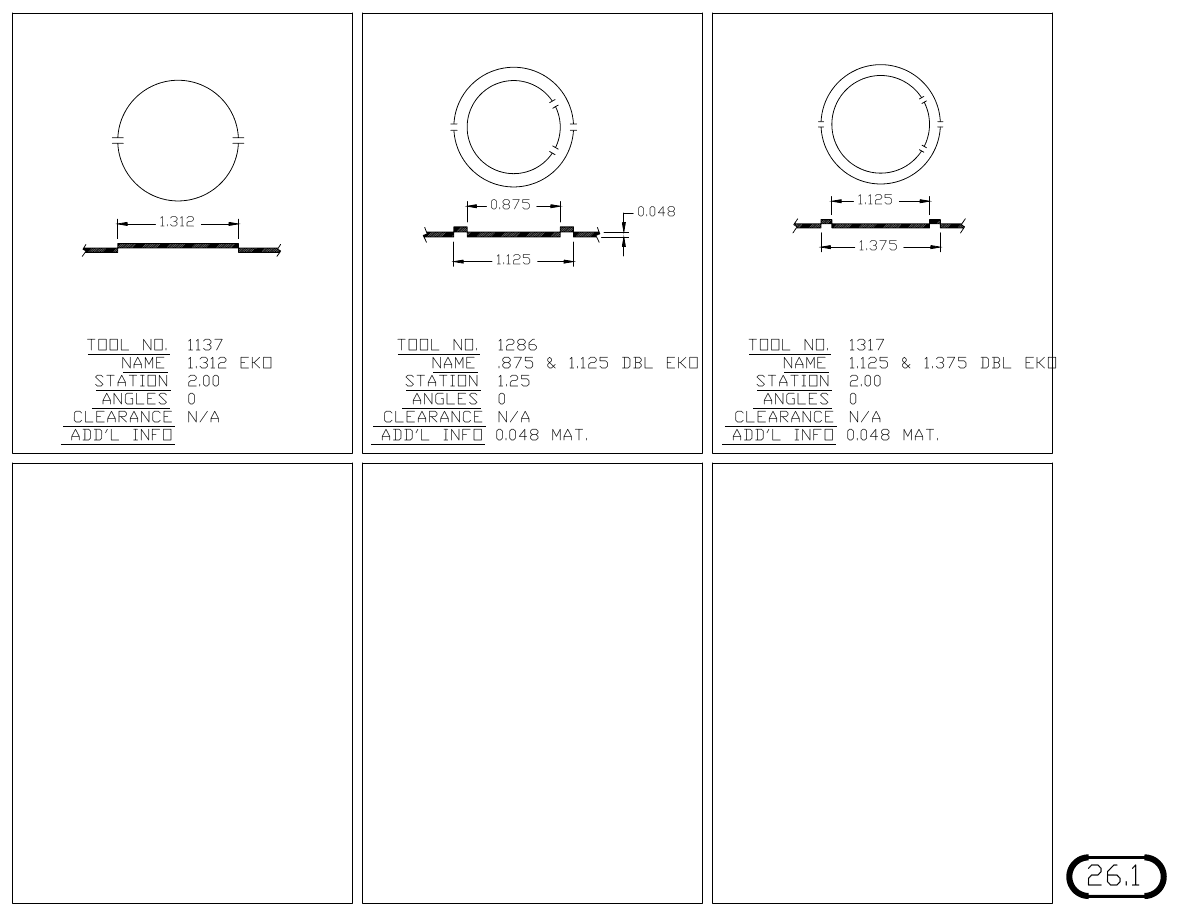

Knockouts (EKO)3 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1137	1.312 EKO	2.00	N/A
1286	.875 & 1.125 DBL EKO	1.25	N/A
1317	1.125 & 1.375 DBL EKO	2.00	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

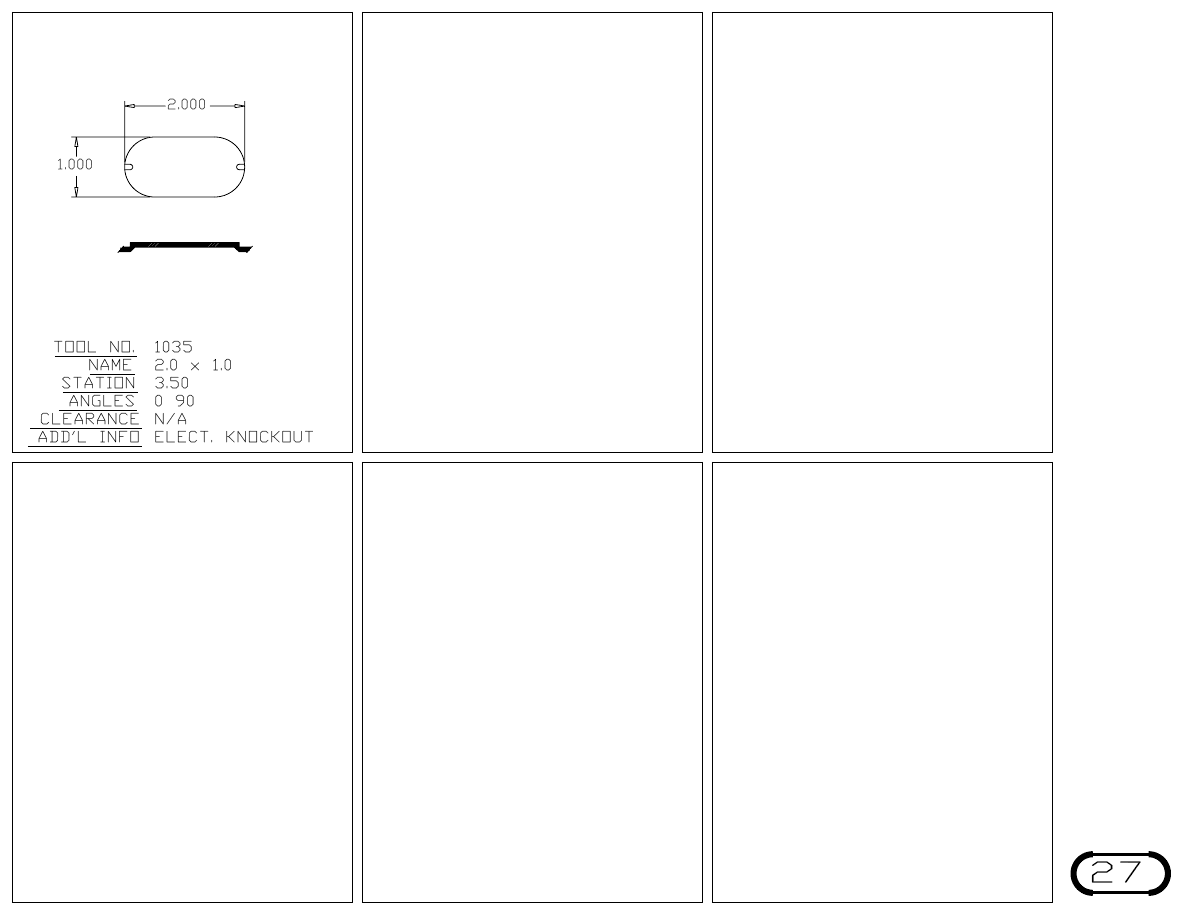

Shaped Knockouts1 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1035	2.0 x 1.0	3.50	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

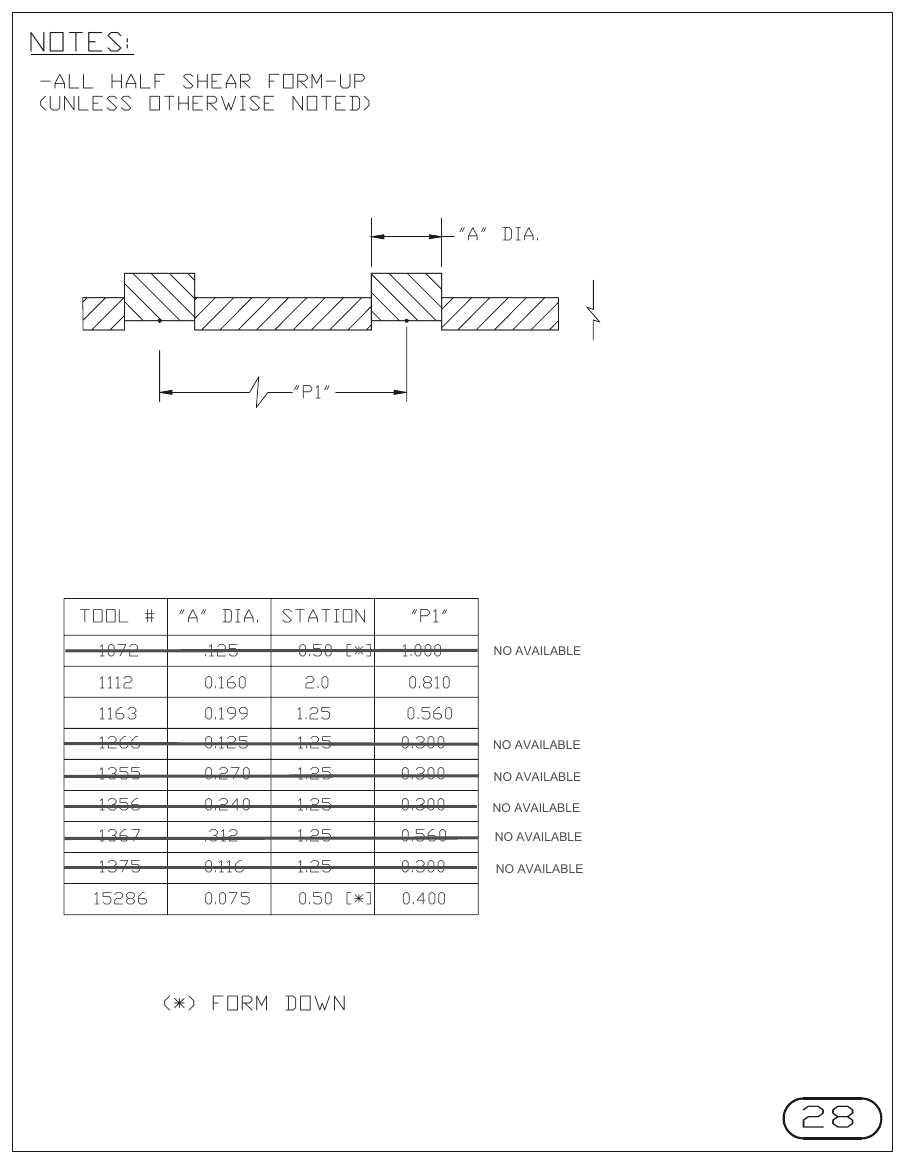

Half-ShearSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

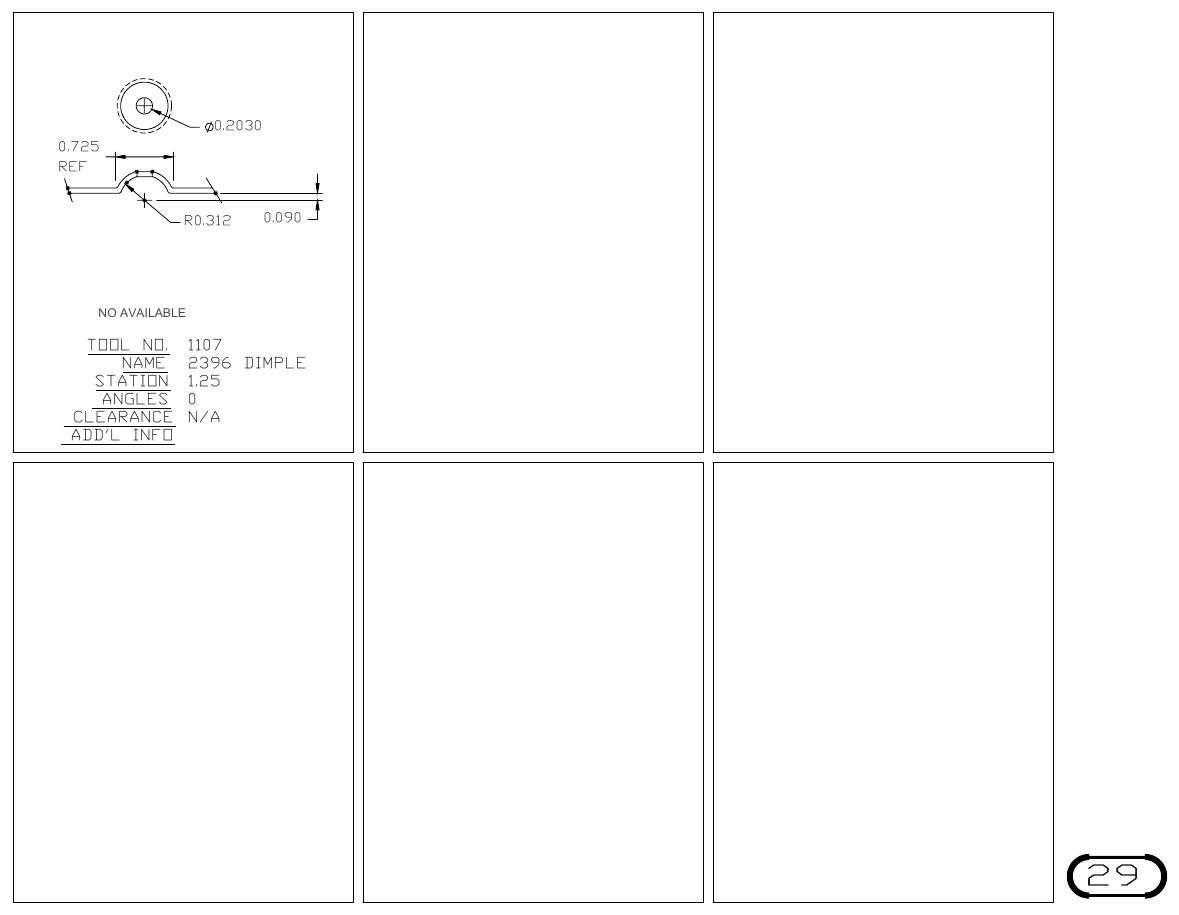

Dimple1 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1107	2396 DIMPLE	1.25	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

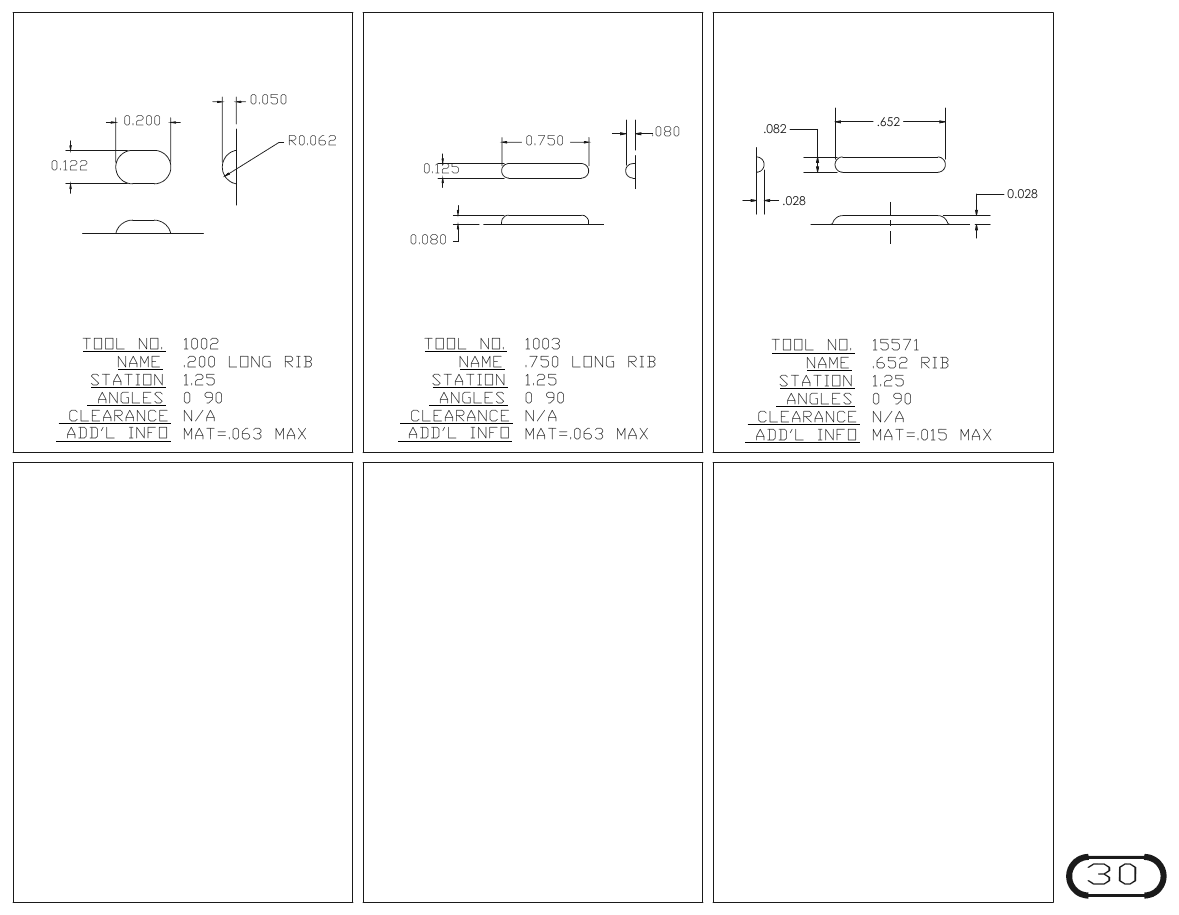

Stiffener Ribs3 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1002	.200 LONG RIB	1.25	N/A
1003	.750 LONG RIB	1.25	N/A
15571	.652 RIB	1.25	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

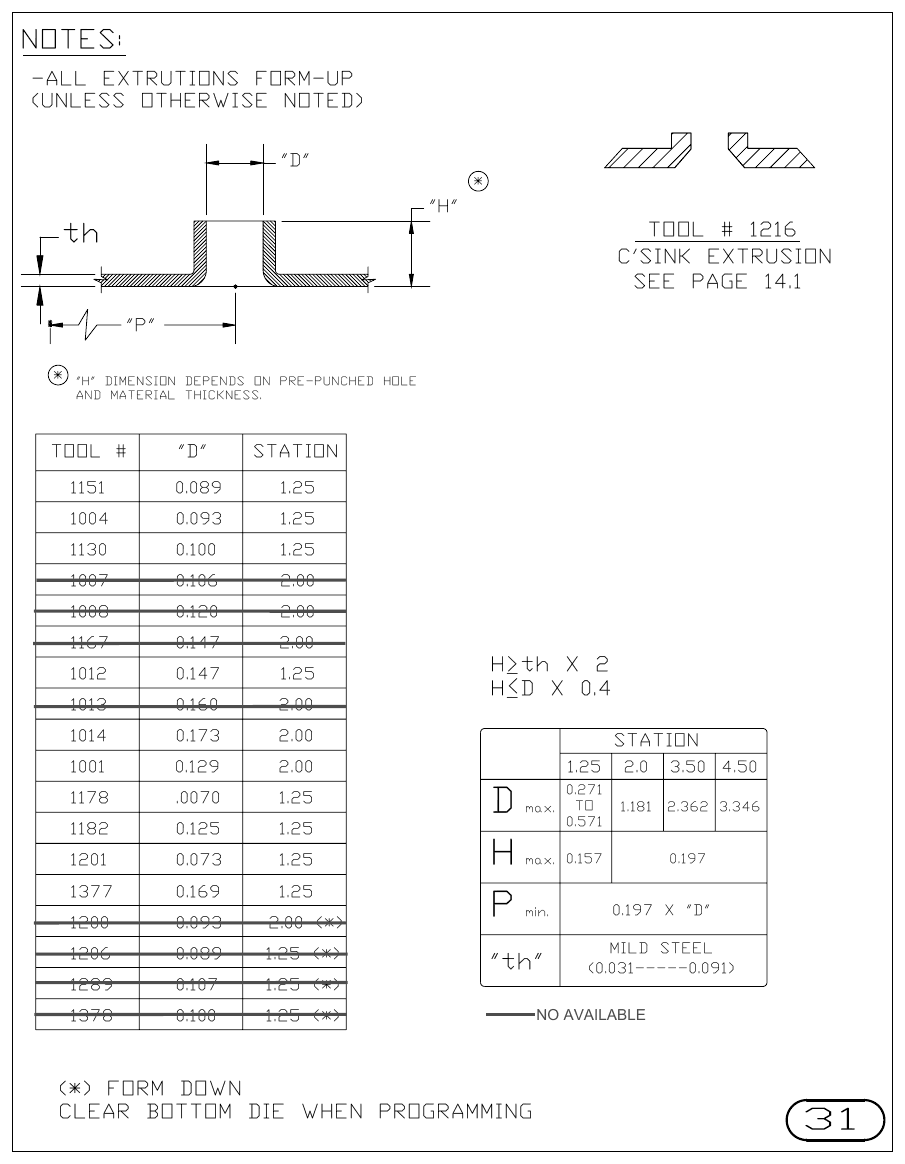

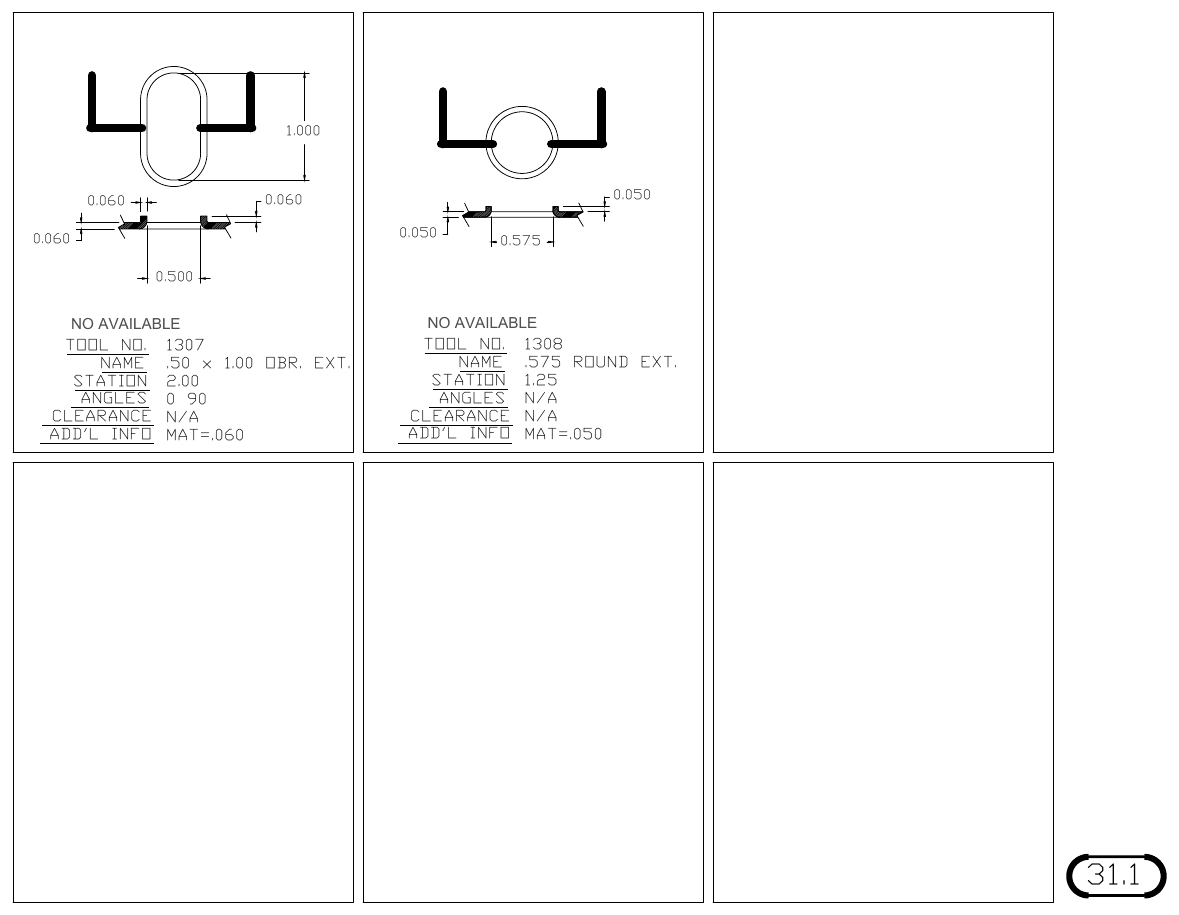

Extrusions2 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1307	.50 x 1.00 OBR. EXT.	2.00	N/A
1308	.575 ROUND EXT.	1.25	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

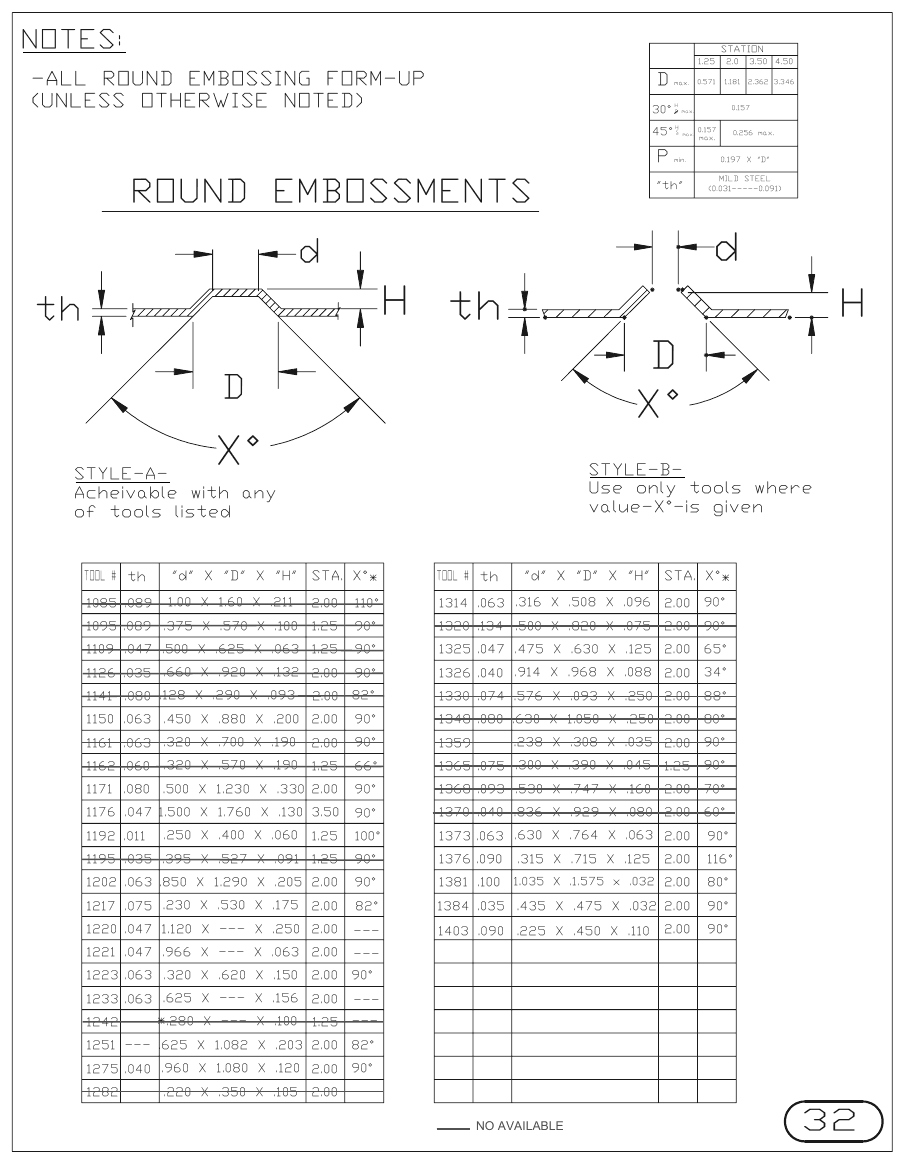

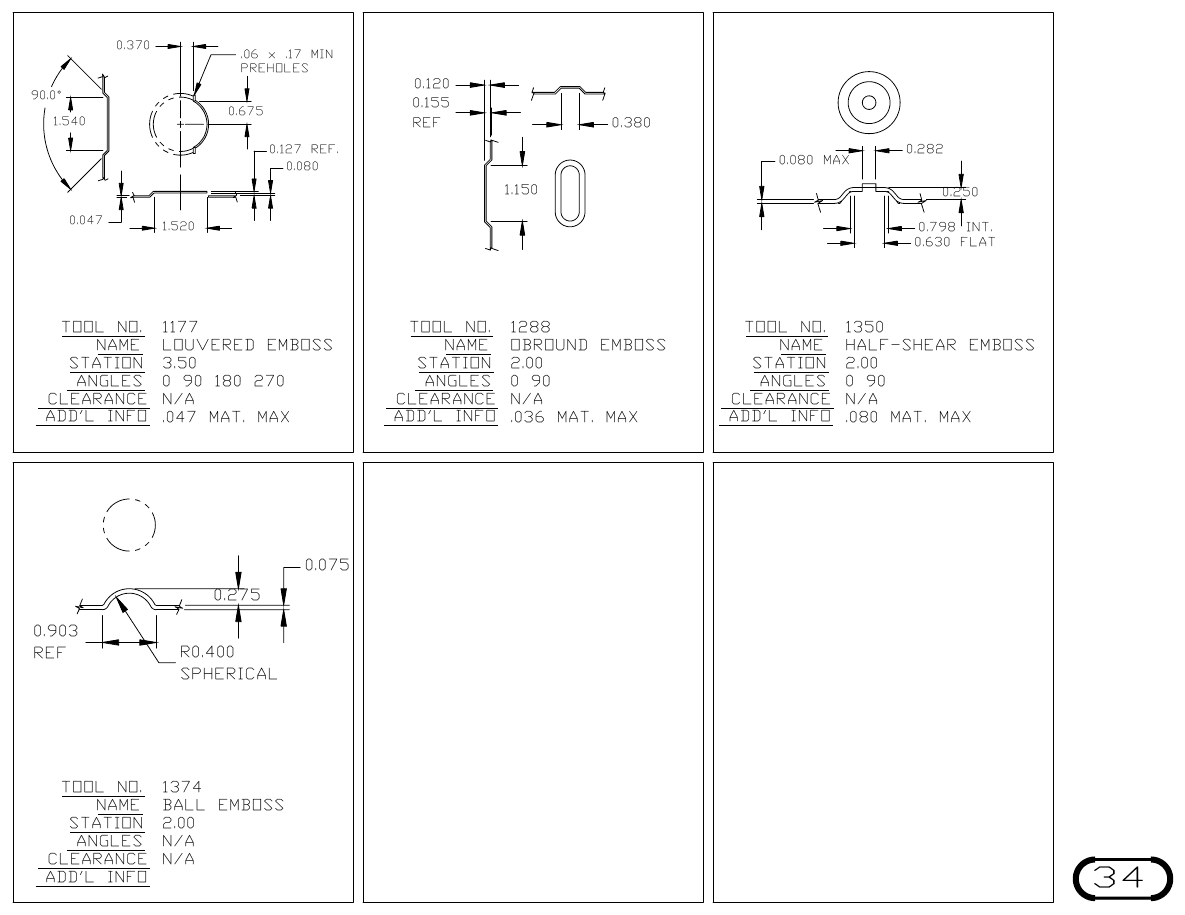

Embosses4 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1177	LOUVERED EMBOSS	3.50	N/A
1288	OBROUND EMBOSS	2.00	N/A
1350	HALF-SHEAR EMBOSS	2.00	N/A
1374	BALL EMBOSS	2.00	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

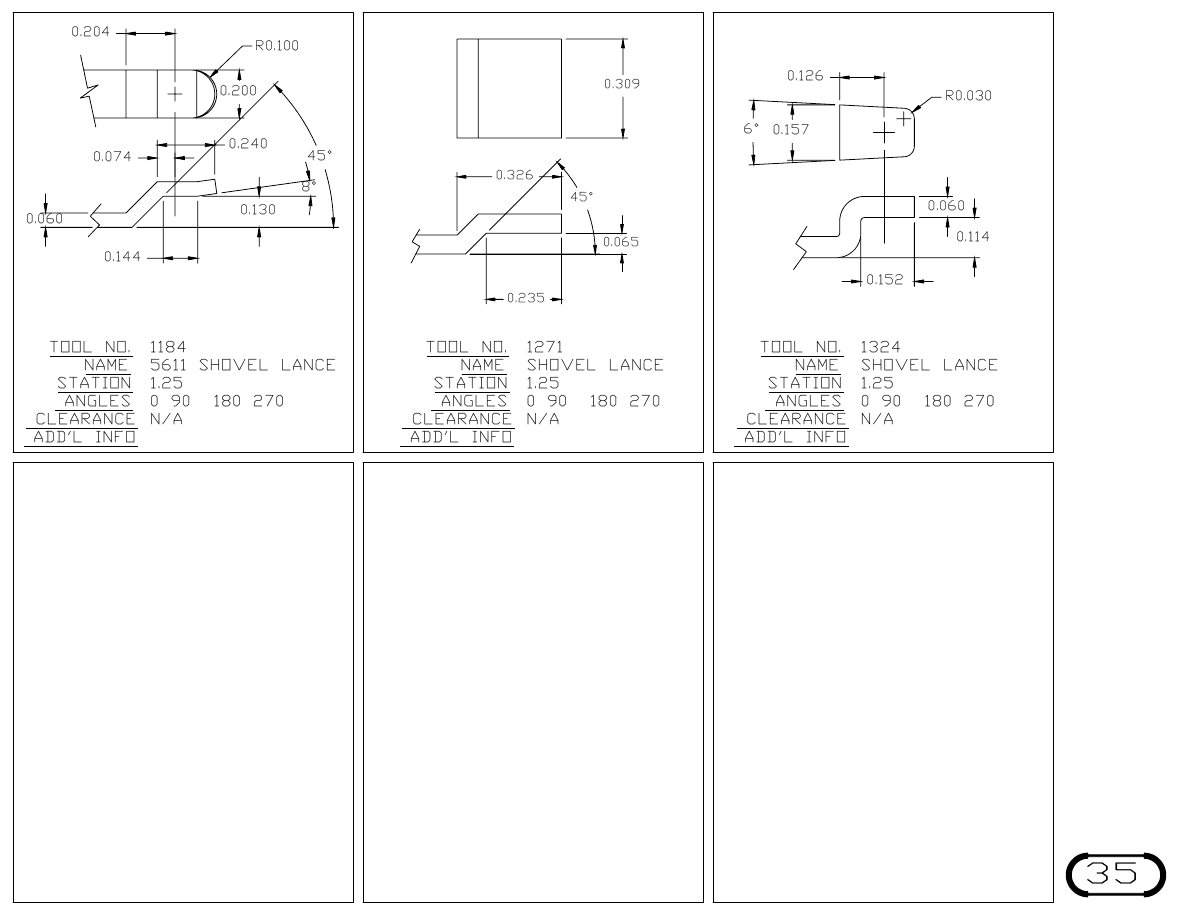

Special Lances3 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1184	5611 SHOVEL LANCE	1.25	N/A
1271	SHOVEL LANCE	1.25	N/A
1324	SHOVEL LANCE	1.25	N/A

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

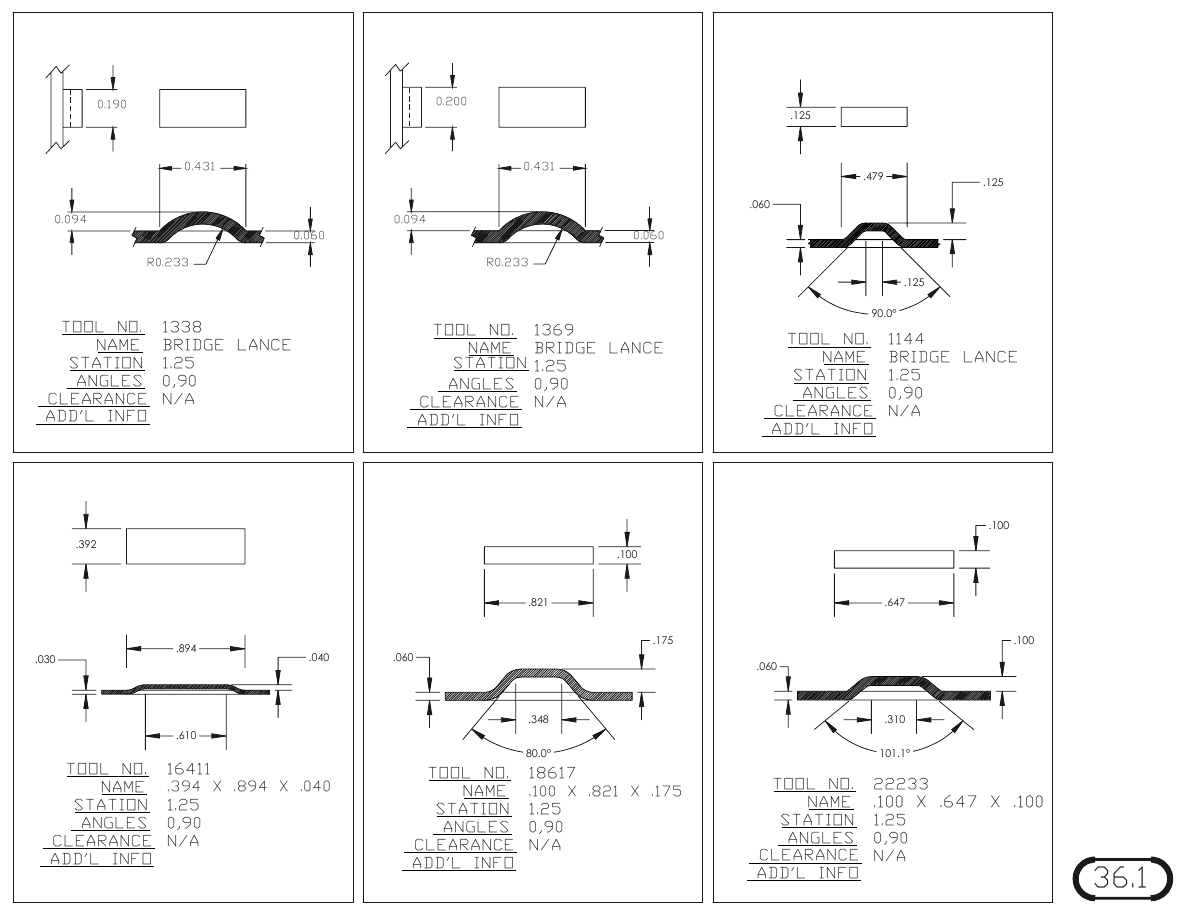

Single Bridge Lance5 tools · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1338	BRIDGE LANCE	1.25	—
1369	—	—	—
1144	BRIDGE LANCE	1.25	—
16411	.394 X .894 X .040	1.25	N/A
18617	.100 X .821 X .175	1.25 NAME .100 X .647 X .100	N/A ANGLES 0,90

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

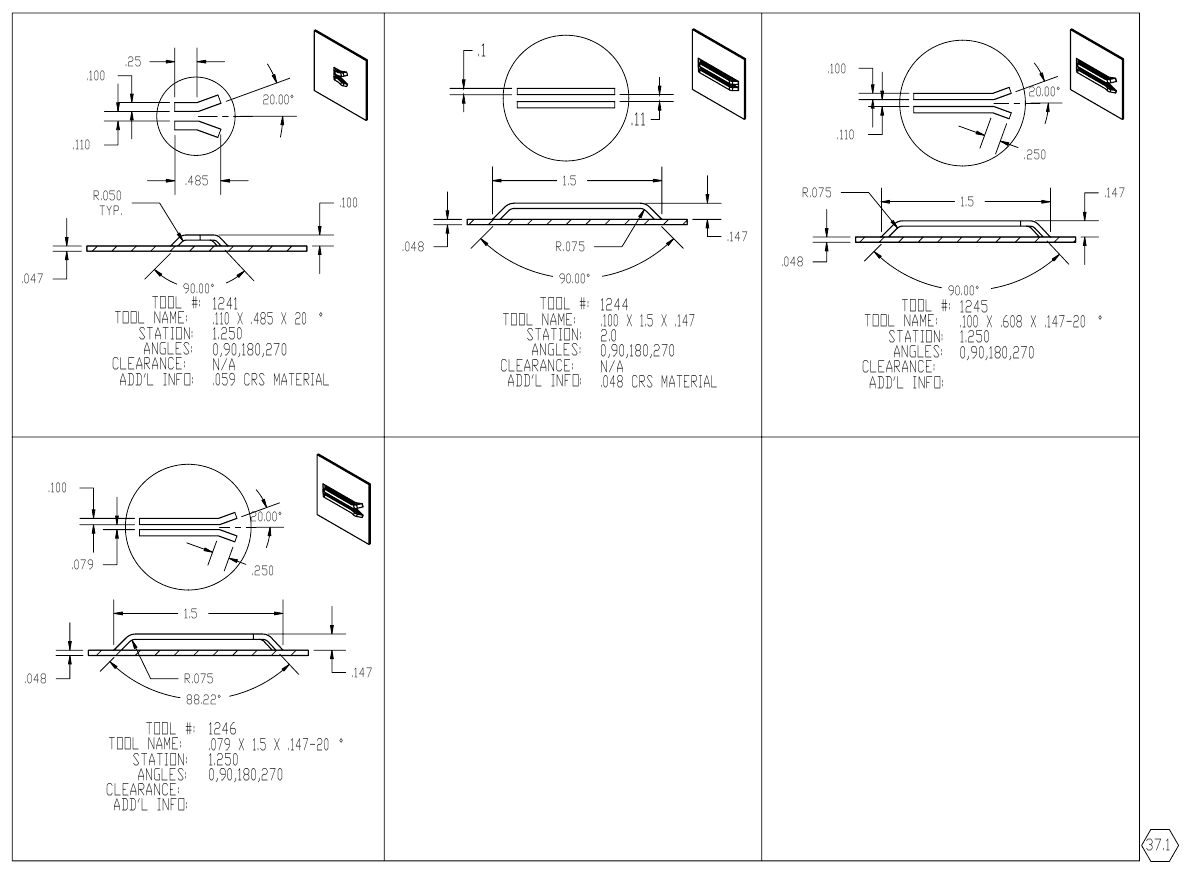

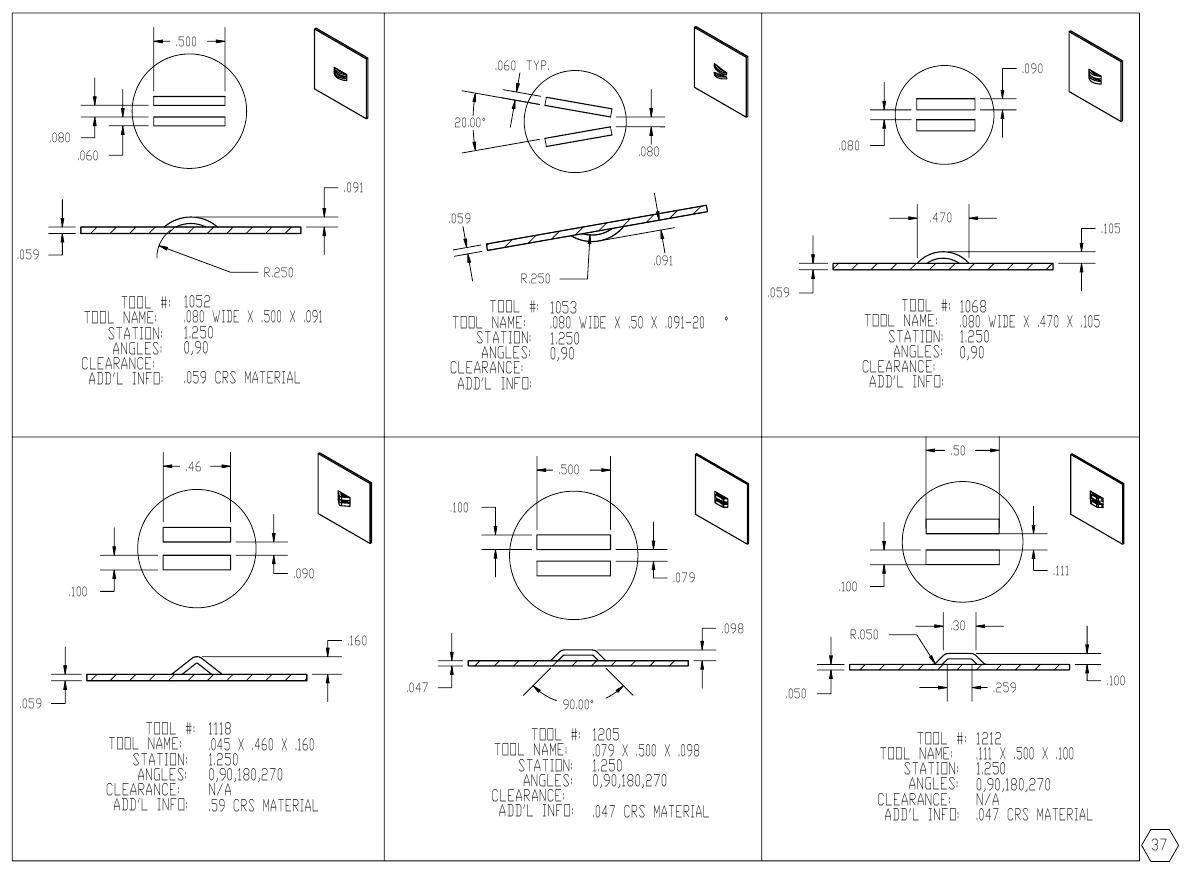

Double Bridge LanceSee drawings · 2 drawing sheets · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

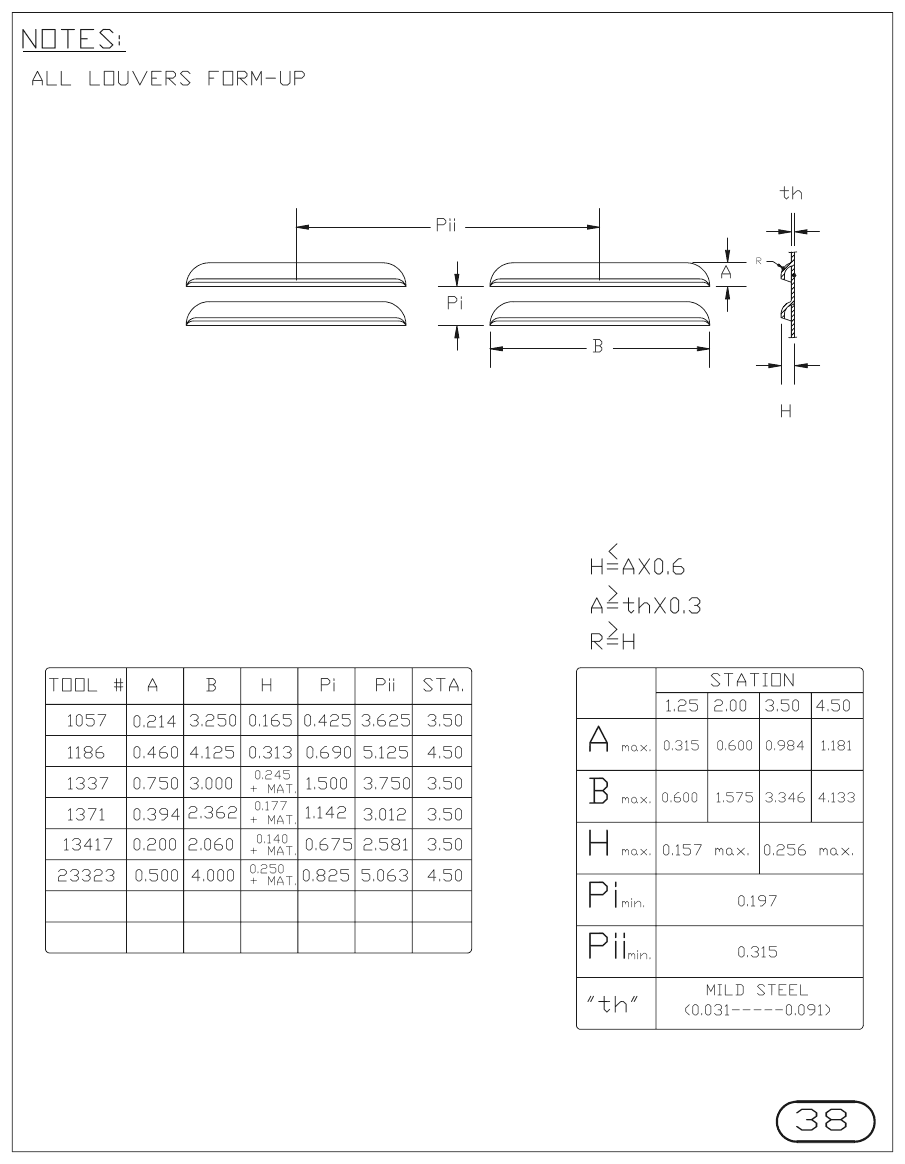

LouversSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

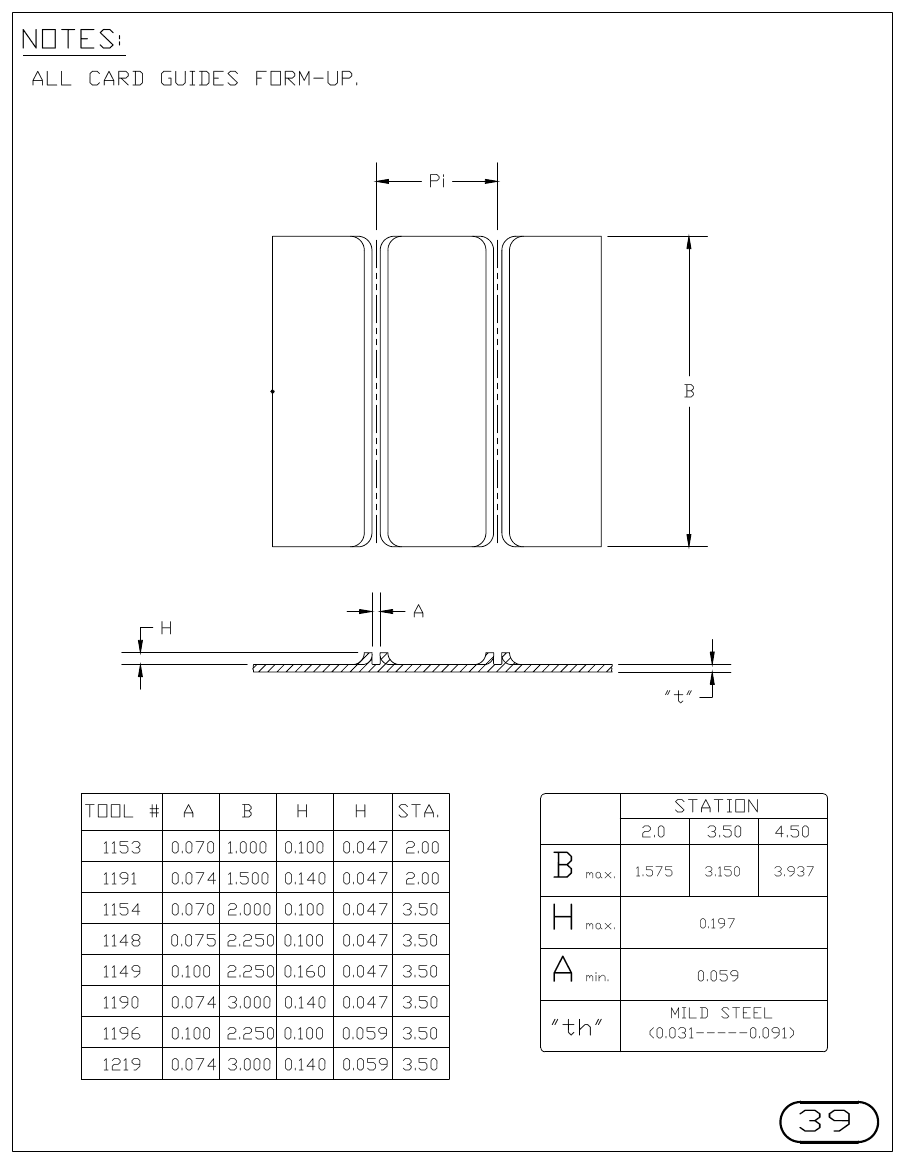

Card GuidesSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

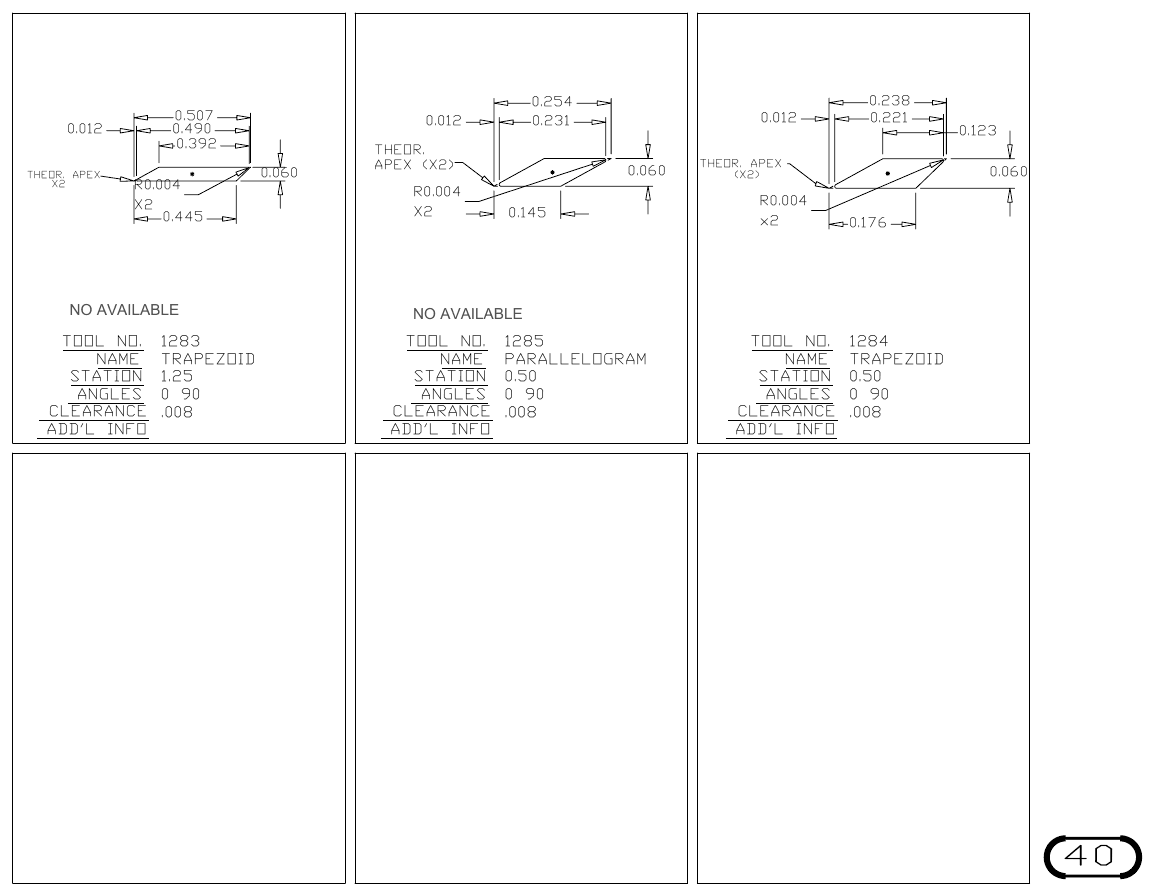

Trapezoid and Parallelogram3 tools · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Tool #	Name / Size	Station	Clearance
1283	TRAPEZOID	1.25	.008
1285	PARALLELOGRAM	0.50	.008
1284	TRAPEZOID	0.50	.008

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

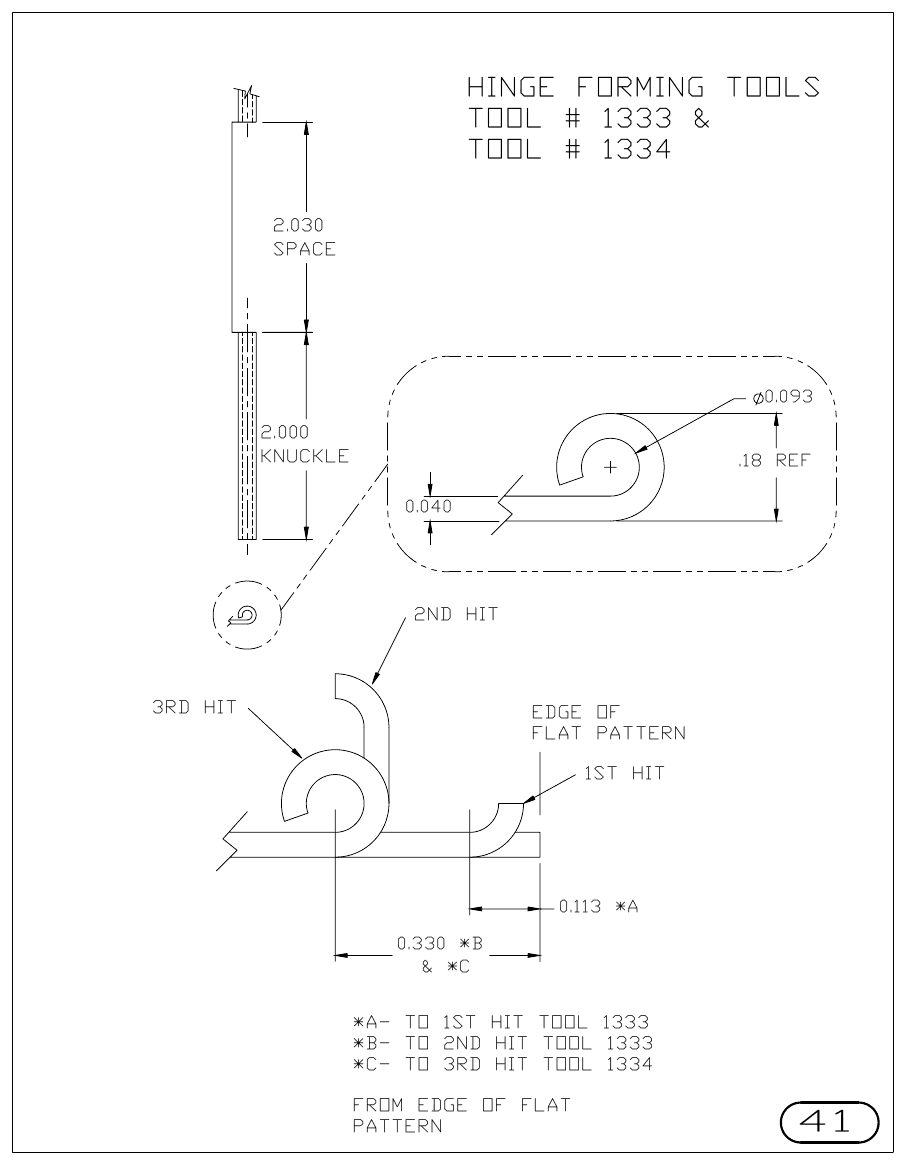

Hinge FormingSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

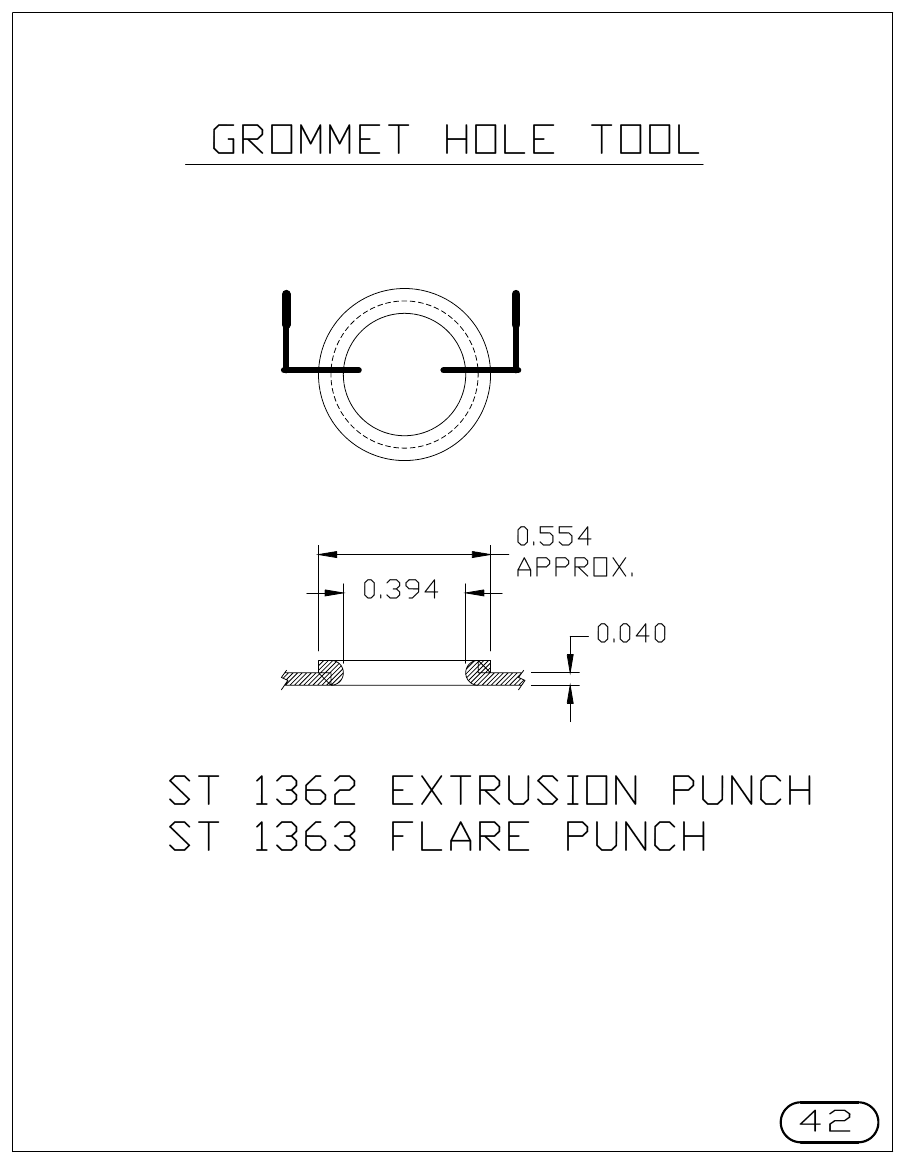

Rollover and GrommetSee drawings · 1 drawing sheet · click a drawing to enlargeVIEW ▾

Drawings show tool number, station, available angles and clearance. Click any sheet to open it full size.

Download

The Complete Tool List

Prefer to work offline? The full list, with every special tool drawing and the complete standard inventory, is available as a PDF.

Download the Tool List (PDF)

Have a Part in Mind?

Send Us the Drawing

Send the PDF and STEP file and we will match your features to our tooling, flag anything that would need a special tool, and quote it in 24 to 48 hours.

Request a Quote

MJM Manufacturing, Inc. · 5205 NW 161 Street, Miami Gardens, FL 33014 · (305) 620-2020 · sales@mjmmfg.com
Five Amada Lasers · CNC Turret Punching · AS9100 & ISO 9001 · ITAR Registered

Ronald Travieso

Working with MJM Manufacturing has been one of the best vendor experiences I've had. The parts matched my samples perfectly, and even the packing was done with real care — clean, organized, and professional. Of all the vendors I've worked with, they're by far the most organized and quality-focused. Great communication from start to finish. Highly recommend them for custom fabrication work.

Robert Cooler

MJM is wonderful to deal with. They have worked diligently and have produced my projects thus far to the highest standards.

Israel Schechter

I have been ordering parts from MJM Manufacturing for many years, and they have consistently exceeded my expectations. Their quality, professionalism, and attention to detail are outstanding. Every order is handled efficiently, delivered on time, and manufactured to the highest standards. The team at MJM is knowledgeable, responsive, and always willing to go the extra mile to ensure customer satisfaction. It is rare to find a company that maintains such a high level of consistency over many years. I highly recommend MJM Manufacturing to anyone looking for a reliable partner for complex, precision sheet metal parts and assemblies. I. Schechter, Former President of GBI Intralogistics Solutions, Current Owner/President of IPSTEC, Aventura, Florida

Richard Havass

As a customer, I have been working with MJM Manufacturing for approximately 35 years. The expertise of Mike Mijares and his team at MJM is top notch. Whenever I have a new part design, I typically review the design of the part with MJM to ensure that I am using the most cost-efficient manufacturing process to produce the parts as economically as possible. There was a part that we had made years ago using a progressive die to emboss a curved channel into a sheet metal part. The cost of the progressive die for this part was $55K. The redesign of the part from MJM consisted of $1200 in tooling to make the new part profile. Parts came out great and saved tens of thousands in tooling. Lastly, whether MJM produces a prototype or a production run, the appearance of the part is pristine, no tool marks or scratches on any part. In the 35 years that I have worked with Mike and his team, I have found them to be one big family. Mike’s love for his business is refreshing! You rarely see a person that is so charged to get up for work every day! Richard Havass Mechanical Engineering Manager JCI-Sensormatic

Sulen Ojeda Fuentes

Esta fábrica está llena de muy buenos profesionales son una gran familia trabajadores de años con muy buena experiencia .lo recomiendo porque son un gran equipo. Y realizan muy buen trabajo.

Turret Punch Tool Library

How to Use This List

618 Standard Punches by Shape

Special Shapes and Forming Tools

The Complete Tool List

Send Us the Drawing

What Clients Say?

Email:

Tel:

Address:
